1
ACCESSORIES
1-4
D

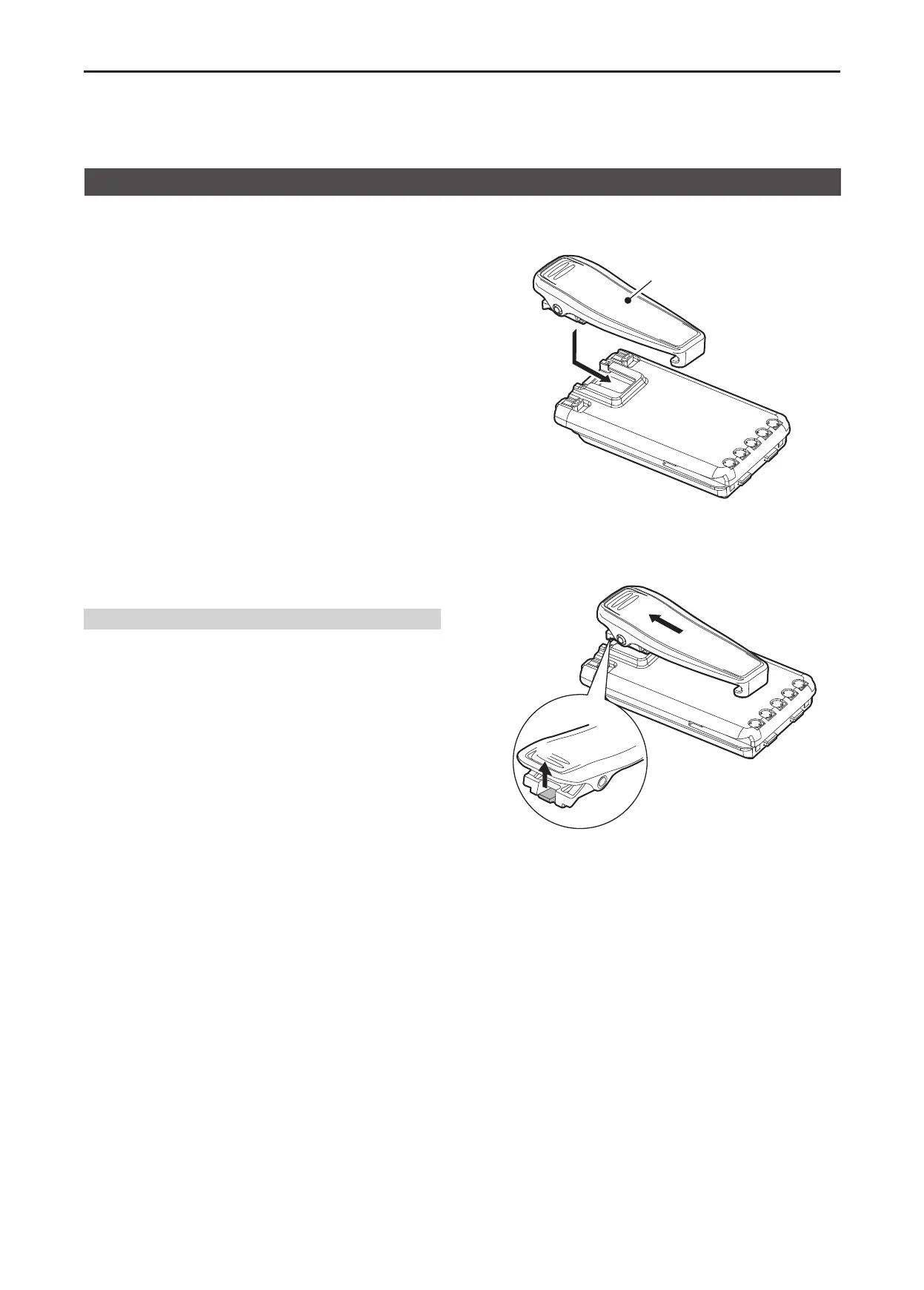

Belt clip
T
o attach:
1.
Remov
e the bat
ter
y pack fr
om the transc
eiver
, if it
is attache
d.
2.
Slide the b
elt clip in the dire
ctio
n of the arrow until
the belt c
lip is loc
k
ed and makes a ‘click
’ sound.
BE CAREFUL!
DO NOT
break your ngernail.
T
o detach:
Lift the tab up (
q
), and slide the belt clip in the
direction of the arrow (
w
).
Accessory attachments
Belt clip
q
w
5
7
Table of Contents
2 Section Preparation
8
Flexible Antenna
5
D Battery Pack
5
Table of Contents
8
Front, Top and Side Panels
9
D about the Status Indicator
9
D about the Multi-Connector
9
D about the Software Key Functions
9
Function Display
10
D Icon Area
10
D Text Area
11
D Key Display Area
11
Status Indicator
12
Assignable Software Key Functions
14
3 Section Basic Operation
21
Section 3 BASIC OPERATION
22
Turning on the Transceiver
22
D Turning on the Transceiver
22
D Adjusting the Audio Level
22
D Entering the Password
22
Selecting a Zone
23
D Selecting a Zone
23
Talk Around
23
Zone Select
23
Selecting a Channel
24
D Selecting an Operating Channel
24
D Selecting the Priority a or B Channel
24
D Rewriting the Priority a or B Channel
25
D Selecting a Continuous Tone Channel
25
D Selecting a RAN Channel
26
Call Procedure
27
Receiving and Transmitting
28
D Transmitting Notes
28
D Sending a Call to a Destination
29
Key Lock Function
30
4 Section Advanced Operation
31
DTMF Calls
32
D Autodial
32
D Stun Function
32
Section 4 ADVANCED OPERATION
32
Emergency Call
33
D Transmitting an Emergency Call
33
Radio Access Number (RAN)
37
Scrambler
37
Aquaquake™ Water Draining Function
38
5 Section Scan Operation
39
Section 5 SCAN OPERATION
40
Starting a Scan
40
Canceling a Scan
41
Selecting a Scan List
42
Setting or Clearing a Scan Tag
43
6 Section Menu Screen
44
Menu Screen Description
45
D Categories
45
D Using the Menu Screen
46
Section 6 MENU SCREEN
45
Channel/Scan
51
Signaling/Call
52
Functions
53
Trunking
53
Gps
54
Voice Rec
54
Audio Setting
55
Bluetooth
56
Sensor
57
Vibration
57
Display
58
Utility
59
Information
60
7 Section Nxdn™ Operation
61
NXDN™ System Operation
62
Section 7 NXDN™ OPERATION
62
Transmitting a Call
63
D Transmitting an Individual Call
63
D Transmitting a Group Call
64
D Transmitting a Status Message
65
D Transmitting a Message
66
D Directly Entering Message
67
D Transmitting a Call Alert Call
68
D Transmitting a Remote Monitor Call
68
D Transmitting a Radio Check
69
D Transmitting a Stun Command
69
D Transmitting a Revive Command
70
D Transmitting a Kill Command
70
D Transmitting an Emergency Call
71
D Transmitting Position Data
71
Receiving a Call
72
D Receiving an Individual Call
72
D Receiving a Group Call
72
D Receiving a Status Message
72
D Receiving a Message
72
D Receiving a Call Alert Call
72
D Receiving a Radio Check Call
72
D Receiving a Remote Monitor Call
72
D Receiving a Stun, Kill or Revive
73
D Receiving an Emergency Call
73
Roaming Function (for Multi-Site Trunking Operation)
74
D Roaming Request Function
74
Site Lock Function (for Multi-Site Trunking Operation)
75
Site Select Function (for Multi-Site Trunking Operation)
76
Incoming List
77
D Displaying the Incoming List
77
D Deleting the Incoming List
78
Outgoing List
79
D Displaying the Outgoing List
79
D Deleting the Outgoing List
79
Encryption Function
80
Over the Air Programming Function (OTAP)
81
8 Section MDC 1200 System Operation
82
Section 8 MDC 1200 SYSTEM OPERATION
83
Transmitting a Call
84
D Transmitting a PTT ID Call
84
D Transmitting an MDC Emergency Call
84
D Transmitting an MDC Emergency Acknowledgment
84
D Transmitting an MDC Selective Call (Sel Call)
85
D Transmitting an MDC Call Alert Call
85
D Transmitting an MDC Radio Check Call
86
D Transmitting an MDC Stun Call
86
D Transmitting an MDC Revive Call
87
D Transmitting an MDC Status Call
87
D Transmitting an MDC Message Call
88
Receiving a Call
89
D Receiving a PTT ID Call
89
D Receiving an MDC Emergency Call
89
D Receiving an MDC Selective Call
89
(Sel Call)
89
D Receiving an MDC Call Alert Call
89
D Receiving an MDC Stun, Kill, or
90
Revive Call
90
D Receiving an MDC Status Call
90
D Receiving an MDC Message Call
90
Incoming Call Log Function
91
D Checking the Incoming Call Log
91
9 Section Biis 1200 System Operation
92
Section 9 BIIS 1200 SYSTEM OPERATION
93
Transmitting a Call
94
D Transmitting an Individual Call
94
D Transmitting a Group Call
94
D Transmitting a Status Message
95
D Directly Entering Message
97
D Transmitting an Emergency Call
98
D Transmitting Position Data
98
Receiving a Call
99
D Receiving an Individual Call
99
D Receiving a Group Call
99
D Receiving a Status Message
99
D Receiving a Message
99
D Receiving an Emergency Call
99
Incoming List
100
D Displaying the Incoming List
100
D Deleting the Incoming List
101
11 Section Bluetooth®Operation
105
Bluetooth ® OPERATION
106
Bluetooth ® Wireless Technology Operation
106
D Electromagnetic Interference
106
Turning on the Bluetooth ® Function
107
Headset Settings
110
D about the VS-3 Headset
110
Accepting a Pairing Request from a Bluetooth ® Device
111
Disconnecting from a Bluetooth ® Device
113
Deleting a Bluetooth ® Device from the Pairing List
114
Resetting the Installed Bluetooth ® Unit
115
The Maximum Number of Paired Devices
116
Section 13 OPTIONS
122
D Attaching
122
Speaker Microphone
122
Belt Clip
123
D MB-136 Contents
123
D Attaching
123
D Detaching
