Page 32 Operation Manual
A.10 Book Cradles
The Bookeye
®
4 V1A scanner has a motorized book cradle which can be operated in two
modes.
Either in flat position …

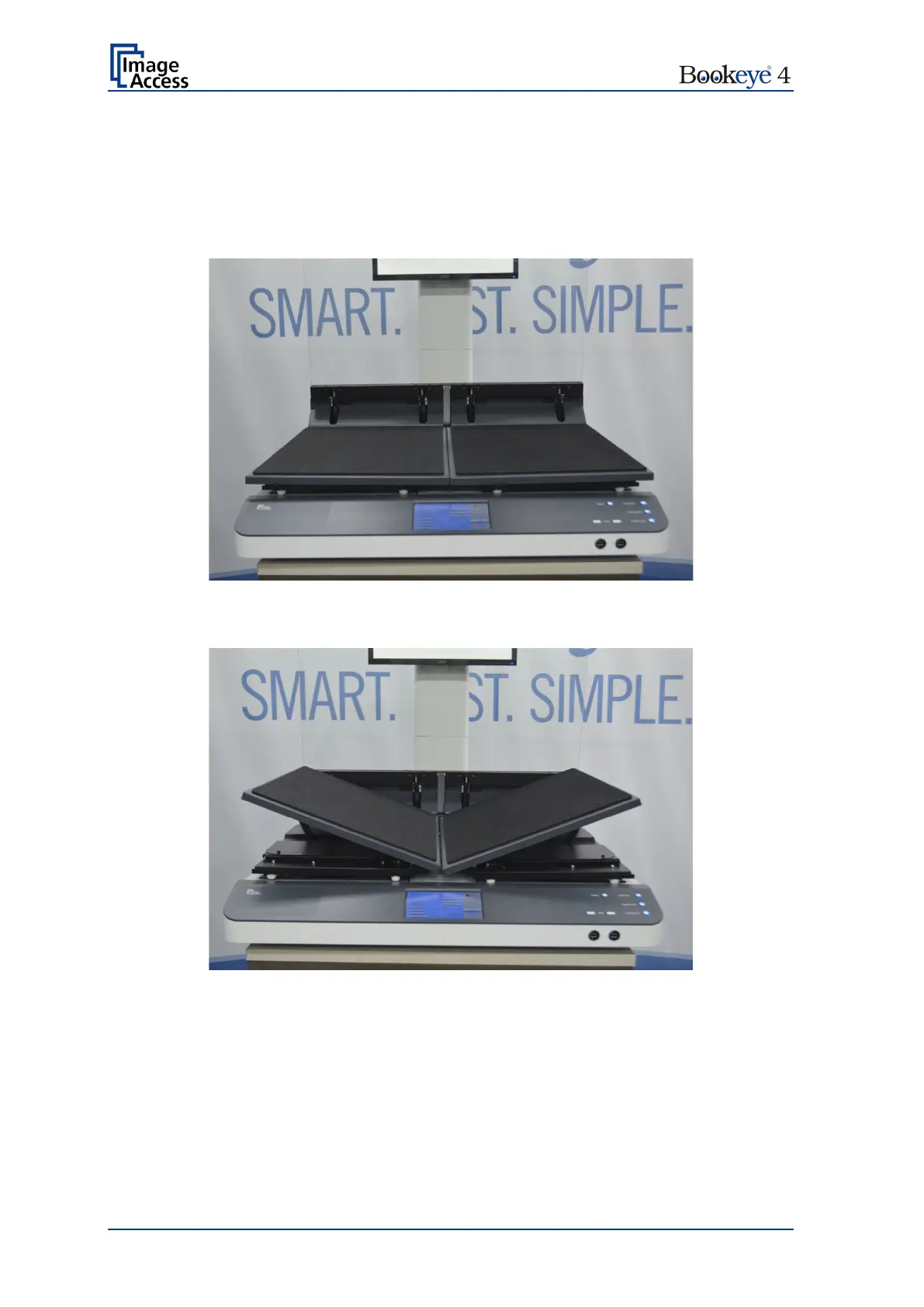

Picture 5: Book cradles in flat mode and closed
… or in V position.
Picture 6: Book cradles in V mode and closed
The V position is recommended for very delicate, old documents. The opening angle
between the book cradle plates is 140 degrees.
When the book cradles are lifted to the “V” position, they are held by a supporting leg on
each side.
In the “V” position the plates can also be shifted horizontally from each other.
