A.13.4 Working with the Book Cradle Plates
The book cradles can be moved up and down by using the Cradle Up and Cradle Down
buttons.
Place the document, e.g. a book, on the cradle plates and open the cradle plates until the
book spine can freely move between the book cradle plates.

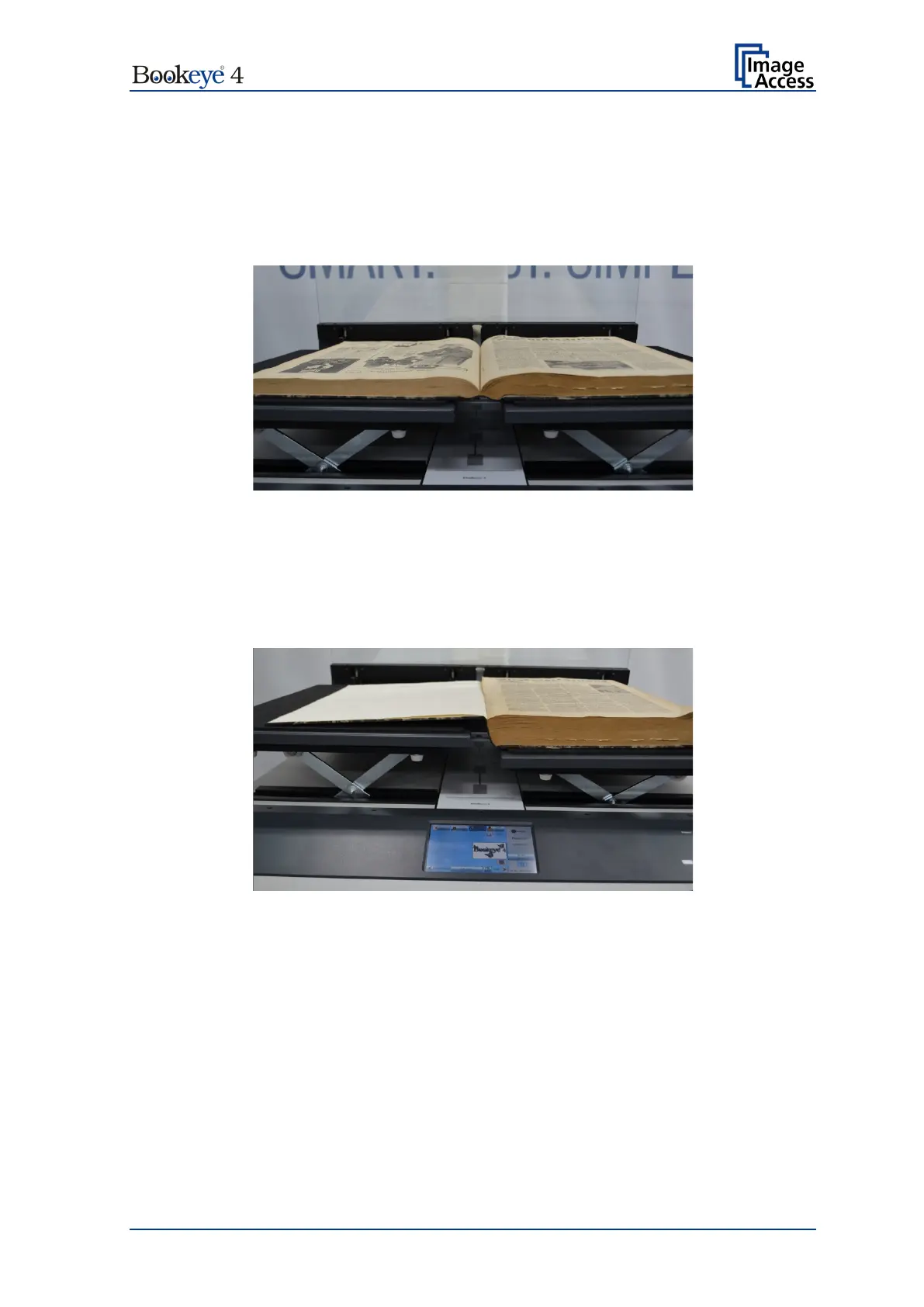

Picture 16: Book cradle plates opened
When setting the height of the book cradle plates, the target is to have both sides of the
book on nearly the same height before closing the glass plate. Picture 16 shows an
example.
If the height between the left and the right side differs (see Picture 17), the height of the
book cradle plates can be moved manually.
Picture 17: Book prepositioned at book cradle
The plates of the book cradle move simultaneously in opposite directions. That means, if
one plate is lowered, then the other plate lifts automatically.
