Operation Manual Page 41
If necessary, move the cradle plates up or down in small steps with the control buttons to
optimize the document’s position below the glass plate.

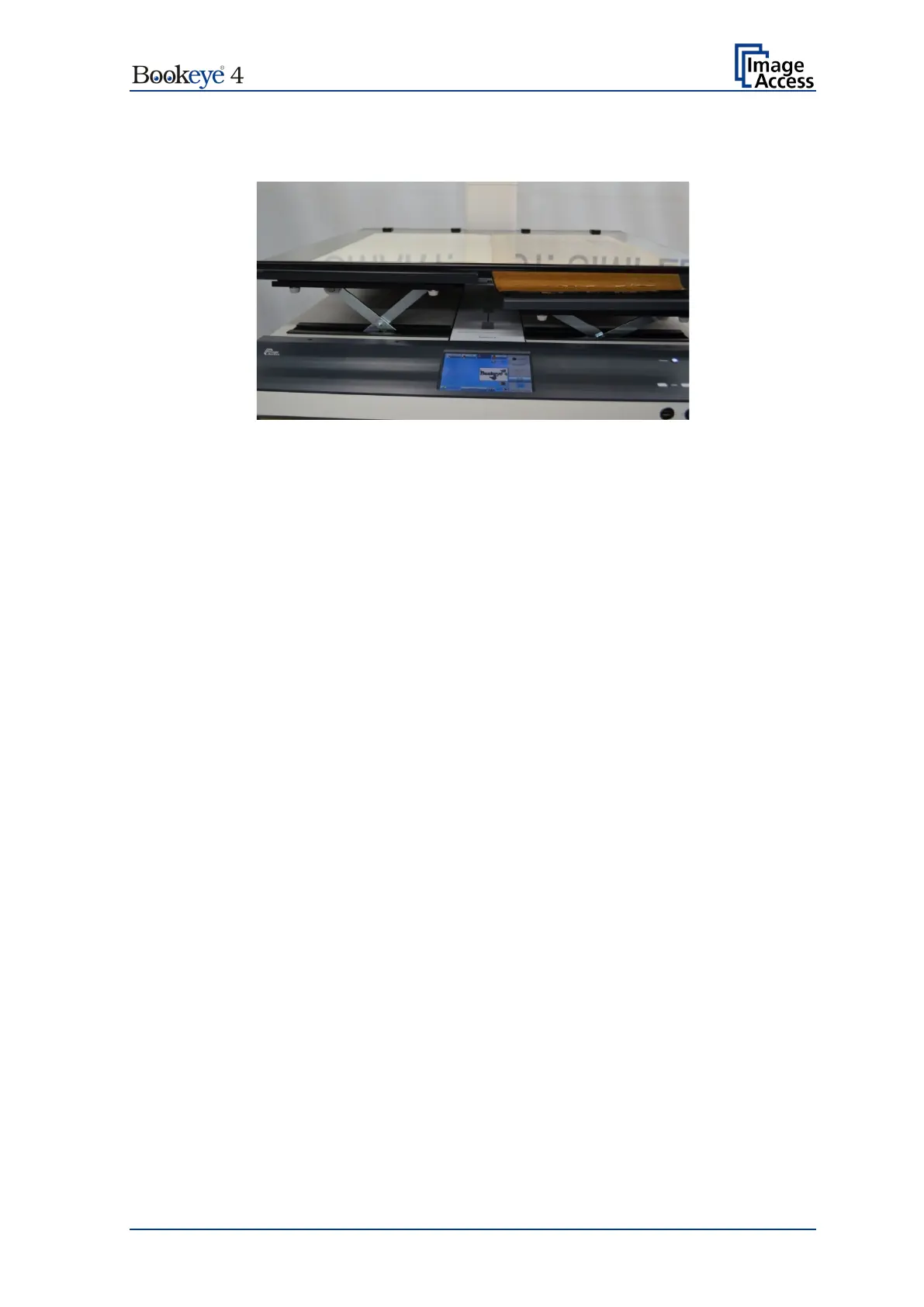

Picture 19: Glass plate closed
The cradle lock has a limited force for security reasons.
After successfully adjusting the book cradle height and the appropriate pressure, the
cradles support the weight of the book. The cradle plates can now be rocked up and down
without the motor being involved.
While scanning, the glass plate holds the same pressure on the book with respect to the
glass plate, keeps the book height at the same level, and keeps the same distance
between the book and the camera.
Touch the Scan Now button on the touchscreen to start the scan sequence.
After scanning, the glass plate lock releases and the glass plate opens. It can be stopped
by the operator in the 45 degree position.
The only interaction necessary while scanning through the book is applying light manual
pressure on one of the book sides to keep it in equal distance to the glass plate. This is
not always required because when the glass plate is closed for the next scan, the cradle
plates move automatically to a proper position.
