Page 42 Manual
A.19.1.3 FTP Server
The Ftp Server button enables the user to enter all necessary information for data
transfer to a dedicated FTP server.
The parameters are entered in two screens named Ftp Server 1 and Ftp Server 2.
Ftp Server 1
This screen contains the server IP address and the port, the user name and the password
for the server access. Additionally a path to an existing directory on the FTP server where
the files should be stored can be entered.

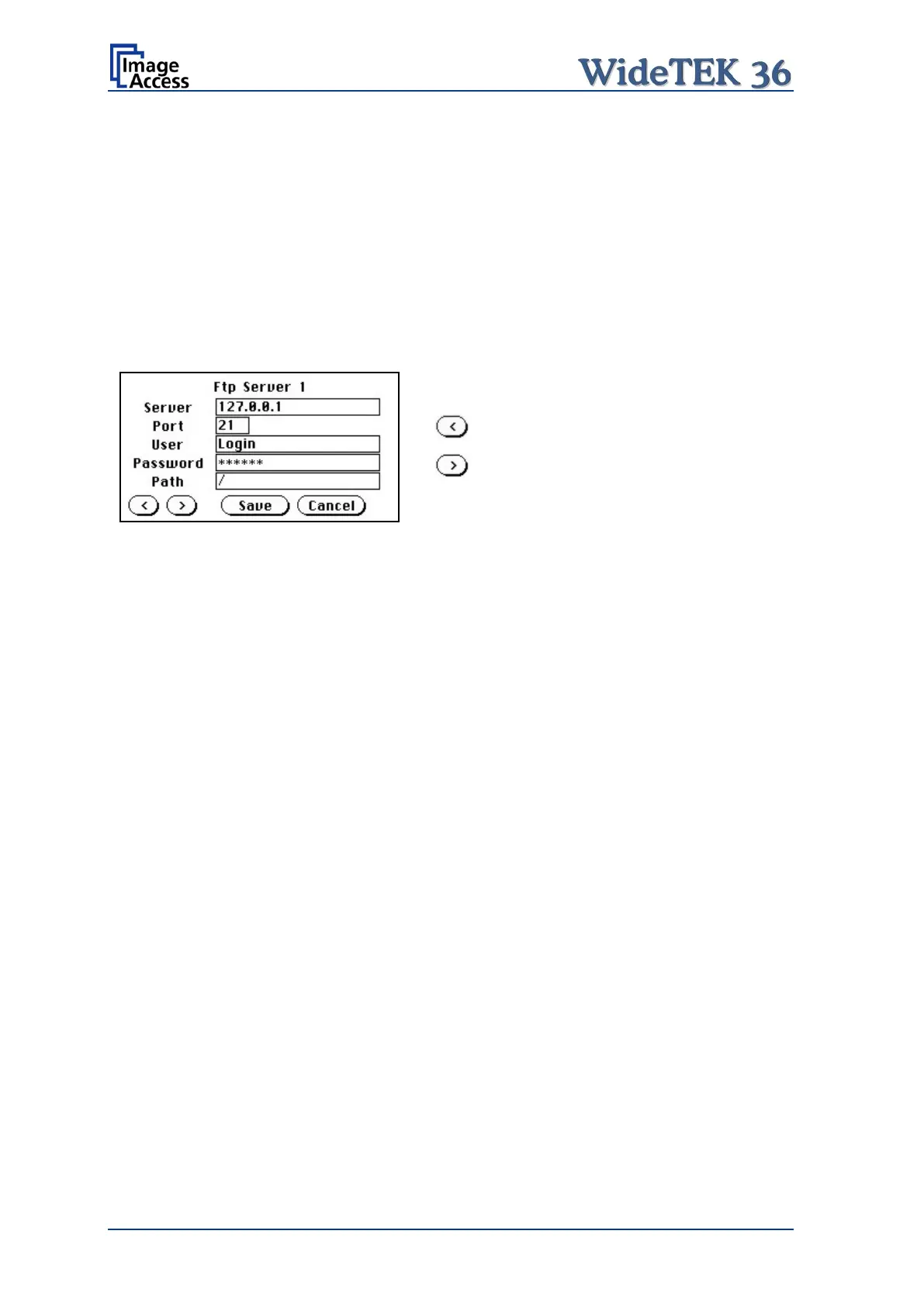

Picture 40: Ftp Server 1
Returns to the previous screen.
Changes to the Ftp Server 2 screen.
Note: The IP address 127.0.0.1 (as shown in the above picture) does not represent a
real existing FTP server. This IP address is typically used in networks to make
the own system, the so-called “localhost”, available for TCP/IP applications.
