A.21 Format Control Screen
The parameters are set in three screens; Format Control 1 to Format Control 3.
To switch between these two screens use the buttons and .
A.21.1 Format Control 1

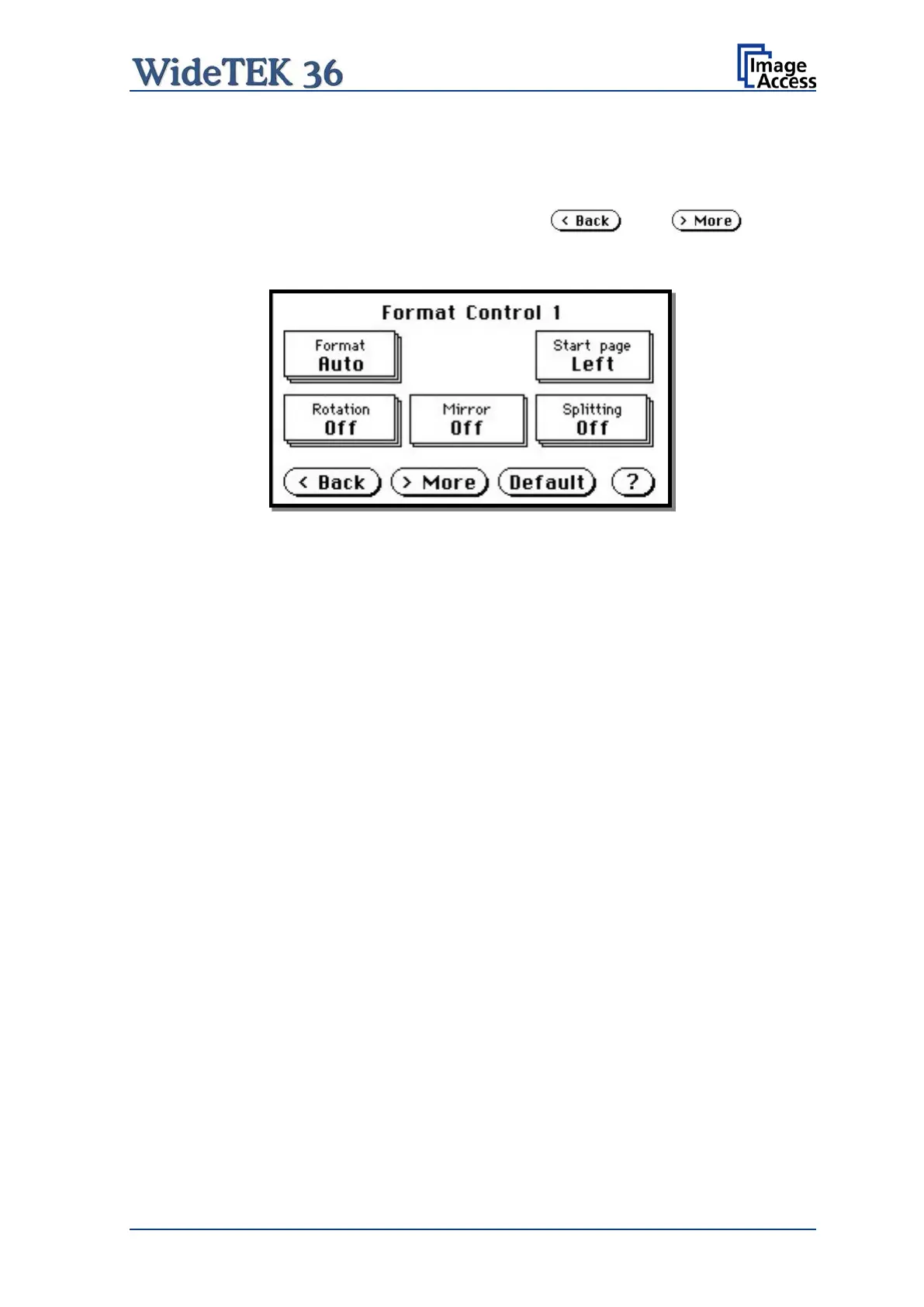

Picture 49: Format Control 1
A.21.1.1 Format
This control specifies the format of the document. In most cases the setting Auto should
be selected.
The format list includes the well-known DIN A formats as well as US ANSI formats, e.g.
Letter or US C. Some formats are specified with an additional L(etter) or P(ortrait).
A.21.1.2 Start Page
This defines the start page if Splitting is activated.
A.21.1.3 Rotation
The value set here defines the rotation of the image in a clockwise direction after
scanning.
A.21.1.4 Mirror
This control activates the horizontal mirroring of the image. It can be useful if scanning a
transparency or a blueprint from the back side.
A.21.1.5 Splitting
The following options are valid:
• Left / Right: The image is taken from the left side / the right side of the specified
area.
• Auto: Divides the specified scan area symmetrically into two sides and sends
the images consecutively. The second image will be sent without
scanning the document again. The start is defined in Start Page (see
chapter A.21.1.2).
