Intel® Server Board S2600CO Family TPS Power Supply Specification Guidelines
Revision 1.0
Intel order number G42278-002
113

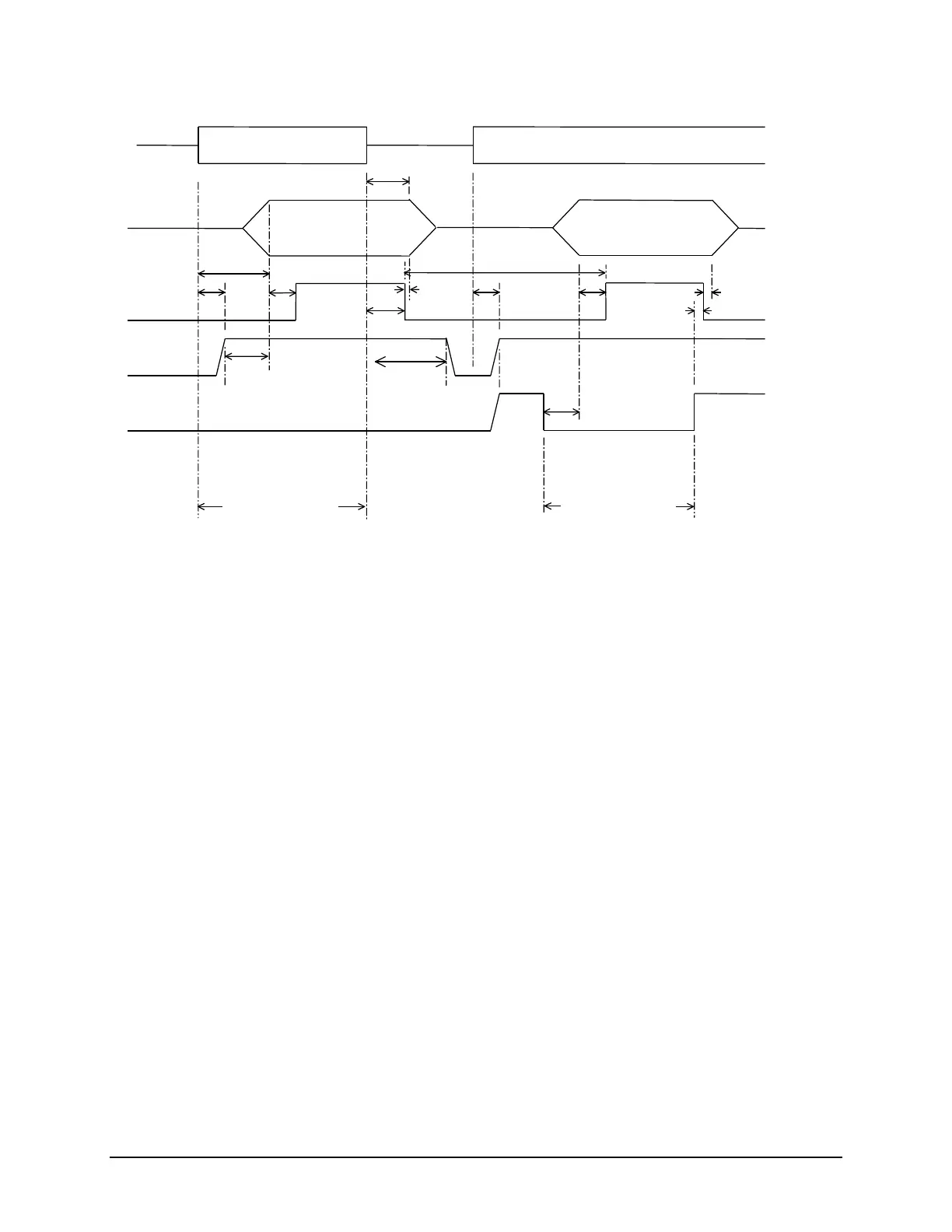

Figure 28. Turn On/Off Timing (Power Supply Signals)
AC Input
Vout
PWOK
5VSB
PSON
T
sb_on_delay
T
AC_on_delay
T
pwok_on
T
vout_holdup
T
pwok_holdup
T
pson_on_delay
T
sb_on_delay
T
pwok_on
T
pwok_off
T
pwok_off
T
pson_pwok
T
pwok_low
T
sb_vout
AC turn on/off cycle
PSON turn on/off cycle
T
5VSB_holdup
