Functional Architecture Overview Intel® Server Board S2600CO Family TPS
34 Revision 1.0
Intel order number G42278-002
3.3 Intel
®
C600-A Chipset Functional Overview
The following sub-sections will provide an overview of the key features and functions of the
Intel
®
C600-A chipset used on the server board. For more comprehensive chipset specific
information, refer to the Intel
®
C600 Series chipset documents listed in the Reference Document
list.
Intel® C600
Series Chipset
Integrated
BMC
LPC (33MHz)
USB 2.0 (480Mbs)
SMBUS PORTS
USB 2.0
Zepher
Connector
TPM
Connector
SATA
4 USB 2.0 EXT
SCU SATA/SAS
(3GB/s)
USB 2.0
2 USB 2.0 INT
PCIe Gen1 x1
DRAM
DRAM
8MB BIOS
SPI Flash
SCU[7:4]
USB2.0
SCU[3:0] P[5:2] P[1:0]
LHSRHS
USB2.0
Type-A
Internal
Connector
USB[7,6,5,1]
USB[13,11]
USB[0]
USB[2]
USB 1.1 (12Mbs)
USB[10]
USB[3]
SATA/SAS
Slot 1 x8 Conn
PCIe Gen1 x1
1394b INT
1394b INT
LSI
FW643E-02
11x11
3port 1394b
PCIe Gen2 x4 (4GB/s)
SATA
SATA/SAS
AHCI SATA
(6GB/s)
SATA/SAS
SATA/SAS
SATA/SAS
SATA/SAS
SATA/SAS
SATA/SAS
4 SATA 3G
Upgradable to
8 SATA/SAS 3G

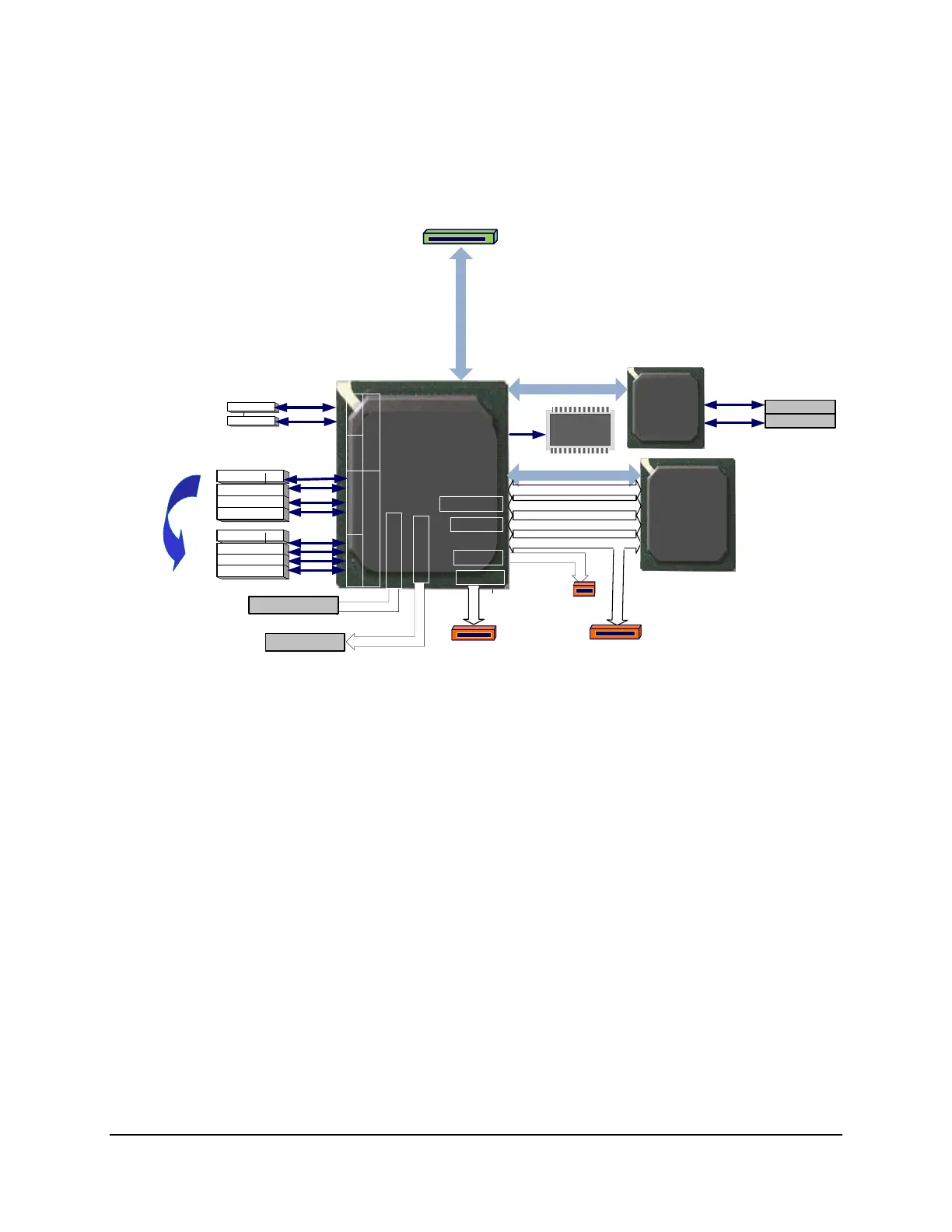

Figure 15. Functional Block Diagram - Chipset Supported Features and Functions
On the Intel
®
Server Boards S2600CO, the chipset provides support for the following on-board
functions:
 Low Pin Count (LPC) interface
 Serial Peripheral Interface (SPI)
 Universal Serial Bus (USB) Controller
 Serial Attached SCSI (SAS)/Serial ATA (SATA) Support
 Manageability Features
3.3.1 Low Pin Count (LPC) Interface
The chipset implements an LPC Interface as described in the LPC 1.1Specification and
provides support for up to two Master/DMI devices. On the server board, the LPC interface is
utilized as an interconnect between the chipset and the Integrated Base Board Management
Controller (IBMC) as well as providing support for the optional Trusted Platform Module (TMP).
