Intel® Server Board S2600CO Family TPS Product Overview
Revision 1.0 5
Intel order number G42278-002

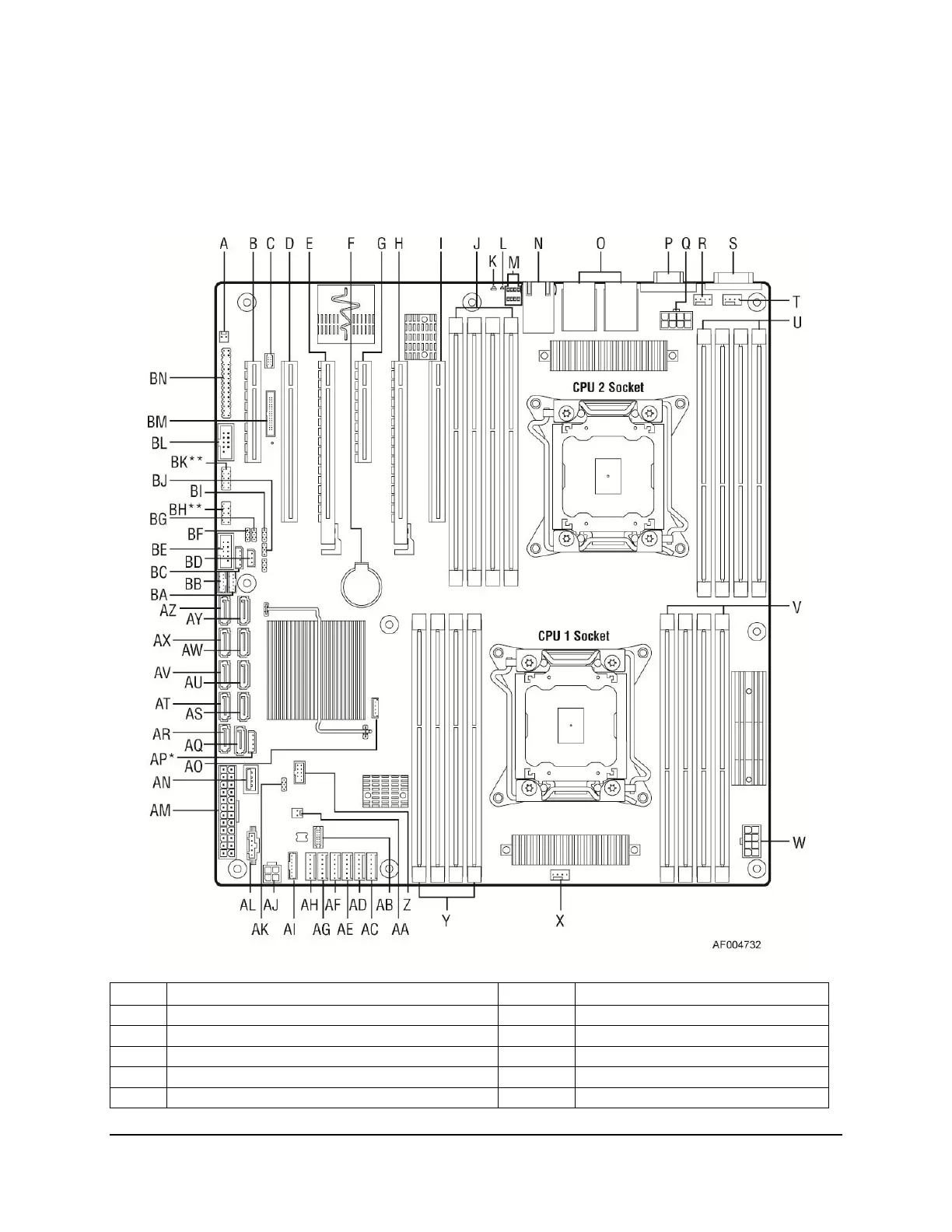

2.1 Server Board Connector and Component Layout
The following illustrations provide a general overview of the server board, identifying key feature
and component locations. Each connector and major component is identified by a number or
letter, and the description is given below the figure.
Callout
Description
Callout
Description
A
Chassis Intrusion
AH
System Fan 1 Connector
B
Slot1, PCI Express* Gen2
AI
LCP
C
RMM4 Lite
AJ
Optional 12V Power Connector
D
Slot 2, PCI Express* Gen3
AK
BIOS Default
E
Slot 3, PCI Express* Gen3
AL
SMB_PMBUS
