Intel S2600CO Family User Manual

Intel® Server Board S2600CO Family TPS Functional Architecture Overview
Revision 1.0 21
Intel order number G42278-002
The Intel
®
QuickPath Interconnect includes a cache coherency protocol to keep the distributed
memory and caching structures coherent during system operation. It supports both low-latency
source snooping and a scalable home snoop behavior. The coherency protocol provides for
direct cache-to-cache transfers for optimal latency.
3.2.2 Integrated Memory Controller (IMC) and Memory Subsystem
Intel® Xeon®
E5-2600
CPU 1
DDR3 MEMORY
2 DIMMs/channel
CHANNEL 0
Intel® Xeon®
E5-2600
CPU2
CHANNEL 1
CHANNEL 2
CHANNEL 3
CHANNEL 0
CHANNEL 1
CHANNEL 2
CHANNEL 3
DDR3 MEMORY
2 DIMMs/channel
QPI
QPI
P2 P1P3P0
IOU0 IOU2IOU1
P1
P3
P2P0
IOU2
IOU1
IOU0

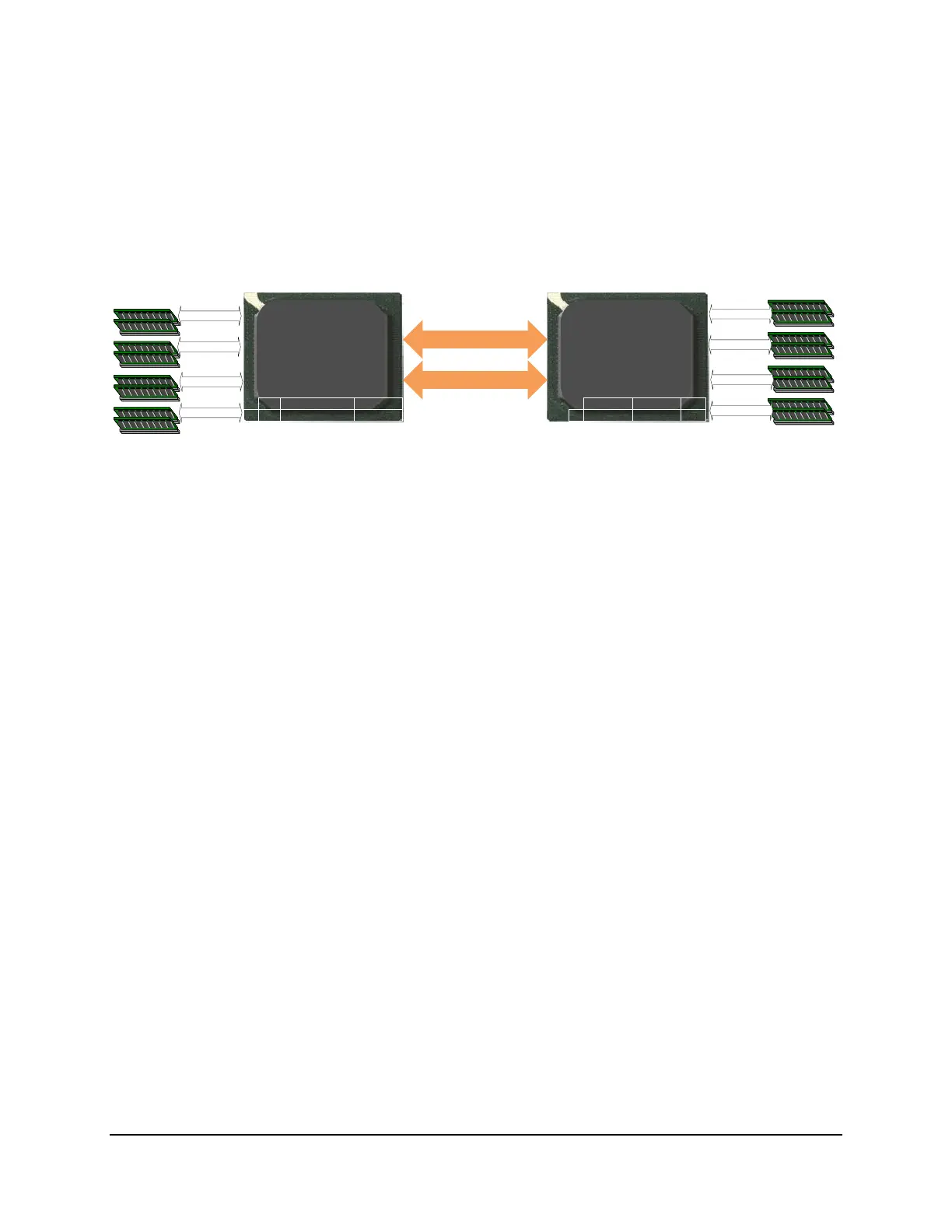

Figure 12. Integrated Memory Controller Functional Block Diagram
Integrated into the processor is a memory controller. Each processor provides four DDR3
channels that support the following:
 Unbuffered DDR3 and registered DDR3 DIMMs
 LR DIMM (Load Reduced DIMM) for buffered memory solutions demanding higher
capacity memory subsystems
 Independent channel mode or lockstep mode
 Data burst length of eight cycles for all memory organization modes
 Memory DDR3 data transfer rates of 800, 1066, 1333, and 1600 MT/s
 64-bit wide channels plus 8-bits of ECC support for each channel
 DDR3 standard I/O Voltage of 1.5 V and DDR3 Low Voltage of 1.35 V
 1-Gb, 2-Gb, and 4-Gb DDR3 DRAM technologies supported for these devices:
o UDIMM DDR3 – SR x8 and x16 data widths, DR – x8 data width
o RDIMM DDR3 – SR,DR, and QR – x4 and x8 data widths
o LRDIMM DDR3 – QR – x4 and x8 data widths with direct map or with rank
multiplication
 Up to 8 ranks supported per memory channel, 1, 2 or 4 ranks per DIMM
 Open with adaptive idle page close timer or closed page policy
 Per channel memory test and initialization engine can initialize DRAM to all logical zeros
with valid ECC (with or without data scrambler) or a predefined test pattern
 Isochronous access support for Quality of Service (QoS)
 Minimum memory configuration: independent channel support with 1 DIMM populated
 Integrated dual SMBus master controllers
 Command launch modes of 1n/2n
 RAS Support:
o Rank Level Sparing and Device Tagging
