XP7202 Instruction Manual
Pitch Curve
Adjusting the Normal Pitch Curve
The XP7202 offers four independent pitch curves each,
with up to five adjustable points. This function allocates
a separate pitch curve setting during normal, stunt 1,
stunt 2 and hold modes to maximize flight performance.
Once the pitch curves are adjusted, each can be activated
in flight using the three-position flight mode and throttle
hold switches. Each of the five points of the pitch curve
are independently adjustable from 0–100%. These five
points correspond to low, 25%, mid, 75% and high stick
positions. See Page 89 for more details on setting up
pitch curves.
With the power off, turn the transmitter on then press the
clear key to enter the main menu.
Press the Down and Select keys simultaneously to
enter the function mode.
Press the UP or Down key until PITCH CURVE NORM
appears on screen.
Press the Select key to select the stick position that you
wish to adjust the pitch.
L= Low
1= 25%
appears on screen.
2= 50%
3= 75%
H= High
Press the IncreaSe or DecreaSe keys to adjust the
pitch value of the selected pitch position.
Recommended Initial pitch settings
L= -4º
2= 5º
H= 9º

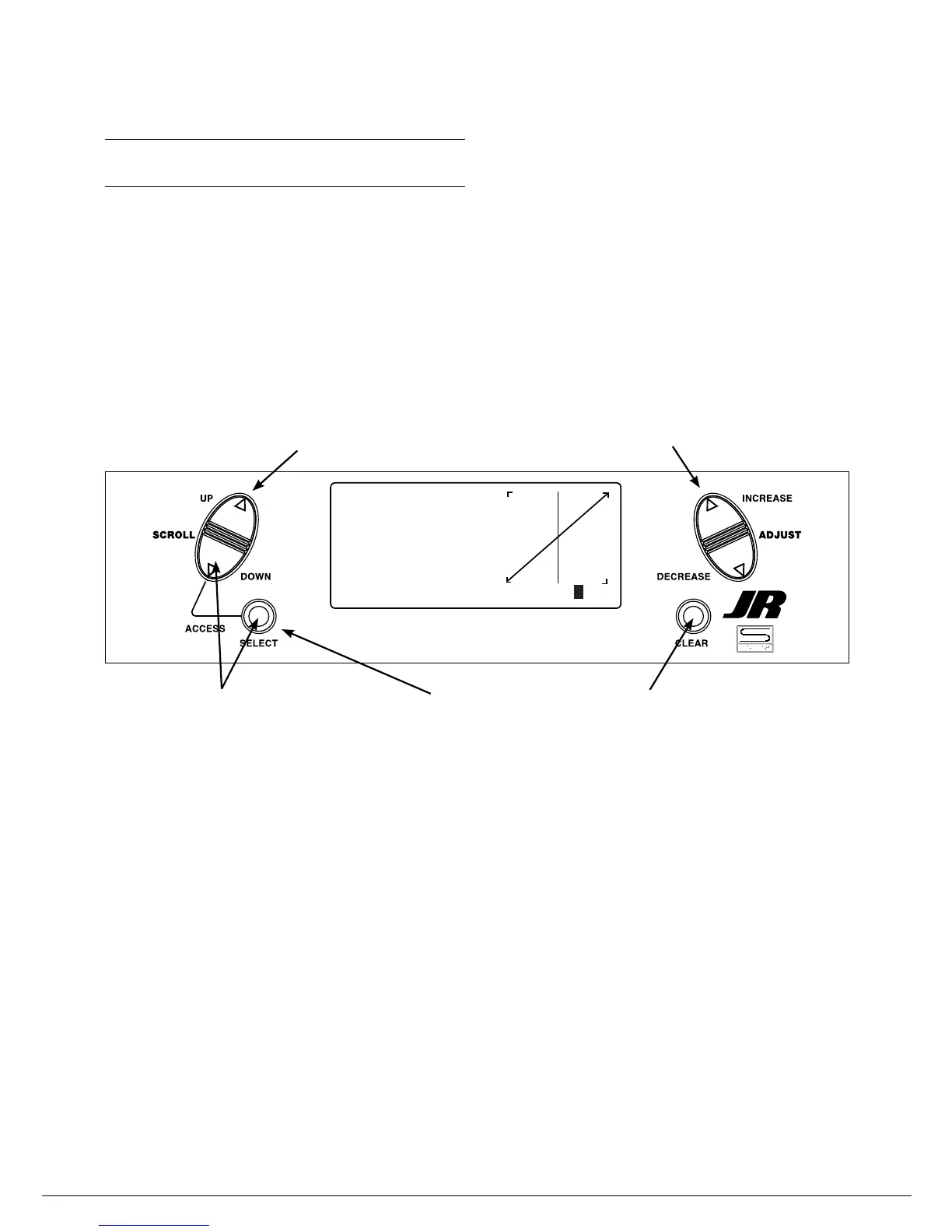

Press and hold to enter Function Mode
Use to select
PITCH CURVE NORM
Use to change value of
selected stick position
Press to enter main menu
Use to select stick position
Press the Select key to select the desired channel then press the IncreaSe or DecreaSe key while holding the
stick or switch in the desired direction that you wish to adjust the servo travel.
