The Dual Rate function allows two control rates (control
throws) to be programmed and selected with a switch.
Dual rates are available on the aileron, elevator and
rudder channels. Changing the dual rate value not only
affects the maximum control authority but also affects
the overall sensitivity of control. A higher rate yields a
higher overall sensitivity. The sensitivity around center
can be tailored using the Exponential function to precisely
adjust control feel.
Dual rates can be controlled by their respective dual rate
switches (aileron, elevator and rudder) or by 1 common sw
(COM AILE, COM ELEV, COM RUDD, FLAP0 or FLAP2).
The choices for this are found on the D/R SWITCH SEL
screen in the System Set-up Mode for Airplanes.
Dual rates are available for the aileron, elevator and
rudder channels. Dual rate values are adjustable from
0-125%. The factory default settings for both the 0 and 1
switch positions are 100%. Either switch position may be
selected as the low or high rate by placing the switch in
the desired position and adjusting the value accordingly.
Section 6.2: Function Mode Functions
Dual Rate & Exponential
To Adjust the Dual Rate

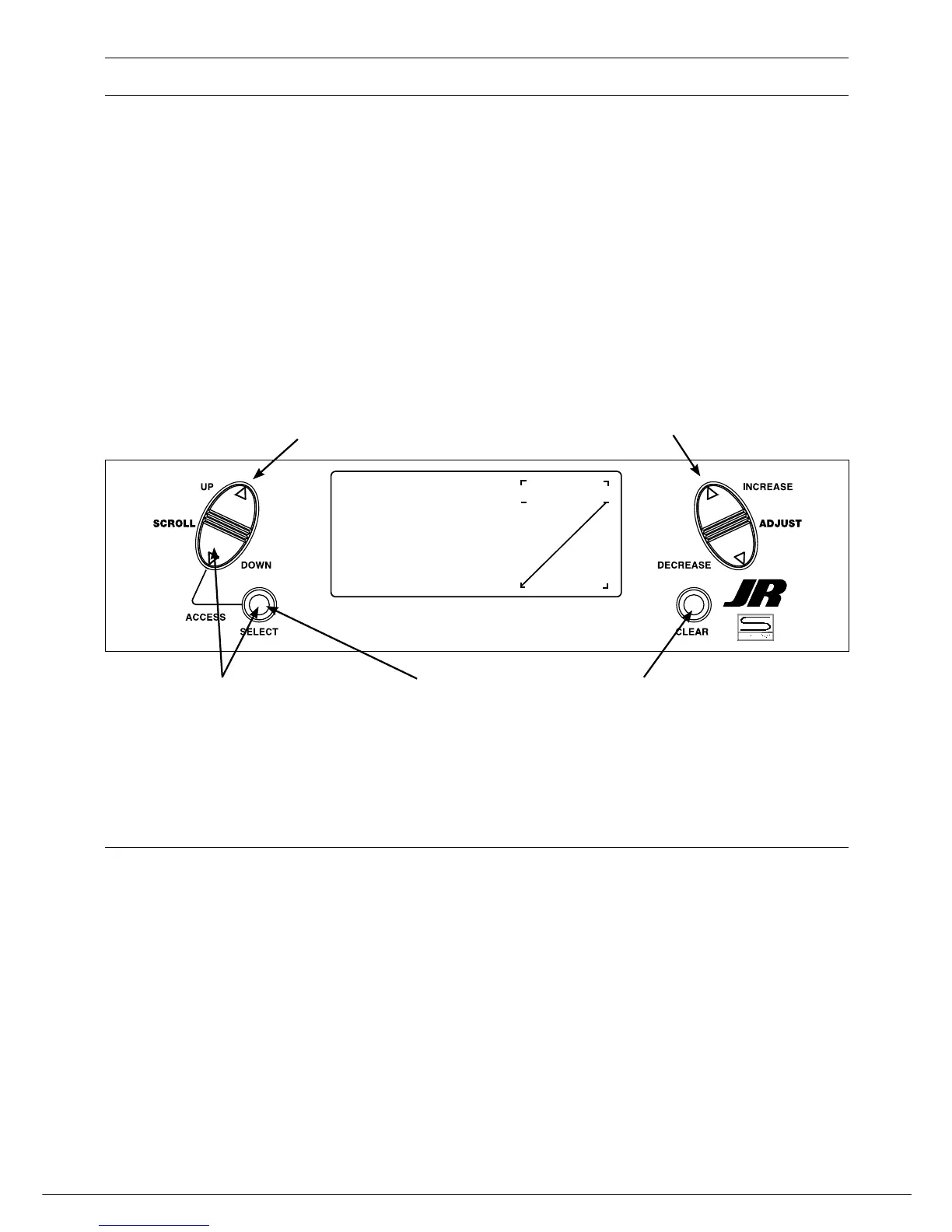

Press the Down and Select keys simultaneously to
access the Function Mode
In Function Mode, use the UP or Down keys to select
the D/R & EXP screen.
Press the IncreaSe or DecreaSe key to select the
desired channel (AILE, ELEV or RUDD).
Press the Select key to highlight the D/R function
Adjust the dual rate values for the selected switch position
using the IncreaSe or DecreaSe keys.
The Dual Rate and Expo functions for aileron, elevator and
rudder can be combined on a single switch conveniently
allowing high or low rates to be selected Via one switch
(COM AILE, COM ELEV, COM RUDD, FLAP0 or FLAP2).
The choices for this are found on the D/R SWITCH SEL
screen in the System Setup Mode for Airplanes.
To Next Page
