55
XP7202 Instruction Manual
The XP7202 offers six (6) programmable mixes that allow
stick or switch inputs to control the output of two or more
servos. This function allows mixing any one channel to
any other channel or the ability to mix a channel to itself.
The mix can remain ON at all times, or it can be switched
OFF in flight, using a number of different switches. Mix
values are adjustable from 0 to 125%. Each channel is
identified by a four-character name (i.e., Aileron - AILE,
Elevator - ELEV, etc.). The channel appearing first is the
master channel. The second channel is the slave channel.
For example, AILE - RUDD would indicate aileron to
rudder mixing. Each time the aileron stick is moved, the
aileron will deflect, and the rudder will automatically
move in the direction and to the position based on the
value input in the programmable mix screen. Mixing
is proportional, so small inputs of the master channel
will produce small outputs of the slave channel. Each
programmable mix has a mixing offset. The purpose of the
mixing offset is to redefine the neutral position of the slave
channel.
NOTE: programmable mix 5 and 6 have a built
in trim include function. If programmable mix 5 or 6
is selected and a master channel is selected that
has a trim lever (ie. aileron, elevator rudder or
throttle) the trim will operate both the master and
the slave channel.
ON: Mixing Always On
MIX: Mixing Switch Toward Self
Flap 0: Flap Switch in Flap 0 Position
Flap 2: Flap Switch in Flap 2 Position
Programmable Mixing 1-6
Assigning Channels

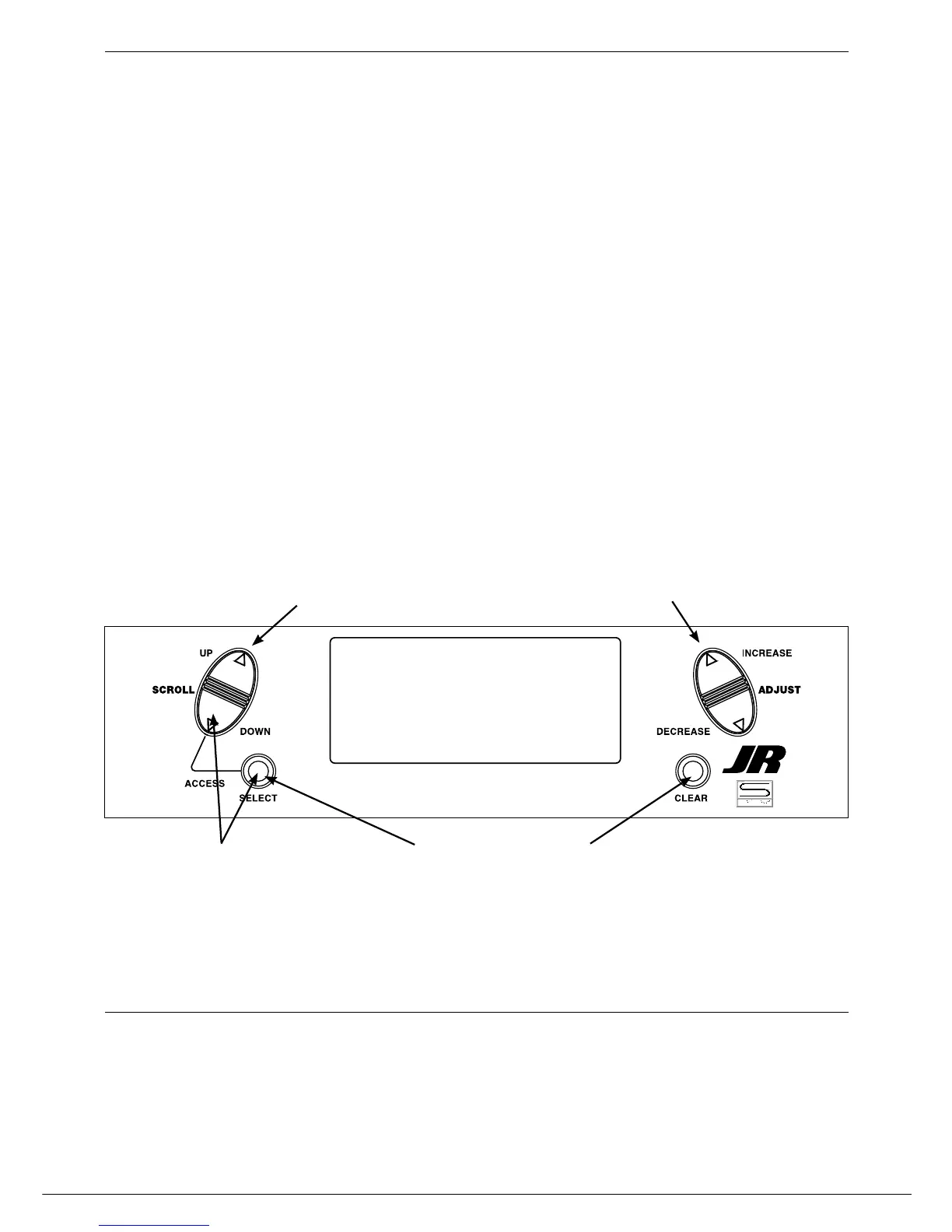

Press the Down and Select keys simultaneously to
access the Function Mode.
In Function Mode, use the UP or Down keys to select
the desired PROG. MIX screen. (1-6)
Press the IncreaSe or DecreaSe keys to select the
desired master channel.
Press the Select key to highlight the slave channel.
Press the IncreaSe or DecreaSe keys to select the
desired slave channel.
