XP7202 Instruction Manual
The Aileron-to-Rudder Mixing function is designed so that
when input to the aileron stick is given, the rudder servo
will also move, eliminating the need to coordinate these
controls manually. This mixing program can be turned
ON/OFF by a switch. The switches that can be selected
are shown on the chart at right, with their abbreviations as
they appear on the screen and the corresponding switch
positions. Mix values are adjustable from 0 to 125%.
When adjusting the mix value, if an opposite mixing
direction of the rudder servo is required, simply press the
IncreaSe
or DecreaSe key and change the mixing
value from + to - or - to +. This will reverse the mixing
direction of the rudder from its original direction.
ON: Mixing Always ON
MIX Switch ON/OFF Using Mixing Switch
Flap 0 Switch ON/OFF Using Flap Mix Position 0
Flap 2 Switch ON/OFF Using Flap Mix Position 2
Aileron-to-Rudder Mixing
To Access the Aileron-to-Rudder Mix Function

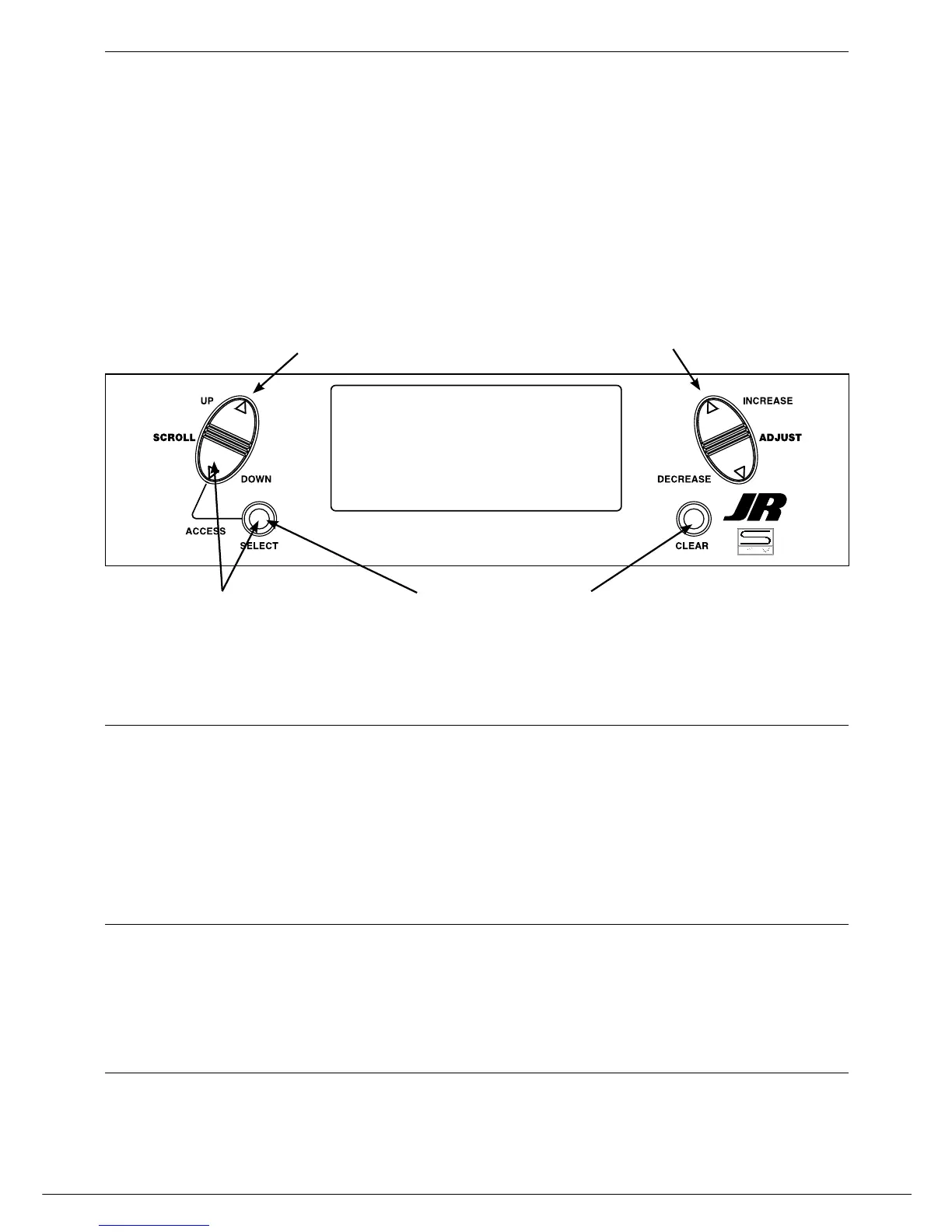

Press the Down and Select keys simultaneously to
access the Function Mode
In Function Mode, use the UP or Down key to select the
AILE-RUDD MIX screen.
Press to enter
Function Mode
Press to enter AILE-RUDD MIX
Press to adjust value
Press to highlight
RATE or SW
Press to return
value to default
To Adjust the Mix Value
To Assign a Switch
Press the Select key to highlight RATE or SW (switch)
With RATE highlighted, press the IncreaSe or
DecreaSe
keys to adjust the mix value.
NOTE
: To reverse mix directions, a negative mix
value is accessible.
With SW highlighted, press the IncreaSe or
DecreaSe
keys to select the desired switch used to turn
on/off the mix.
