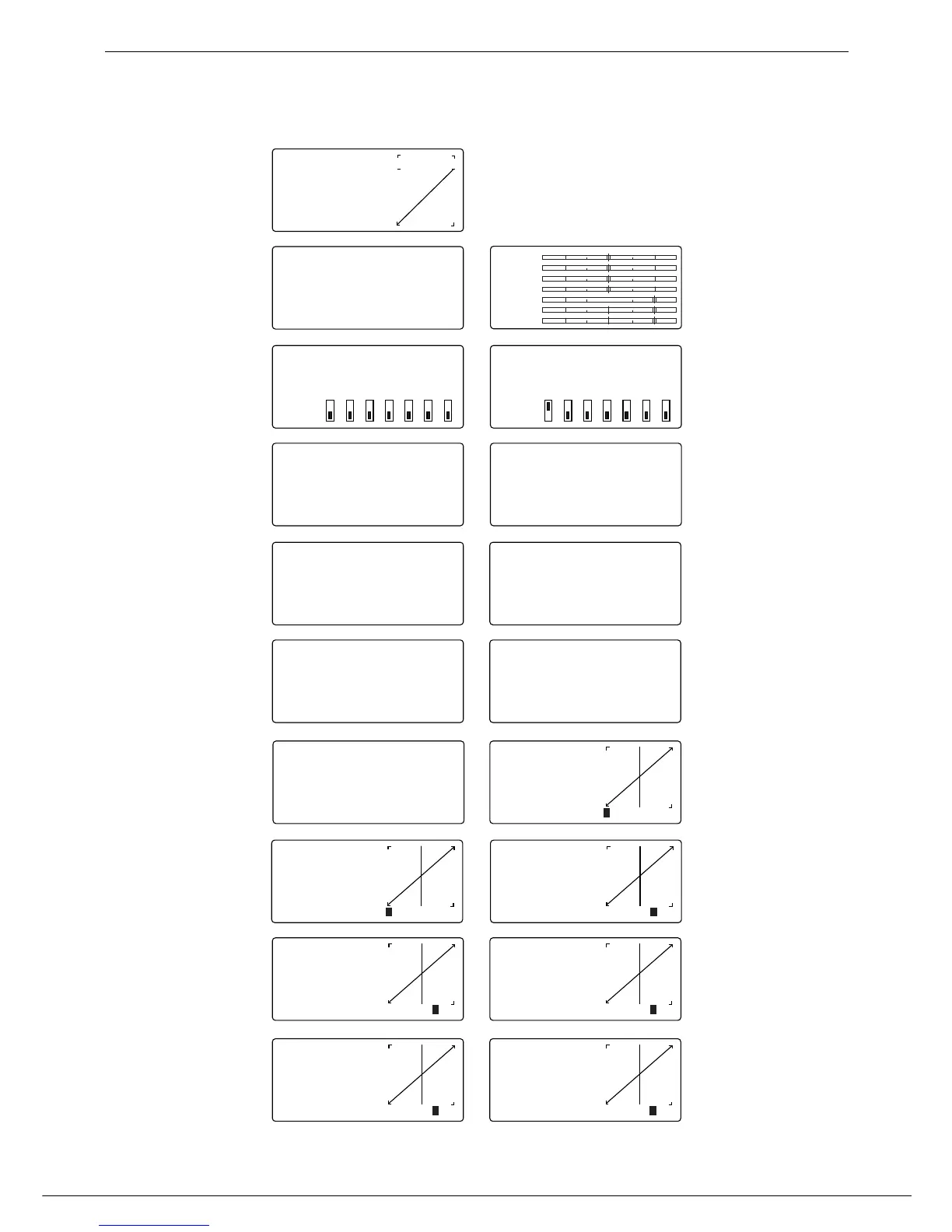

76
XP7202 Instruction
Manual
Function
Mode
Flowchart
Includes programming
functions
that
are more
frequently
used. Function
Mode
programming
functions include:
[AUTO D/R EXP]
◊NORM INH
ST-1 INH
ST-2 INH
[D/R & EXP]
POS-0
◊AILE
D/R 100%
EXP LIN
≥OUTPUT
[SUB TRIM]
≥THRO AILE
0 0
0 0
ELEV RUDD
[REVERSING SW]
NORM
GEAR
≤
ch 1 2 3 4 5 6 7
REV.
[SWASH MIX]
3 SERVO
120˚
EXP INH
≥AILE + 60%
ELEV + 60%
PIT. + 60%
[TRAVEL ADJUST]
THRO
≥H 100%
L 100%
ELEV
D 100%
U 100%
AILE
L 100%
R 100%
RUDD
L 100%
R 100%
THRO
AILE
ELEV
RUDD
GEAR
FLAP
AUX2
[PROG.MIX1]
◊THRO≥ THRO ON
RATE: 0%
0%
SW:ON
OFFSET: 0
[FAIL SAFE] POS.-170
HOLD
THRO
≤
ch 1 2 3 4 5 6 7
F.S.
[REVO MIX]
NORM STNT
◊UP 0%
DN 0%
UP 0%
DN 0%
[GYRO SENS]
◊RUDD
RATE:
0: 50%
1: 50%
[THRO HOLD]
HOLD POS.
ACT
OFF
- 5.0%
[THRO CURVE]
ST-1
≥Point-3
51
51
INH
1
2
3
H
L
IN
OUT
[THRO CURVE]
NORM
≥Point-L
51
51
0.0%
1
2
3
H
L
IN
OUT
[PITCH CURVE]
HOLD
≥Point-L
49
49
0.0%
1
2
3
H
L
IN
OUT
[PITCH CURVE]
ST-1
≥Point-3
51
51
INH
1
2
3
H
L
IN
OUT
[PITCH CURVE]
ST-2
≥Point-3
51
51
INH
1
2
3
H
L
IN
OUT
[THRO CURVE]
ST-2
≥Point-3
51
51
INH
1
2
3
H
L
IN
OUT
[PITCH CURVE]
≥Point-3
51
51
INH
1
2
3
H
L
IN
OUT
NORM
Dual Rate
&
Exponential (Pg
79)
Auto Dual
Rate
Expo
(Pg 81)
Reverse (Pg
82)
Sub T
rim (Pg
83)
T
ravel
Adjust (Pg
84)
Swashplate Mix
(Pg 85)
Throttle Hold
(Pg
86)
Throttle Cur
ve
Normal
(Pg 87)
Throttle Cur
ve
ST
-1
(Pg 87)
Throttle Cur
ve
ST
-2
(Pg 87)
Servo
Monitor
(Pg 96)
Fail Safe
(Pg
95)
Programmable Mix
(1 though
3)
(Pg
92)
Gyro Sensing
(Pg
91)
Revo Mix
(Pg
90)
Pitch Cur
ve
Hold
(only available
when
HOLD is
activated)
(Pg 89)
Pitch ST
-2
(Pg
89)
Pitch Cur
ve
ST
-1
(Pg 89)
Pitch Cur
ve
Normal
(Pg 89)
75
77
Table of Contents
Default Chapter
2
Default Chapter
2
Table of Contents
2
Using this Manual
5
DS821 Servo
5
Section 2: Component Specifications
6
R790 Scanselect PCM Receiver
5
XP7202 Transmitter
5
System Specifications
6
Included Accessories
6
Transmitter Specifications
6
Airborne Battery Pack
7
Section 3: Battery Charging
8
Charger Specifications
7
Receiver Specifications
7
Servo Specifications
7
Charger
8
Section 4: General Information
9
Transmitter/Receiver
8
Transmitter Polarity
8
Control Stick Length Adjustment
9
Control Stick Tension Adjustment
9
Proper Direct Servo Connect Hookup and Operation
10
Base-Loaded Antenna
11
Neck Strap Adjustment
11
Using the Synthesized Channel Selection
12
Changing the Frequency
12
Advanced Digital Trims
13
Screen Contrast
13
Installation Requirements
14
Section 5: Quick Start
15
Selecting a Channel
15
To Select a Channel (Transmitter)
15
Performing a Range Test
16
To Select a Channel (Receiver)
16
Section 5.1
17
Airplane Quick Start
17
Model Type Selection
17
Selecting Airplane Mode
17
Servo Reversing
18
Travel Adjust
19
Model Type Selection
20
Section 5.2: Helicopter Quick Start
20
Selecting Helicopter Mode
20
Servo Reversing
21
Travel Adjust
22
Pitch Curve
23
Adjusting the Normal Pitch Curve
23
Throttle Curve
24
Adjusting the Normal Throttle Curve
24
Section 6: Aircraft Programming Guide
25
Control Identification and Location - Airplane Mode 2
25
Throttle ALT
25
General Information
26
Key Input and Display Functions
26
System Mode Flowchart
27
To Enter the System Setup Mode
27
To Exit the System Setup Mode
27
Section 6.1: System Mode Functions
28
System Setup Mode
28
To Enter System Setup List Mode
28
Function Mode
29
To Enter the Function Mode
29
Function Mode Flowchart
30
List Modes
31
To Enter the Function List Mode
31
To Exit the Function Mode
31
Model Select/Copy Function
32
To Enter the Model Select Function
32
To Enter the Copy Function
32
Model Name
33
To Enter the Model Name Function
33
Type Select Function
34
To Enter the Type Select Mode
34
To Select a Model Type
34
To Enter the Modulation Function
35
To Select a Modulation Type
35
Modulation
35
Model Reset and Integrated Timer Reset
37
To Perform a DATA RESET or Reset the Integrated Timer
37
Trainer
38
To Enter the Trainer Mode
38
Throttle Recovery
39
To Activate Throttle Recovery
39
Input Select
40
Wing Type
41
Normal
41
Flaperon Wing Type Selection
41
Delta Wing Type Selection
41
To Enter the Wing Type Function
41
To Select a Wing Type
42
Synthesized Channel Select
43
To Select a Transmitter Channel
43
To Select a Receiver Channel
44
Section 6.2: Function Mode Functions
45
Dual Rate & Exponential
45
To Adjust the Dual Rate
45
To Adjust the Exponential
46
Reverse Switch
47
To Access the Reverse Switch Mode
47
Sub-Trim
48
To Access the Sub-Trim Function
48
Travel Adjust
49
To Access the Travel Adjust Function
49
Elevator-To-Flap Mixing
50
To Access the Elevator-To-Flap Mixing
50
Aileron-To-Rudder Mixing
51
To Access the Aileron-To-Rudder MIX Function
51
To Adjust the MIX Value
51
To Assign a Switch
51
Flap System
52
Accessing and Utilizing the Flap System
52
Automatic Landing
53
To Activate the Automatic Landing Feature
53
Differential Aileron Mixing
54
To Access the Differential Aileron Mixing Function
54
Programmable Mixing 1-6
55
Assigning Channels
55
Assigning Mixing Values
56
Assigning an Offset
57
Fail-Safe
58
Accessing the Fail-Safe Function
58
Servo Monitor
59
Setup Sheet (Aircraft)
60
Section 7: Helicopter Programming Guide
61
Transmitter Controls
61
Control Identification and Location
61
Gyro Connections
62
Warning Screen for Throttle Hold/Stunt Mode
62
General Information
63
Key Input and Display Functions
63
Section 7.1: System Setup
64
To Enter the System Setup Mode
64
To Exit the System Setup Mode
64
Model Select/Copy
65
To Enter the Model Select Function
65
To Enter the Copy Function
65
To Enter the Copy Function
66
Model Name
66
To Enter the Model Name Function
66
Type Select Function
67
To Enter the Type Select Mode
67
To Select a Model Type
67
Modulation
68
To Enter the Modulation Function
68
To Select a Modulation Type
68
Model Reset/Integrated Timer
70
To Reset a Model
70
To Reset the Integrated Timer
70
Trainer
71
To Enter the Trainer Mode
71
Throttle Recovery
72
To Activate the Throttle Recovery Function
72
Input Select
73
To Select the Input Switch for the AUX2 Channel
73
Swash Type
74
Accessing the Swashplate Types
74
Synthesized Channel
75
To Select a Channel
75
Function Mode Flowchart
76
To Enter the Function Mode
77
To Exit the Function Mode
77
List Modes
78
Section 7.2: Function Mode Functions
79
Normal Display
78
Dual Rate & Exponential
79
To Adjust the Dual Rate
79
To Adjust the Exponential
80
Auto Dual Rate EXP
81
To Adjust the Auto Dual Rate
81
Reverse Switch
82
Accessing the Reverse Switch Function
82
Sub-Trim
83
To Access the Sub-Trim Function
83
Travel Adjust
84
To Access the Travel Adjust Function
84
Swashplate Mixing
85
Accessing the Swashplate MIX Function
85
Throttle Hold
86
To Access the Throttle Hold Function
86
Throttle Curve
87
Throttle Trim Setting
88
Hovering Throttle Rocker Setting
88
Exponential Throttle Curve Function
88
Idle up
88
Pitch Curve
89
Hovering Pitch Rocker
89
Pitch Trim Rocker
89
Revolution Mixing (Only Used with Non Heading Hold Gyros)
90
Setting up Revolution Mixing
90
Gyro Sensing
91
Manual Gyro Sensitivity Adjustment
91
Automatic Gyro Sensitivity Adjustment
91
Programmable Mixing 1-3
92
Assigning Channels
92
Assigning Mixing Values
93
Assigning an Offset
94
Fail-Safe
95
Accessing the Fail-Safe Function
95
Servo Monitor
96
Setup Sheet (Helicopter)
97
Section 8: General Information
99
General Notes
99
Safety Do's and Don'ts for Pilots
99
Servo Precautions
99
Daily Flight Checks
100
Federal Aviation Administration
100
Purpose
100
Background
100
Operating Standards
100
Frequency Chart
101
Section 9: Warranty Information
102
Limited Warranty & Limits of Liability
102
Limited Warranty Period
102
Questions, Assistance, and Repairs
102
Safety Precautions
102
Inspection or Repairs
103
Non-Warranty Repairs
103
Questions or Assistance
103
Warranty Inspection and Repairs
103
