XP7202 Instruction Manual
Press the Down and Select keys simultaneously to
access the Function Mode
In Function Mode, use the UP or Down keys to select
the DUAL RATE and EXPONENTIAL screen.
Press the IncreaSe or DecreaSe key to select the
desired channel (AILE, ELEV or RUDD)
Move the selected channel’s dual rate switch to the desired
position, 0 or 1.
Press the Select key until EXP is highlighted
Adjust the Expo rate values for the selected switch position
using the IncreaSe or DecreaSe keys.
To Adjust the Exponential
Dual Rate & Exponential (continued)
[D/R & EXP]
POS-0
◊AILE
D/R 100%
EXP LIN
≥OUTPUT

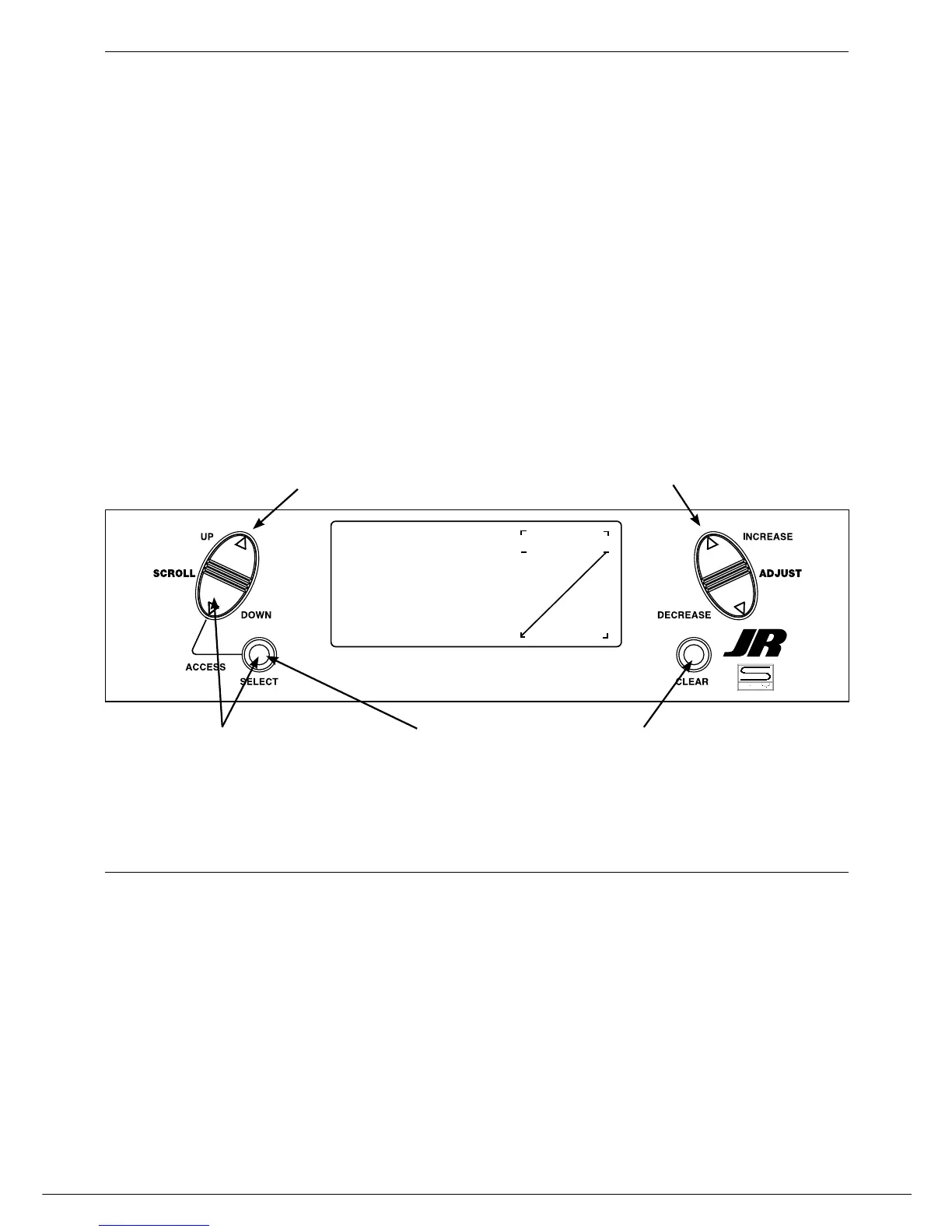

Press to enter
Function Mode
Press to enter EXPONENTIAL
Press to adjust value
Press to select
desired channel
Press to return value to
default setting
The Exponential function allows two exponential rates to
be programmed and selected with a switch. Exponential
is available on the aileron, elevator and rudder channels.
Changing the exponential value does not affect the
maximum control authority but only affects control
sensitivity. Exponential is normally used to reduce control
sensitivity around neutral while still allowing high control
authority at the extremes of throw. The sensitivity around
center can be tailored using the Exponential function to
precisely adjust control feel.
Exponential rates can be controlled by their respective
rate switches (aileron, elevator and rudder), or combined
on a single switch (COM AILE, COM ELEV, COM RUDD,
FLAP0 or FLAP2). The choices for this are found on the
D/R SWITCH SEL screen in the System Setup Mode for
Airplanes.
Exponential is available for the aileron, elevator and rudder
channels. Expo values are adjustable from –100% - LIN
- +100%. The factory default settings for both the 0 and 1
switch positions are LIN or 0%. Either switch position may
be selected to give any desirable EXPO rate by placing
the switch in the desired position and adjusting the value
accordingly.
NOTE
: A negative (-) Expo value will increase sensitivity
around neutral, and a positive (+) Expo value will decrease
sensitivity around neutral.
