XP7202 Instruction Manual

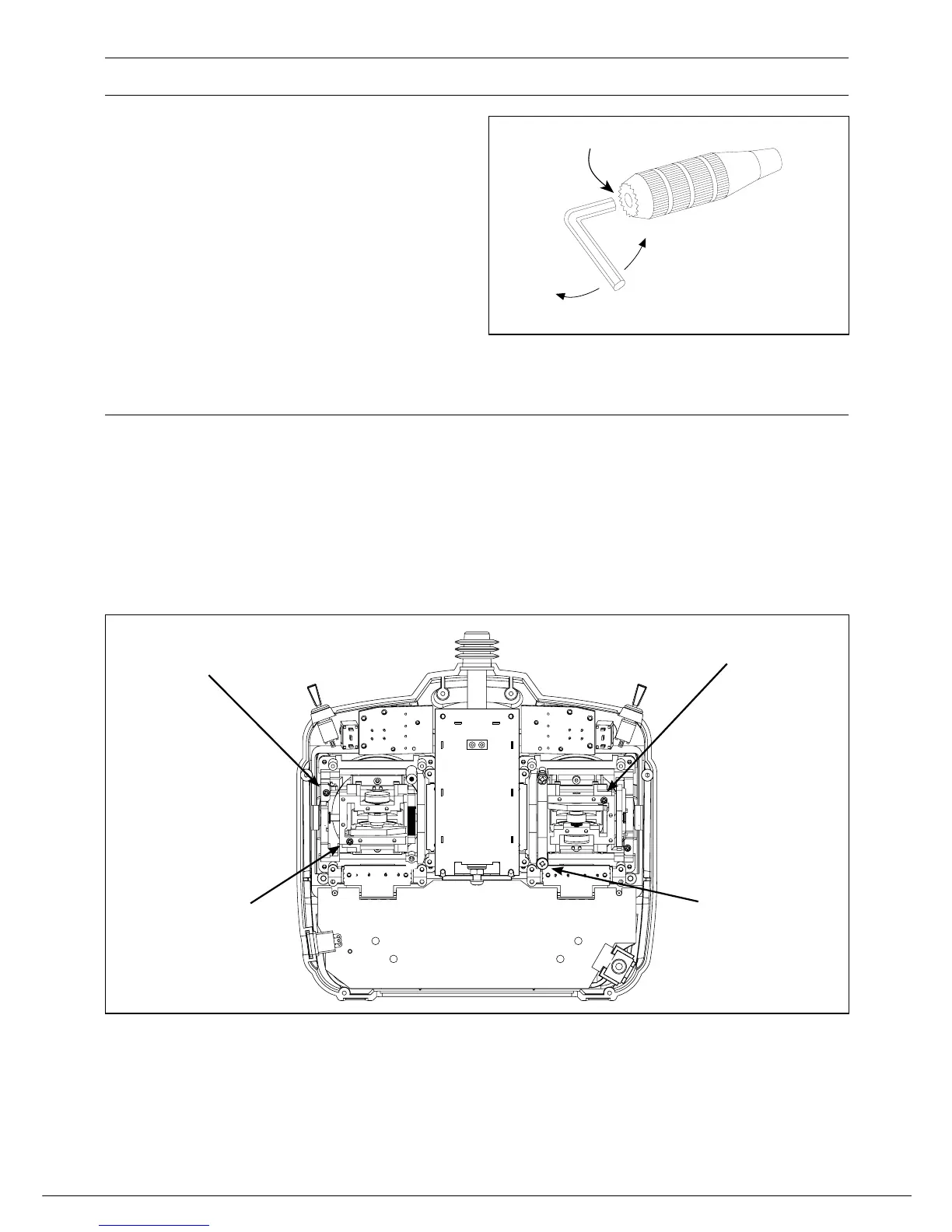

The XP7202 allows you to adjust the control stick’s length.
Loosen or tighten to adjust the stick length; use the 2mm
Allen wrench (supplied with your XP7202 transmitter) to
unlock the setscrew. Turn the wrench counterclockwise to
loosen the screw. Then, turn the stick clockwise to shorten
or counterclockwise to lengthen. After the control stick
length has been adjusted to suit your flying style, tighten
the 2mm setscrew. If you desire longer sticks, JR
®
offers a
longer stick tip (JRPA047) that is approximately one inch
longer than the standard stick. This stick is available from
your local JR dealer.
Section 4: General Information
Control Stick Length Adjustment
Control Stick Tension Adjustment
NOTE: Remove the transmitter Ni-MH battery, and
six (6) transmitter back cover screws as shown on the
previous page. Remove the transmitter back, being
careful not to cause damage to any components
Adjust each stick tension screw for the desired tension
(counterclockwise to loosen stick feel, clockwise to tighten
stick feel).
ELEVATOR TENSION
SCREW
AILERON TENSION
SCREW
RUDDER TENSION
SCREW
THROTTLE TENSION
SCREW
