In helicopter mode the XP7202 offers three (3)
programmable mixes that allow stick or switch inputs to
control the output of two or more servos. This function
allows mixing any one channel to any other channel or the
ability to mix a channel to itself. The mix can remain ON
at all times, or be switched OFF in flight using a number
of different switches. (Refer to chart at right.) Mix values
are adjustable from 0 to 125%. Each channel is identified
by a four character name (i.e., Aileron - AILE, Elevator
- ELEV, etc.). The channel appearing first is the master
channel. The second channel is the slave channel. For
example, AILE - ELEV would indicate aileron to elevator
mixing. Each time the aileron stick is moved, the elevator
will deflect, and the elevator will automatically move in
the direction and to the position based on the value input
in the programmable mix screen. Mixing is proportional,
so small inputs of the master channel will produce small
outputs of the slave channel. Each programmable mix
has a mixing offset. The purpose of the mixing offset is to
redefine the neutral position of the slave channel.
ON: Mixing Always On
F-NR: Flight mode normal
F-S12: Stunt modes 1 and 2
F-S2: Stunt mode 2
HOLD: Throttle hole toward self
GEAR: Gear channel toward self
Programmable Mixing 1-3
Assigning Channels

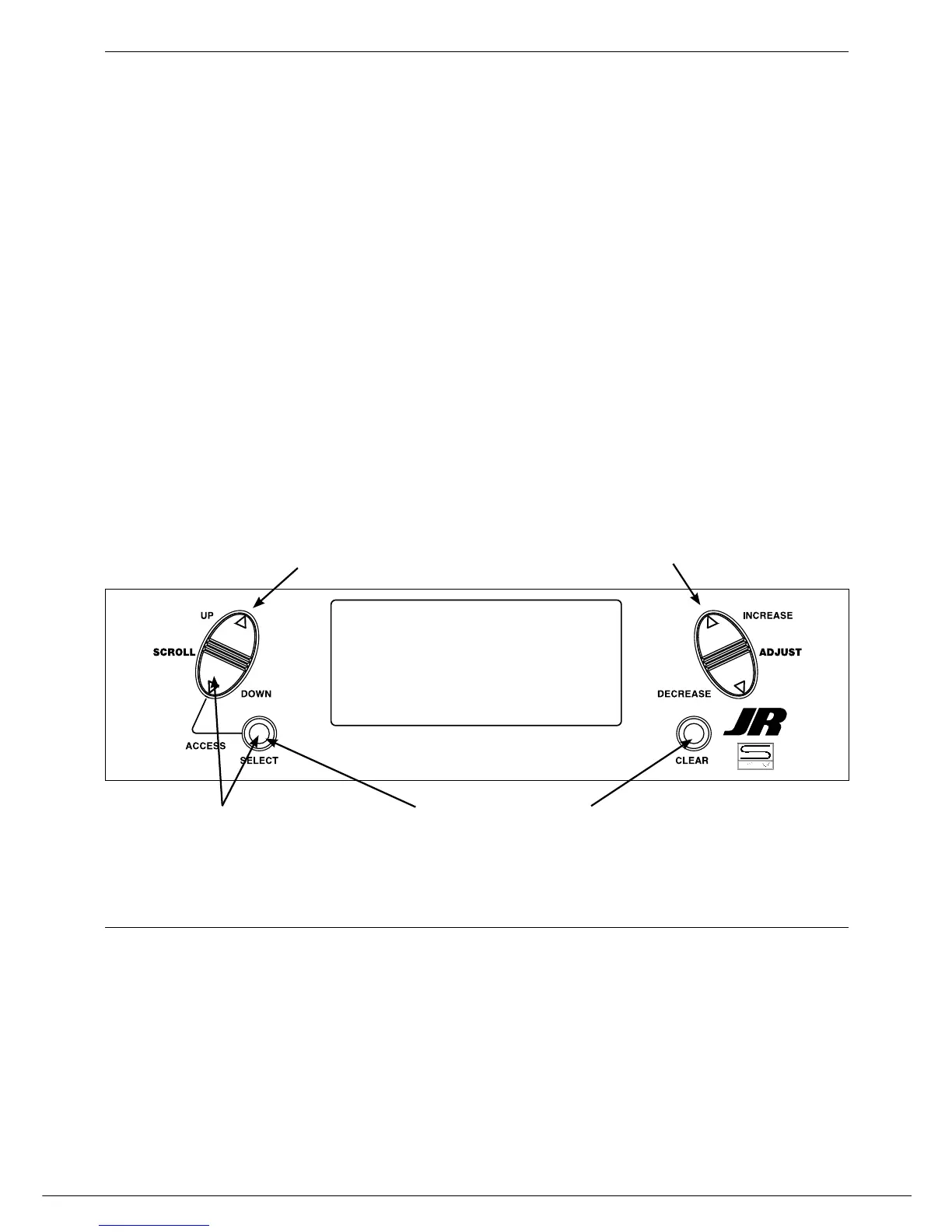

Press the Down and Select keys simultaneously to
access the Function Mode.
In Function Mode, use the UP or Down keys to
select the desired PROG. MIX screen. (1-3). Press
the IncreaSe or DecreaSe button to access the
Programmable Mix function.
Press the IncreaSe or DecreaSe keys to select the
desired master channel.
Press the Select key to highlight the slave channel.
Press the IncreaSe or DecreaSe keys to select the
desired slave channel.
