The following programming example illustrates how to prompt the user to press the EXIT (LOCAL)
key to abort the script, or any other key to continue it:
display.clear()
display.setcursor(1, 1)
display.settext("Press EXIT to Abort")
display.setcursor(2, 1)
display.settext("or any key to continue")
key = display.waitkey()
display.clear()
display.setcursor(1, 1)
if key == 75 then
display.settext("Test Aborted")
exit()
else
display.settext("Test Continuing")
end
The above code captures the key that is pressed by the operator. The key code value for the EXIT
(LOCAL) key is 75. If the EXIT (LOCAL) key is pressed, the script aborts. If any other key is pressed,
the script continues.
Digital I/O
Digital I/O port
The Keithley Instruments Series 2600B System SourceMeter
®
instrument has a digital input/output
port that can be used to control external digital circuitry. For example, a handler that is used to
perform binning operations can be used with a digital I/O port.
The Models 2604B, 2614B, and 2634B do not have digital input/output lines (pins 1 through 14).
Port configuration
The digital I/O port, a standard female DB-25 connector (shown below), is located on the rear panel.

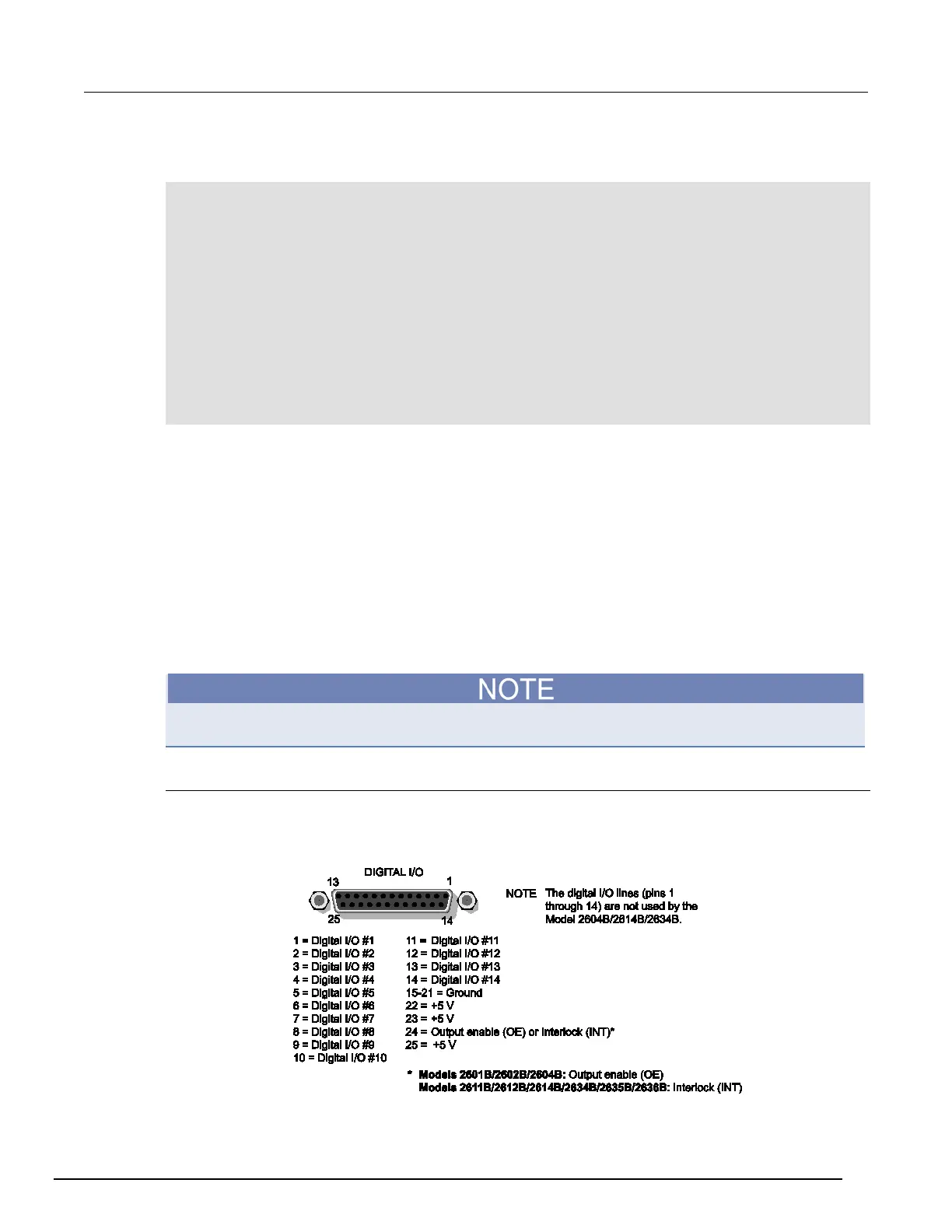

Figure 87: Digital I/O port
