INTRODUCTION
MAIN USE OF MACHINE
This Komatsu machine is designed to be used mainly for the following work:
Traveling with a load

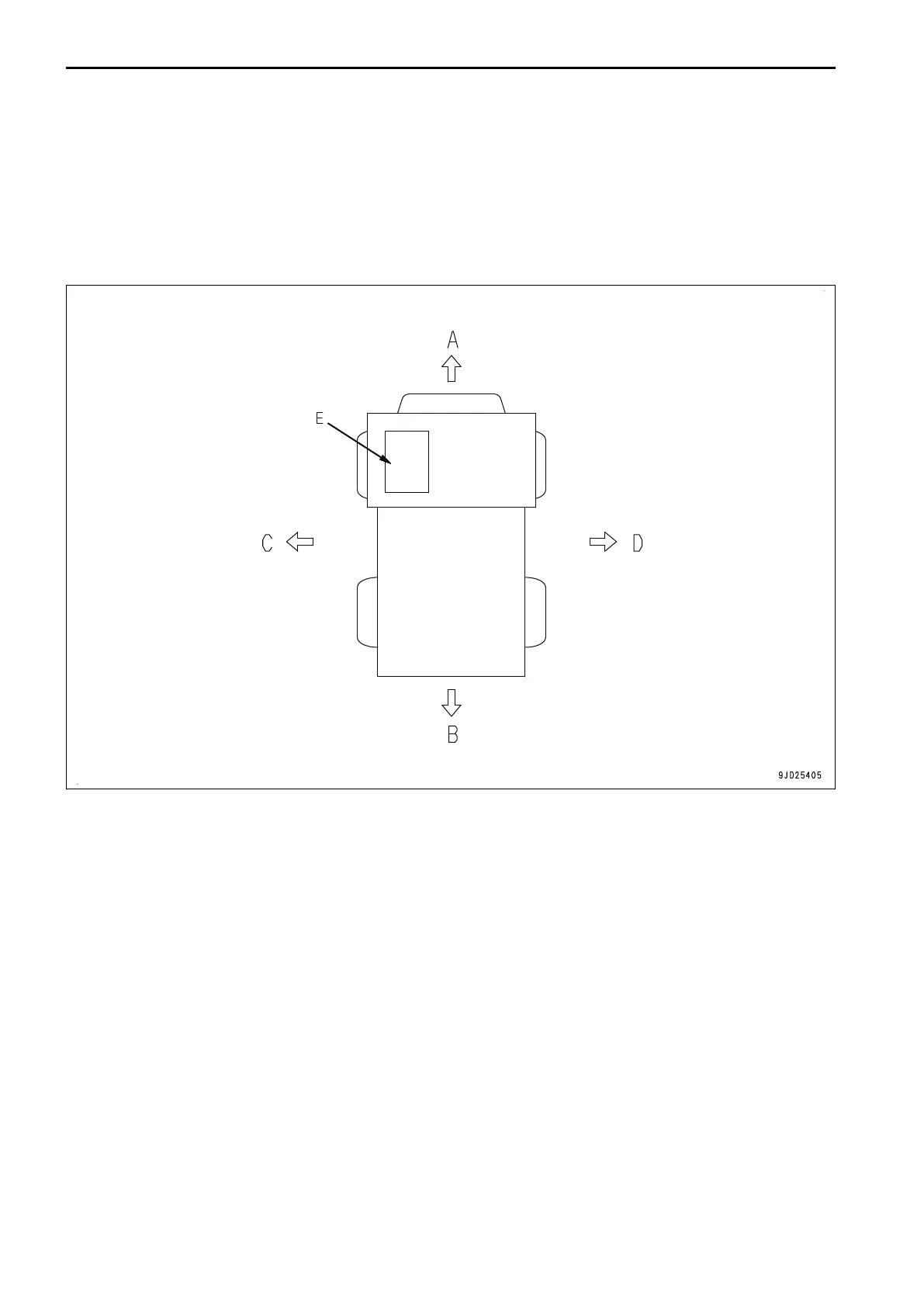

DIRECTIONS OF MACHINE
(A) Front
(B) Rear
(C) Left
(D) Right
(E) Operator's seat
In this manual, the directions of the machine (front, rear, left, right) are determined according to the view from
the operator's seat in the direction of travel (front) of the machine.
VISIBILITY FROM OPERATOR'S SEAT
This machine performs risk-asseccment based on the visibility standard(ISO5006), and secures necessary visi-
bility.
To assist with job site organisation during use of this machine, a visibility map is provided that shows an approxi-
mation of any masking to visibility between the 1 m rectangular boundary and the 24 m test circle.
Based upon the information supplied in the visibility map the site operator may wish to provide additional meas-
ures where it is felt necessary or provide additional instruction to personnel.
Specification of visibility map
• Machine Posture : In accordance with ISO5006
• Evaluation height : 1.2 m above the ground
• Scale-interval of the circles is 1 m.
INTRODUCTION FOREWORD
1-10
