7.
If any dust is attached to the vacuator valve (6) installed to
the cover (2), remove it.
8.
Check that the lip of vacuator valve (6) has no crack.
If there is any crack, replace it with a new one.
9.
Remove the inner element (4), and then quickly install the
new inner element.
Install the inner element securely so that it does not move.
10.
Push new outer element (3) in straight with your hand into
the air cleaner body.
Hold the outer element (3), and rock the outer element (3)
lightly up and down and to the right and left while pushing it in, and you can insert it easily.
11.

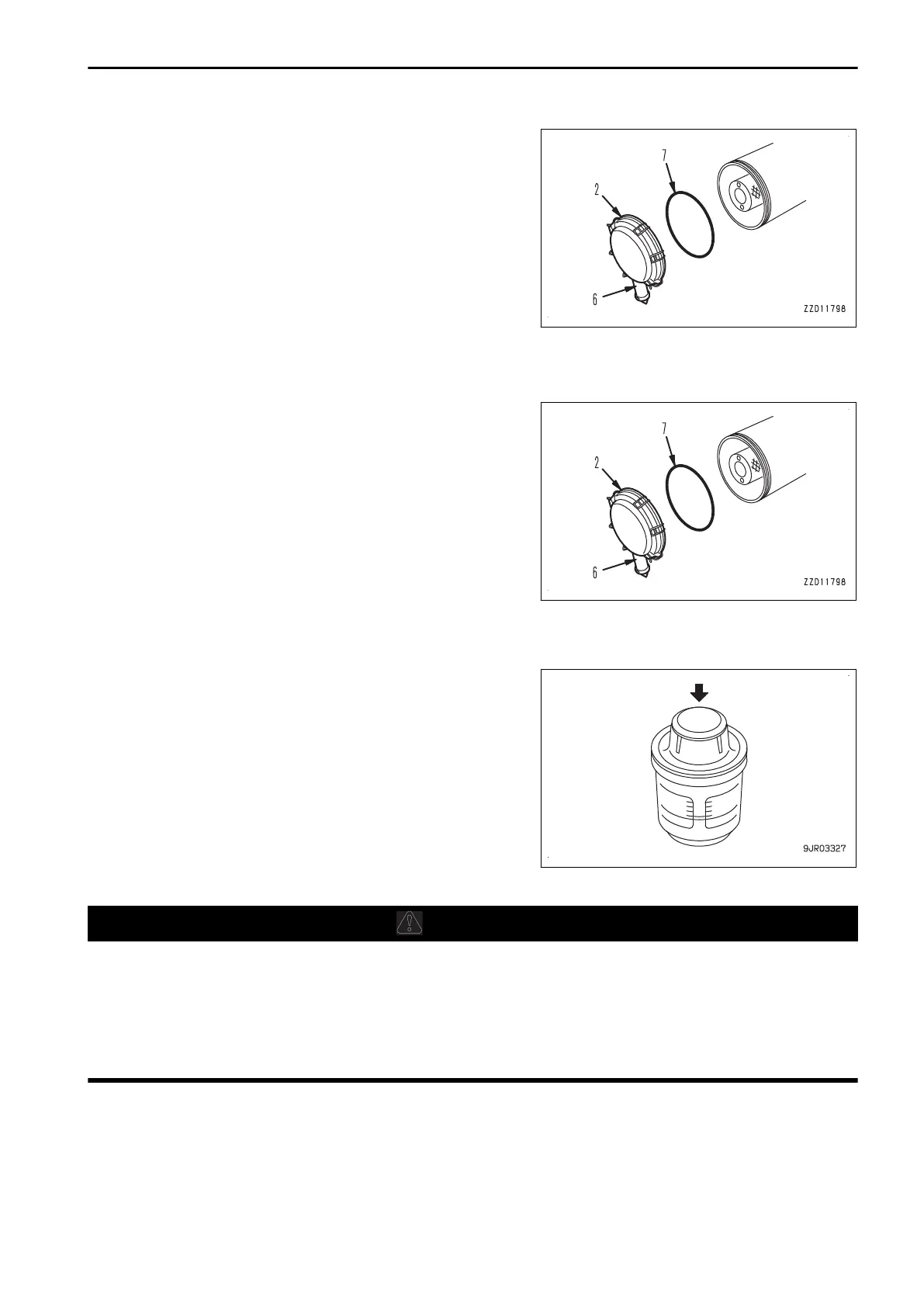

Install the cover (2) according to the following procedure.
1)
Replace the O-ring (7) with a new one.
2)
Align the cover (2) with the element.
Insert the cover (2) with vacuator valve (6) right at the
bottom into air cleaner body (5).
3)
Lock the tips of clips (1) (6 places) on the protrusions
of the air cleaner body (5).
Lock the clips (1) diagonally, (top and bottom, right
and left) in the same way as when tightening the bolts.
4)
When the cover (2) is installed, check that the clear-
ance between air cleaner body (5) and cover (2) is not
too large.
If the clearance is too large, remove the cover (2), and then install it again.
12.
Press the button of the dust indicator and return the yellow
piston.
METHOD FOR CLEANING INSIDE OF COOLING SYSTEM
WARNING
• Allow parts and oils to cool then remove the cap slowly to relieve pressure.
• Start the engine and perform the cleaning. Make sure to set the gear shift lever to NEUTRAL and set
parking brake switch to “PARKING” before you leave the operator seat to avoid sudden machine
movement.
• When the undercover is removed, there is a danger of touching the fan. Never enter the rear of the
machine when the engine is running.
Place the machine on a level ground when cleaning or changing the coolant.
For cleaning the inside of the cooling system and changing the coolant, see the following table.
MAINTENANCE MAINTENANCE PROCEDURE
