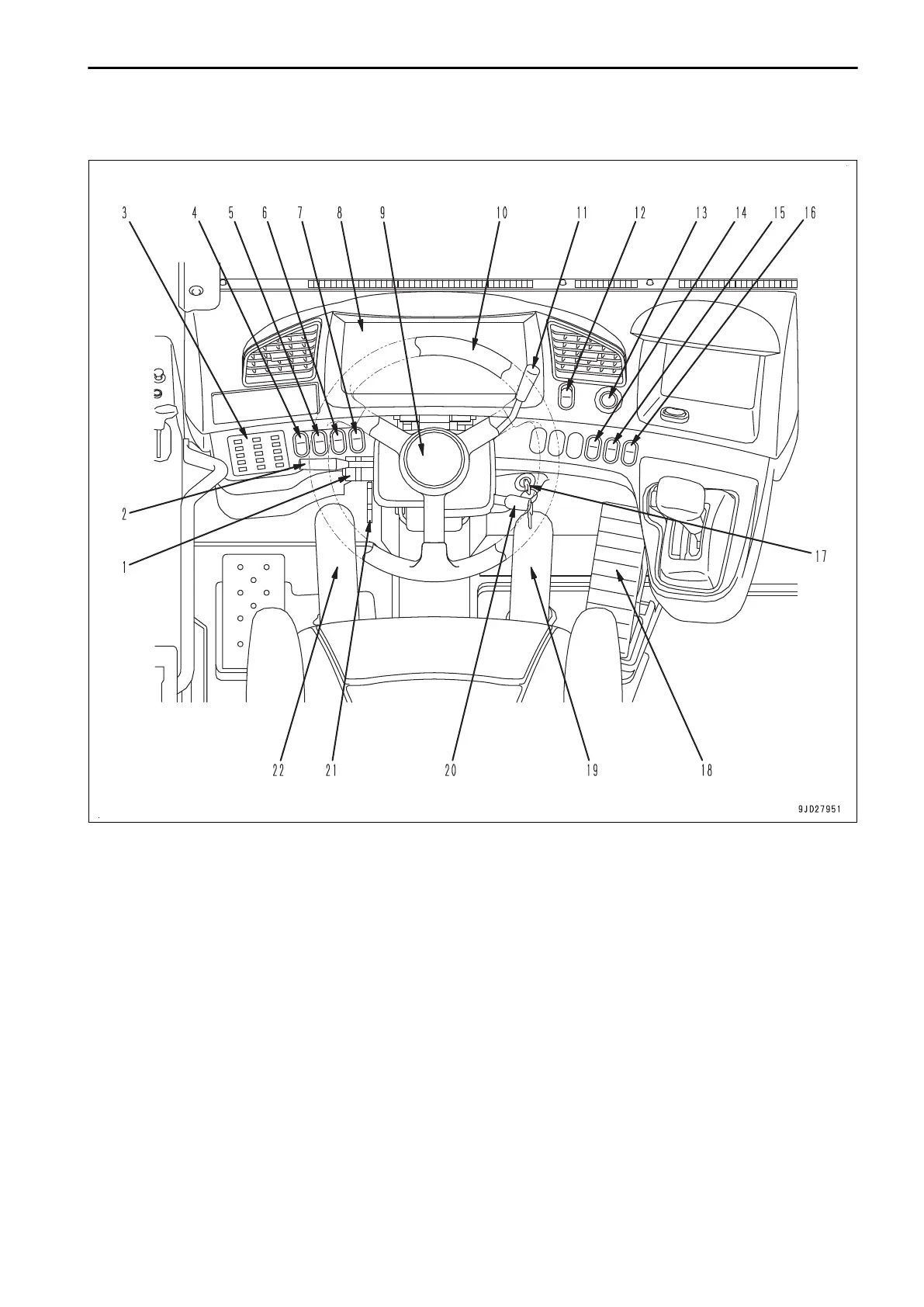

CONTROLS AND GAUGES NAMES
(1) Wiper and window washer switch
(2) Lamp switch, dimmer switch, turn signal lever
(3) Switch panel
(4) Monitor brightness selector switch
(5) Side lamp switch
(6) Staircase lighting switch (if equipped)
(7) Fog lamp switch
(8) Machine monitor
(9) Horn button
(10) Steering wheel
(11) Retarder control lever
(12) Hazard lamp switch
(13) Secondary steering switch
(14) Front brake off switch
(15) AISS LOW switch
(16) Engine power mode selector switch
(17) Starting switch
(18) Accelerator pedal
(19) Brake pedal
(20) ARSC travel speed set lever
(21) Steering tilt lock lever
(22) Secondary brake pedal
OPERATION GENERAL VIEW
3-3
