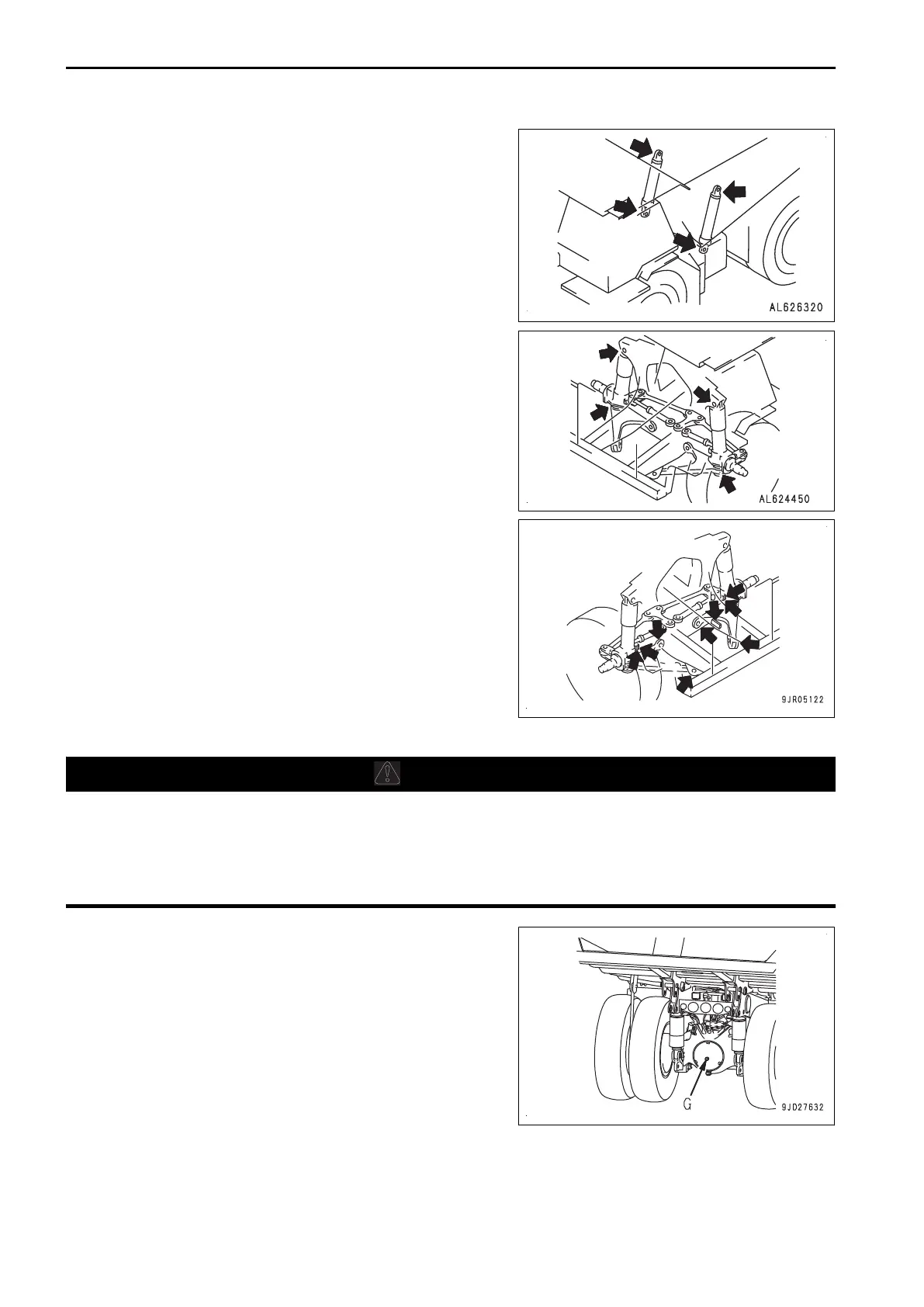

Hoist cylinder pin (2 places each of right and left)
Perform the greasing when the dump body is lowered.
Front suspension (2 places each of right and left)
Perform the greasing when the steering is set to the straight
travel.
Steering linkage (13 places)
The positions (b) are the integrated lubrication points (5 pla-
ces).
METHOD FOR CHECKING AND ADDING OIL IN DIFFERENTIAL CASE
WARNING
• Immediately after the engine is stopped, its parts and oil are still very hot and may cause burn in-
jury.
Wait for the temperature to go down, and then start the work.
• When removing the plug, oil may spurt out, so turn it slowly to release the internal pressure, then
remove it carefully.
1.
Remove the plug (G).
2.
Check that the oil level is close to the lower edge of the
plug hole.
If the oil level is too low, add oil until the oil level comes
close to the lower edge of the hole of the plug (G).
3.
Install the plug G).
MAINTENANCE PROCEDURE MAINTENANCE
4-40
