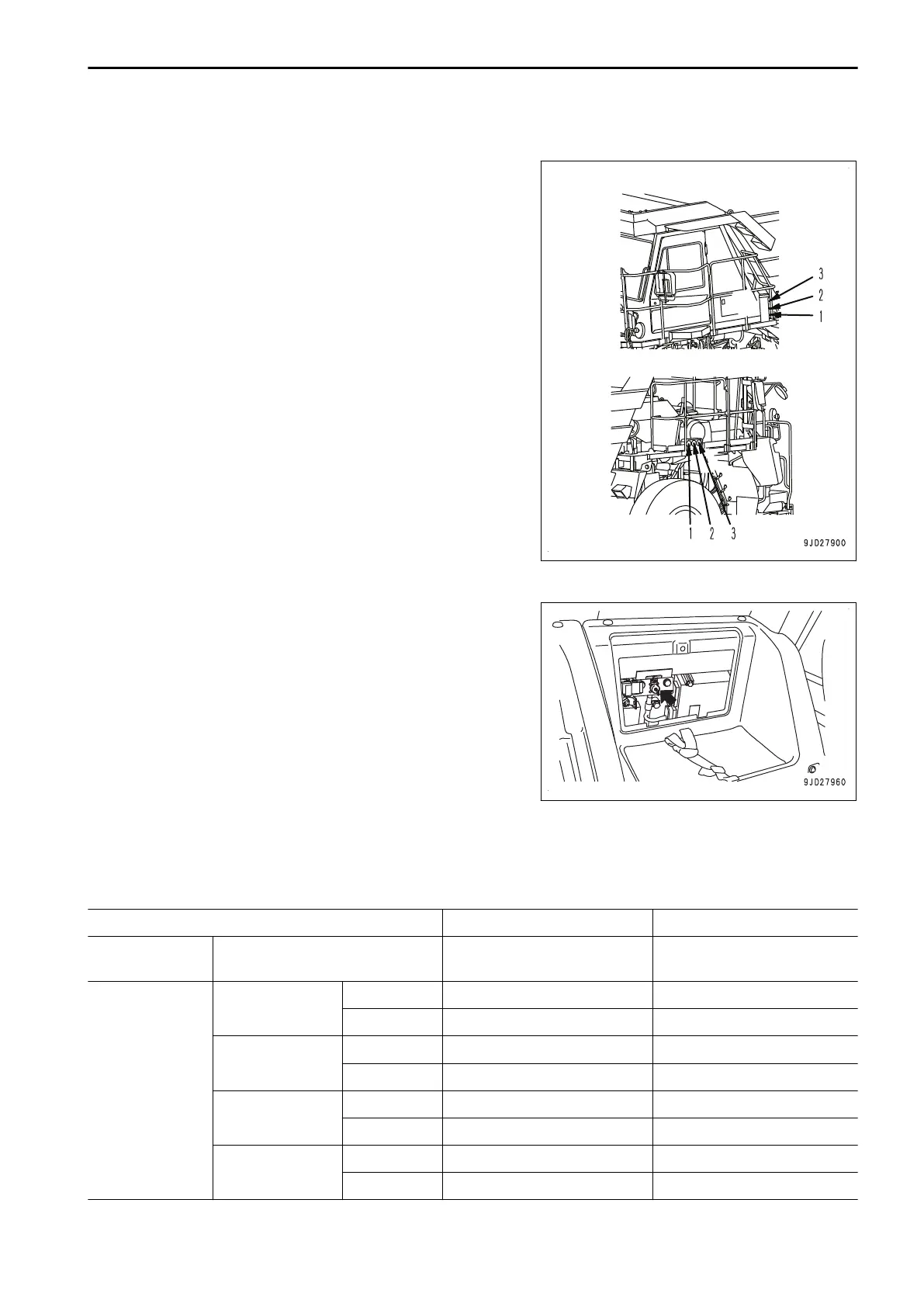

External display lamp
The external display lamps (2 places) are installed to the rear
left of the cab and right (right side of the machine body).
The external display lamps are installed so that the operator on
the loader can see them. The lamps consist of 3 colors ((1)
green, (2) yellow, and (3) red).
The display of the external display lamps changes according to
the payload.
Download connector
Communication cable connection port is inside of the cover on
the rear of the operator's seat.
You can download the data saved in the payload meter to a
personal computer through the download connector.
PAYLOAD DISPLAY
Payload is displayed on the machine monitor and with the external display lamps.
The state displayed on the machine monitor may be different from that displayed with the external display lamps
depending on the machine condition.
Machine state
Machine monitor External display lamp
Engine is stop-
ped
When starting switch is in ON po-
sition
Clock display All lamps are lit for 30 sec-
onds
Engine is running
Unloaded
Stopped (*3) Clock display Not lit (*4)
Traveling Clock display Not lit
Loading (*1)
Stopped Payload display Payload display (*4)(*5)
Traveling Clock display Not lit
Loaded (*2)
Stopped Payload display Payload display (*5)
Traveling Clock display Not lit
Dumping
Stopped Payload display Not lit
Traveling Payload display Not lit
