101PERIODIC SERVICE
BChecking and replenishing oil in the front
and rear axle, reduction gear case
To avoid personal injury or death:
A Before changing oil in the front and rear axle
differential case, always stop the engine and
lock the direction switch in neutral.
A Always remove the bucket and attachment, and
use the lift arm support device when servicing
the machine with the loader lift arms raised to
avoid serious personal injury.
1. Remove the oil port plug, check the oil level. The oil
level must be at the lower rim of the thread.
2. Add oil if necessary.
3. Screw in and tighten the oil port plug.
BReplacing return filter
To avoid personal injury or death:
A Never remove the filter immediately after the
engine has stopped, or hot hydraulic oil may
rush out, causing scalding.
1. Remove the cover on the hydraulic oil tank.
2. Loosen the filter with a wrench and remove the filter.
3. Tighten the new return filter.
A After changing the filter, start the hydraulic system
briefly and then check the oil level.

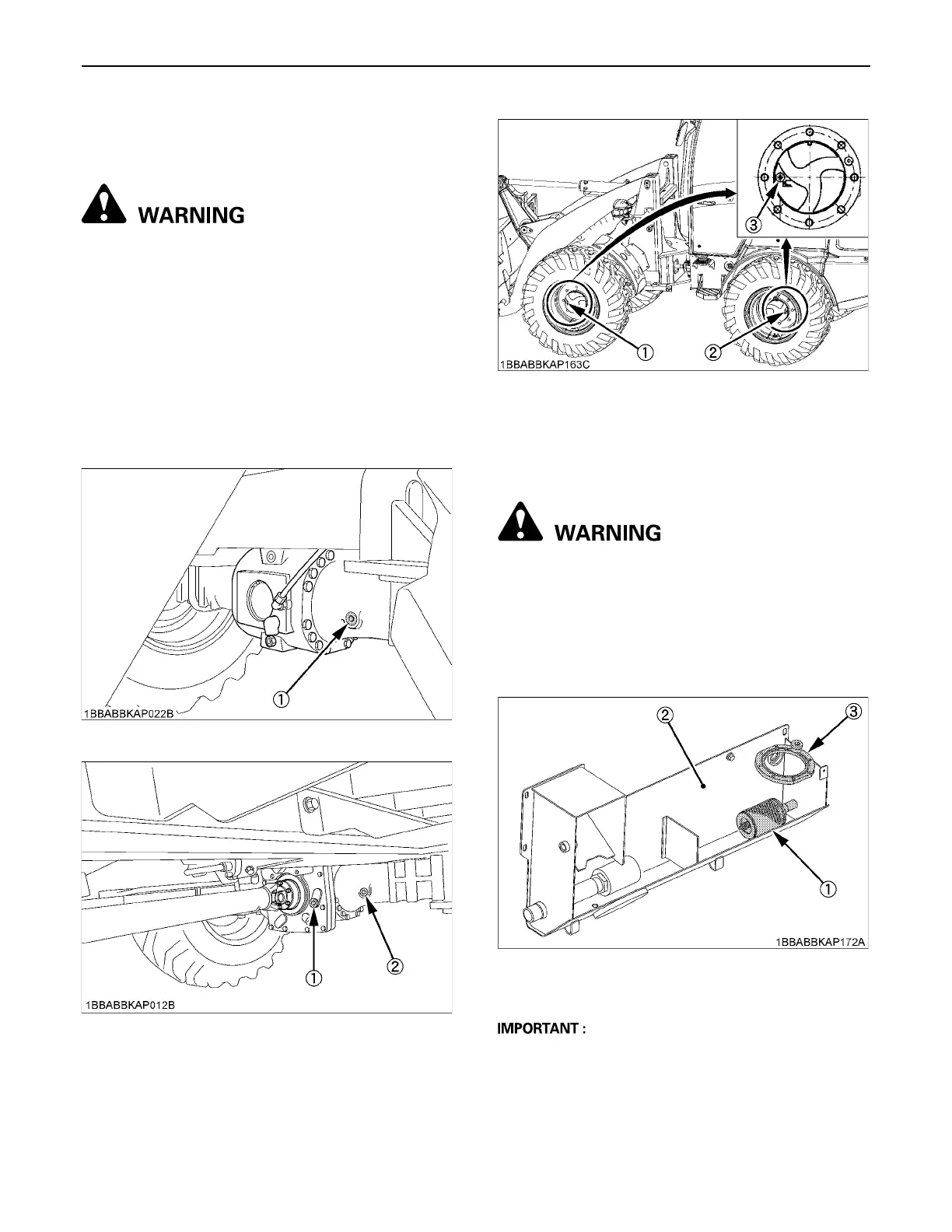

(1) Oil port plug front axle
(1) Oil port plug reduction gear case
(2) Oil port plug rear axle
(1) Oil port plug front axle (both side)
(2) Oil port plug rear axle (both side)
(3) Oil plug
(1) Return filter
(2) Hydraulic oil tank
(3) Cover
