OPERATION OF THE MACHINE64
MECHANICAL QUICK-HITCH
BAttaching Attachments
This machine utilizes a quick-hitch for easy connection
and disconnection of various attachments.
By replacing the front attachments, this machine can be
used in agriculture, raising stock, landscaping, gardening
and snow removal as well as general civil engineering and
construction work.
To avoid personal injury or death:
A Use of attachments that do not comply with
ISO24410 or the improper positioning of
lever(s) or non-protrusion of pin(s) may result
in detachment of the attachment or
deformation, causing loss of performance,
personal injury or death.
To avoid personal injury or death:
A After doing these procedures, make sure the
attachment is securely attached to the quick-
hitch, or the attachment may be detached.
A When handling the control lever, you should do
it after setting the parking brake switch to the
parking position, lowering the lift arm, locking
all control levers in neutral position.
A Attachments should be located on a level, firm surface
when attaching and detaching them from the quick-
hitch.
1. To mount an attachment, pull the levers of the quick-
hitch lock pins to the "UNLOCKED" position. The
quick-hitch levers must be all the way up to ensure that
the lock pins are fully retracted.
2. Position the machine squarely in front of the
attachment and tilt the quick-hitch forward with the
bucket cylinder.
3. Ease the quick-hitch mounting plate into the saddle of
the attachment.
4. Roll the quick-hitch back using the bucket cylinder and
raise the lift arm slightly. The back of the attachment
should rest against the front of the quick-hitch
mounting plate and the weight of the attachment
should be supported by the lift arm.
5. When the attachment is properly seated in the saddle
and against the front of the quick-hitch mounting plate,
turn off the engine and set the parking brake. Push the
quick-hitch levers to the fully "LOCKED" position.
Verify both lock pins are completely engaged in the
base of the attachment.

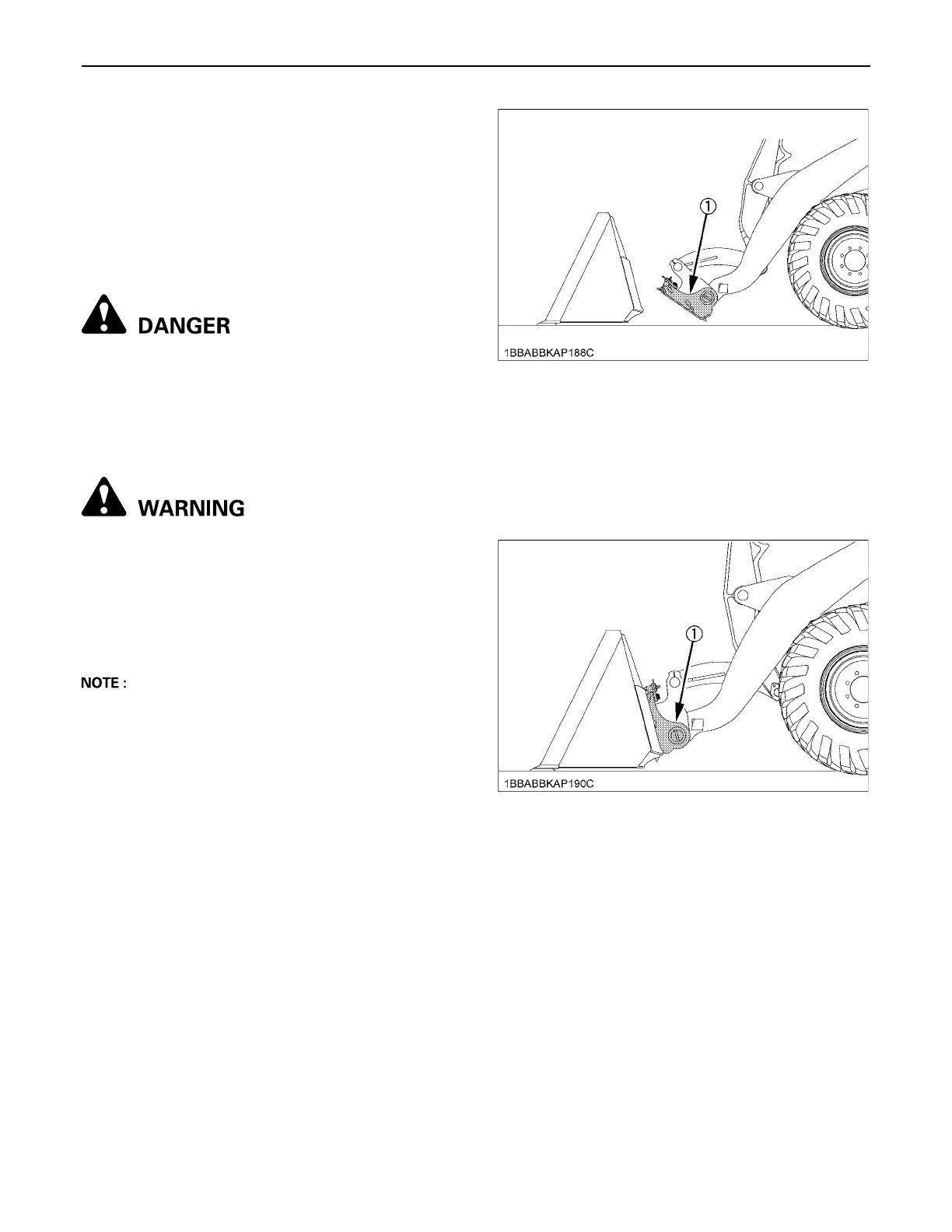

(1) Quick-hitch
(1) Quick-hitch
To Next Page
