PERIODIC SERVICE104
BChanging hydraulic oil and the suction
filter
To avoid personal injury or death:
A Always stop the engine before changing oil.
A Never open the drain plug immediately after the
engine has stopped, hot hydraulic oil may rush
out, causing scalding.
1. Remove the drain plug (hexagon head screws 8 mm
(0.3 in.)) from the bottom of the tank and drain the oil.
2. Remove the bolt from the tank bottom cover and then
remove the cover.
3. Replace the suction filter.
(Hexagon nut: 60 mm (2.4 in.)).
4. Check the gasket for damage and replace gasket if
necessary.
5. Retighten the drain plug, and attach the tank bottom
cover.
6. Open the access flap and the oil port cap for the
hydraulic oil tank and fill hydraulic oil up to the
specified amount and then close the oil port cap and
the flap.
7. Run the engine at idle speed, set the direction switch
to the neutral position.Then operate the control lever
and the steering wheel for about five minutes.
Stop the engine and make sure that the oil quantity is
sufficient through the oil level gauge.
Hydraulic oil port is under the floor. Take up the mat,
remove the bolts and detach the cover.

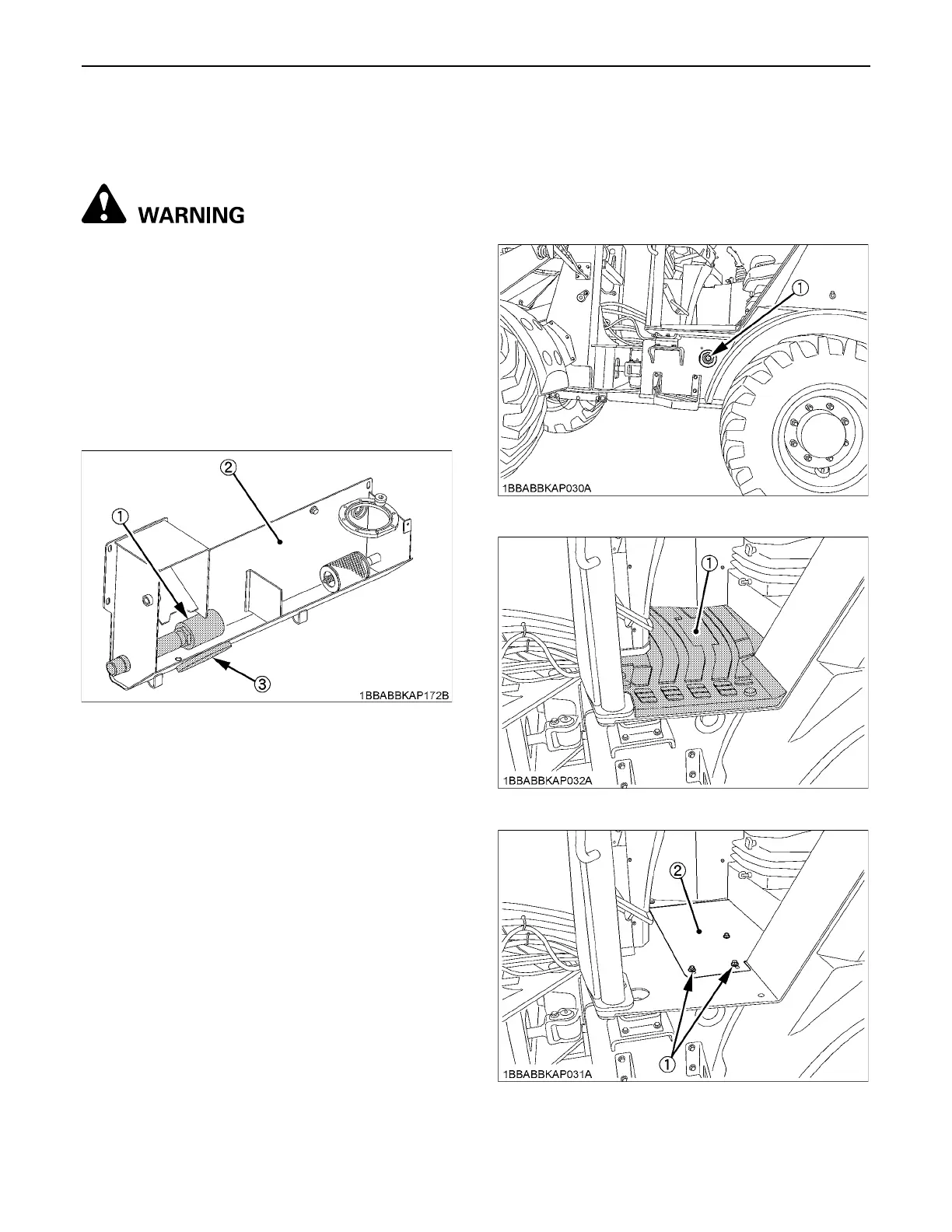

(1) Suction filter
(2) Hydraulic oil tank
(3) Bottom cover
(1) Oil level gauge
(1) Mat
(1) Bolts
(2) Cover
