CHECKS BEFORE START26
BSteering Frame Lock
To avoid personal injury or death:
A Secure steering frame lock before servicing,
hauling or transporting the machine.
This is used to lock the front and rear frames together to
prevent the frames from articulating unexpectedly during
servicing or hauling or transporting.
To attach the steering frame lock:
1. Align front and rear frames.
2. Shut off the engine and remove the key.
3. Attach steering frame lock with snap pins.
4. If holes are not aligned, move the steering wheel
slightly with the engine off.
A Store the steering frame lock securely after use.
[R530]
BControl Lever Lock
To avoid personal injury or death:
A When dismounting the machine or when
servicing the machine, be sure to stop the
engine, lower the bucket and the attachment to
the ground, release the hydraulic pressure in
the hydraulic system by operating control
levers. Lock all control levers in neutral, and
remove the key.
This lock is used to lock the control lever. With the control
lever in neutral, operate the lock.

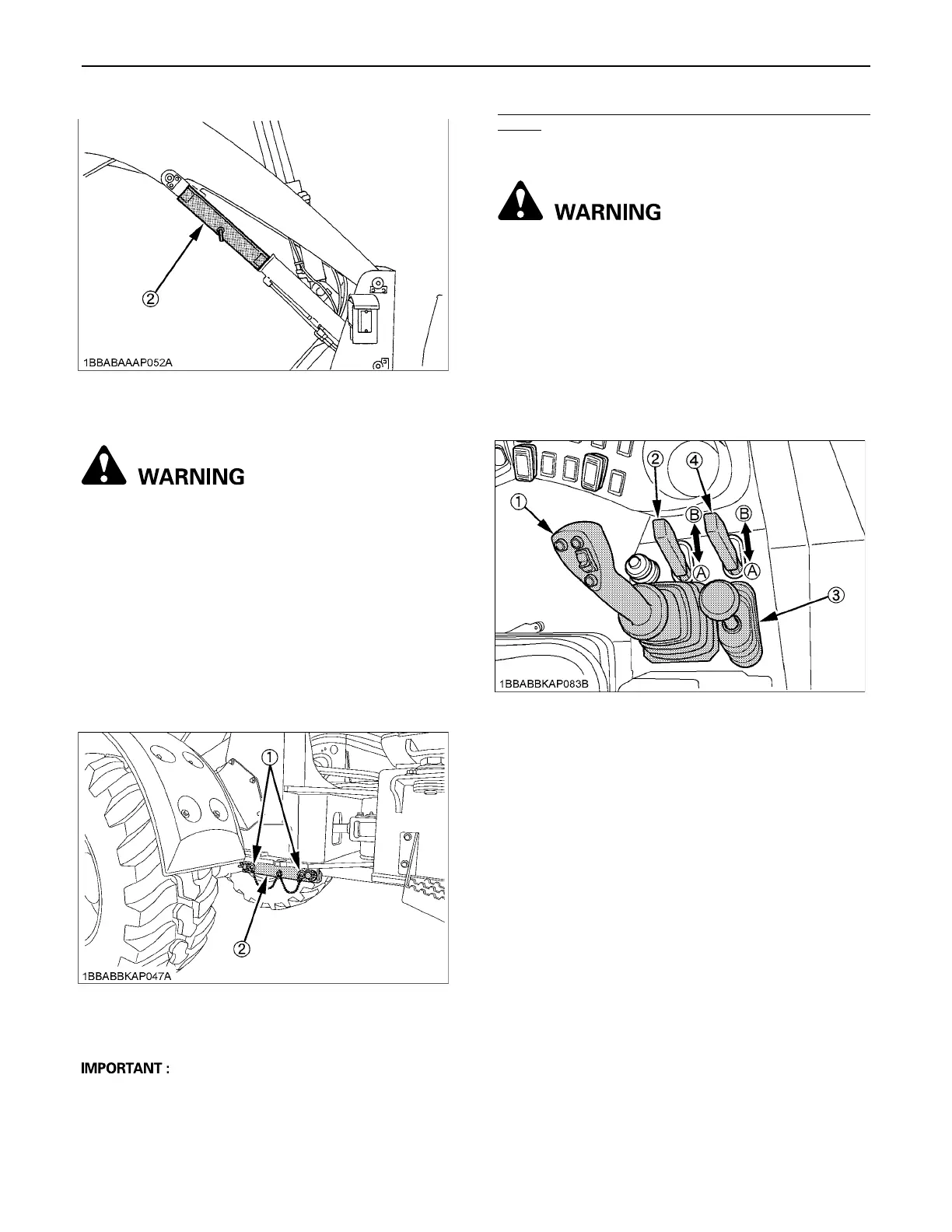

(2) Lift arm support device (Installed position)
(1) Snap pin
(2) Steering frame lock [Steering frame lock in lock position]
(1) Control lever
(2) Control lever lock
(3) Auxiliary port lever
(4) Auxiliary port lever lock
(A) "LOCK"
(B) "UNLOCK"
