49OPERATION OF THE MACHINE
BSetting Procedure
C Normal mode (N mode)
When the engine gets started, the machine is always in
the N mode.
C Power mode (P mode)
Press the P mode switch, and the power mode is
selected. Now the P mode indicator lights up. Press it
again, and the machine returns to the N mode and the P
mode indicator goes out.
A It is possible to change directly from the Eco mode to
the P mode.
C ECO mode (E mode)
Press the ECO mode switch, and the Eco mode is
selected. Now the ECO mode indicator lights up. Press it
again, and the machine returns to the N mode and the
ECO mode indicator goes out.
A It is possible to change directly from the P mode to the
Eco mode.
C Attachment mode (ATT mode)
Press the ATT mode switch, and the Attachment mode is
selected. Now the Attachment mode indicator lights up.
Press it again, and the machine returns to the N mode and
the Attachment mode indicator goes out.
A Before selecting the ATT mode, be sure to stop the
machine and get it in the neutral position. If the
direction switch is in the forward or backward position,
the ATT mode is not achievable.
[R630]
TRAVELING
BStarting
To avoid personal injury or death:
A Fasten seat belt before operating the machine
A When transporting a load, keep the loader
bucket as low as possible to avoid tip over.
Be extra careful when working on inclines.
A Before operating, check operating area. Make
sure no bystanders are near the machine.
Sound the horn before moving.
To avoid personal injury or death:
A To start the machine on a slope, press the
accelerator pedal gradually while releasing the
inching pedal so that the machine does not
move backwards.
A Immediately after starting, check that the brake
and the steering wheel work normally.
A If a tire has blown, the machine may slip or
turnover. To avoid turnover, do not brake or
steer hard, brake slowly to stop the machine
gradually.
1. [R530]
Release the control lock lever.
[R630]
Deactivate the hydraulic lock switch.
2. Move the control lever to lift the bucket about 40 cm
(16 in.) above the ground and set it in the proper
position for travel.
3. Press the parking switch for releasing the parking
brake. When the parking brake is released, the light on
the parking switch comes off.
4. Set the direction switch to the desired position,
gradually increase the engine rpm by pressing the
accelerator pedal and the machine will move.

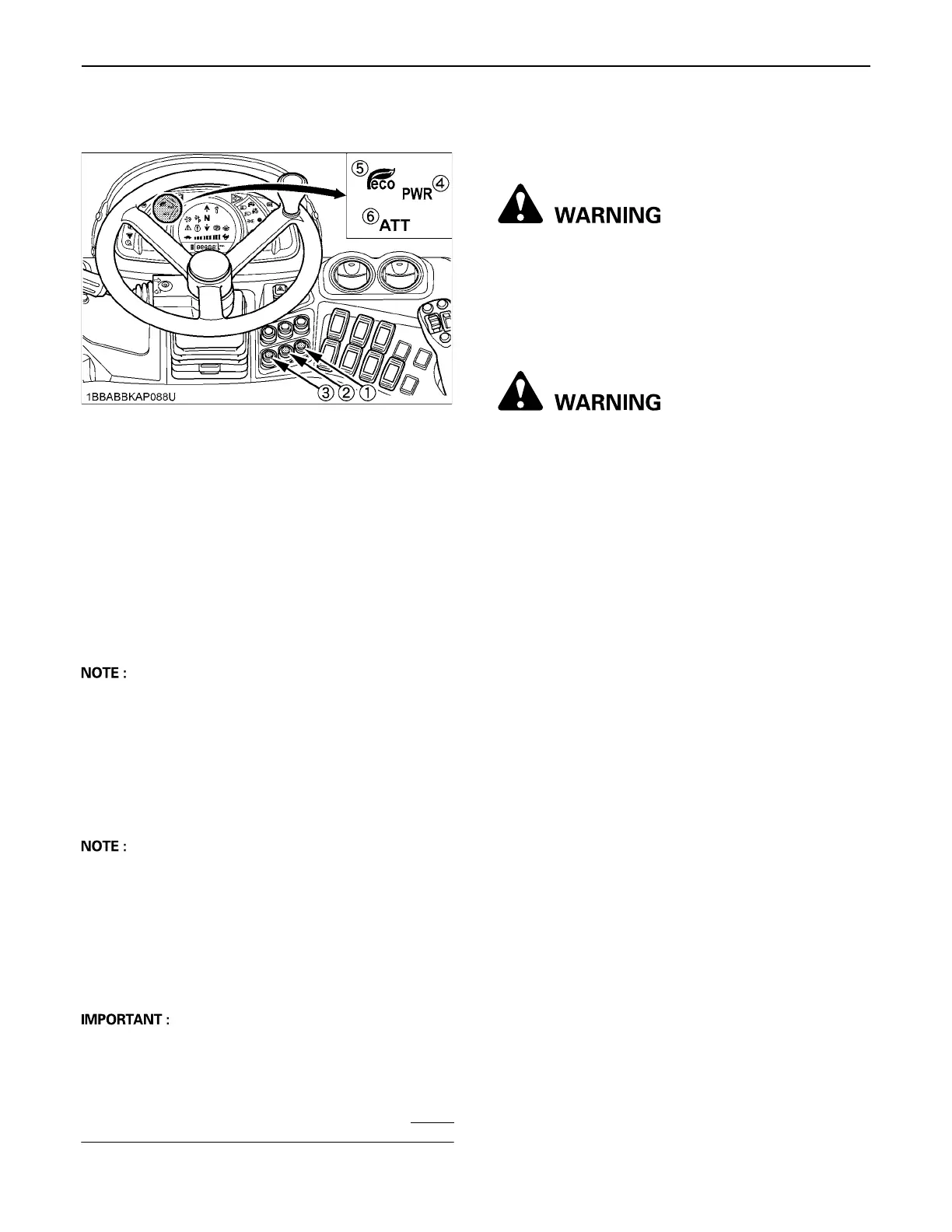

(1) Power mode switch
(2) ECO mode switch
(3) Attachment mode switch
(4) Power mode indicator
(5) ECO mode indicator
(6) Attachment mode indicator
