Diagnostics
Diagnostics with Global Drive Oscilloscope (GDO)
10
253
EDBCSXM064 EN 11.0
10.2 Diagnostics with Global Drive Oscilloscope (GDO)
The "Global Drive Oscilloscope" (GDO) is included in the scope of supply of the Lenze
parameter setting and operating program "Global Drive Control" (GDC) and the "Drive PLC
Developer Studio" (DDS) and can be used as an additional diagnostic program.
The GDO serves to record e.g. input and output data and device−internal states during
controller operation.
Note!
Detailed information about the functionality and handling of GDO can be
found in the Manual "Global Drive Oscilloscope (GDO), Getting started".
ECSXA480

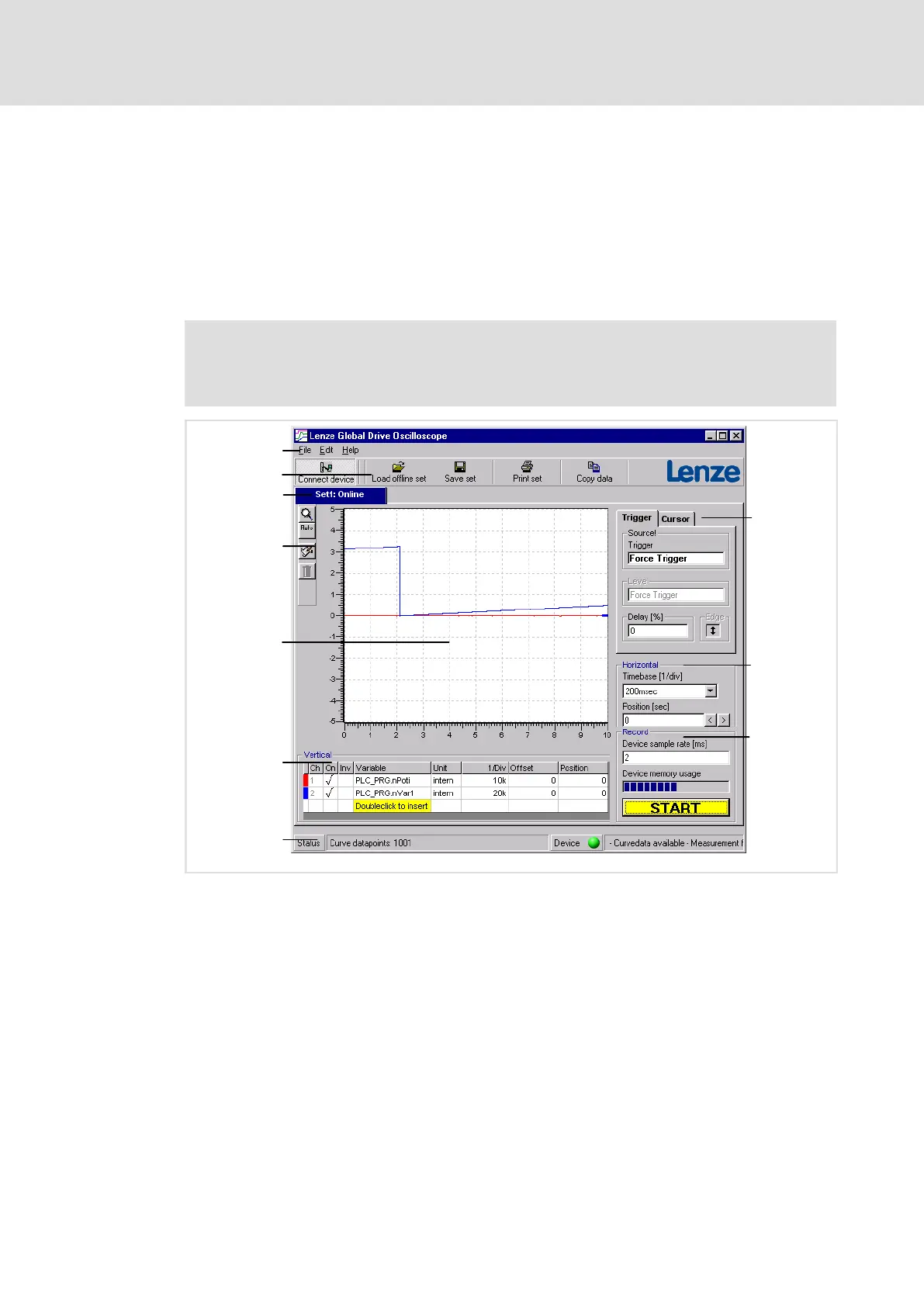

Fig. 10−4 Global Drive Oscilloscope (GDO)
Menu bar
Symbol bar at the top
Data sets
Symbol bar on the left
Graph display field
Vertical operating elements
Status display
Trigger/cursor operating elements
Horizontal operating elements
Operating elements for recording
