Lenze ECSEM Series User Manual

Mechanical installation
Mounting in cold−plate design
Dimensions
4

46
EDBCSXM064 EN 11.0
4.4.1 Dimensions
 Note!
Mounting with ECSZS000X0B shield mounting kit:
ƒ Mounting clearance below the module > 195 mm
c1
c1
a1
a1
e
g
g
g
b
g
a
d
b
a
0
1
³ 65 mm
³ 65 mm
ECSXA009

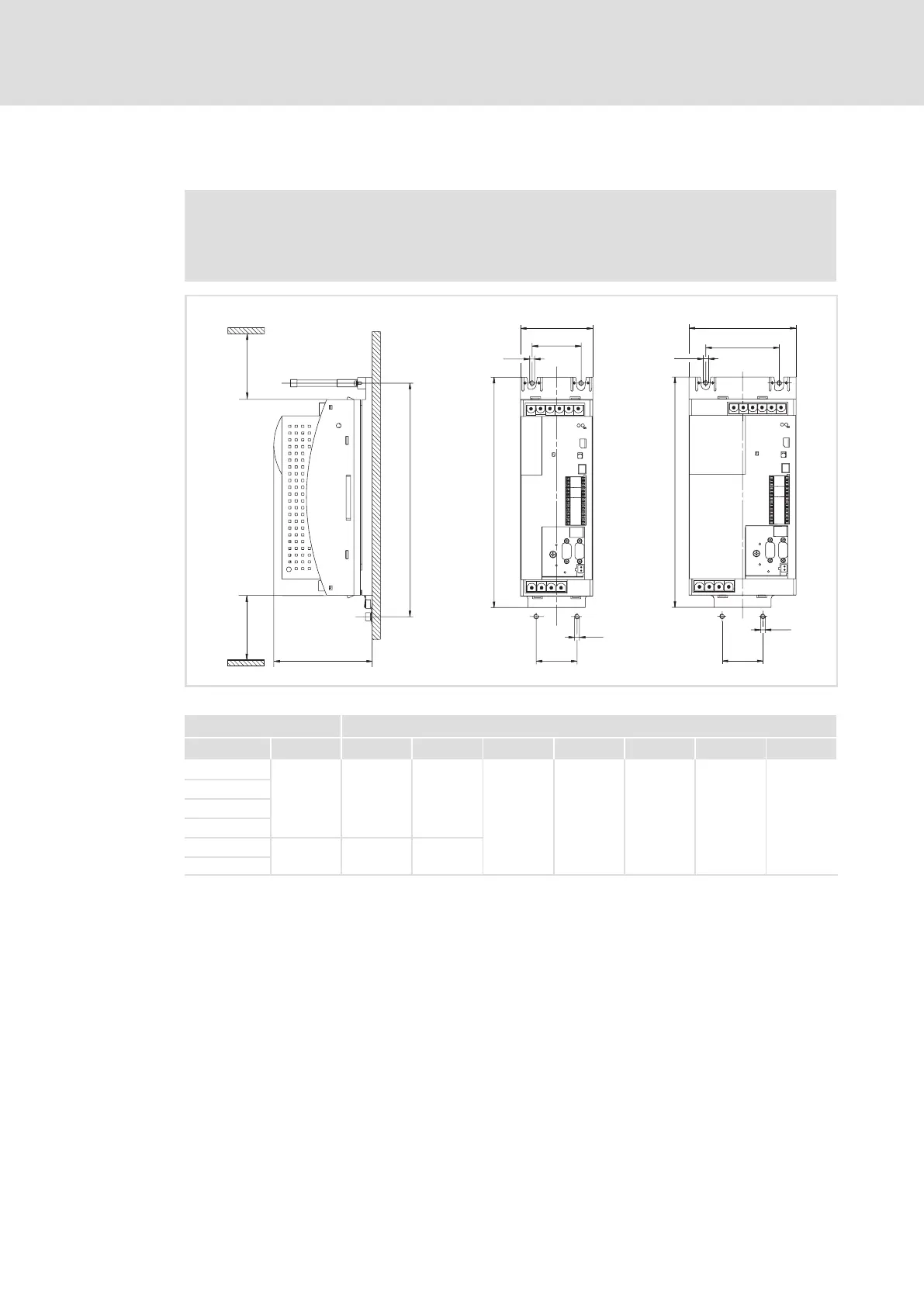

Fig. 4−5 Dimensions for "cold−plate design"
Axis module Dimensions [mm]
Type Size a a1 b c1 d e g
ECSC004

88,5 60
282 50 287
121
157
1)
M6
ECSC008
ECSC016
ECSC032
ECSC048
 131 90
ECSC064
1)
Max. 157 mm, depending on the plugged−on communication module

Application software: S = Speed & Torque P = Posi & Shaft
M = Motion A = Application
