Wiring the standard device
Basics for wiring according to EMC
Motor cables
5
5.2
5.2.3
5.2-2
EDSVF9333V EN 3.0-06/2005
ƒ If it is i nevitable to interrupt the motor cable (e.g. by chokes, contactors
or terminals):
– The unshielded c able length must not exceed 100 mm (depending on
the cable cross-section).
– Chokes, contactors, terminals etc. must be separated from the other
components (at least with a distance of 100 mm).
– Connect the shield of the motor c able to the mounting plate directly
before and behind the point of separation with a surfarce as large as
possible.
ƒ Connect the shield in the motor terminal box or on the motor housing
to PE.
– Metal glands at the motor terminal box ensure a connection of the
shield and the motor housing.

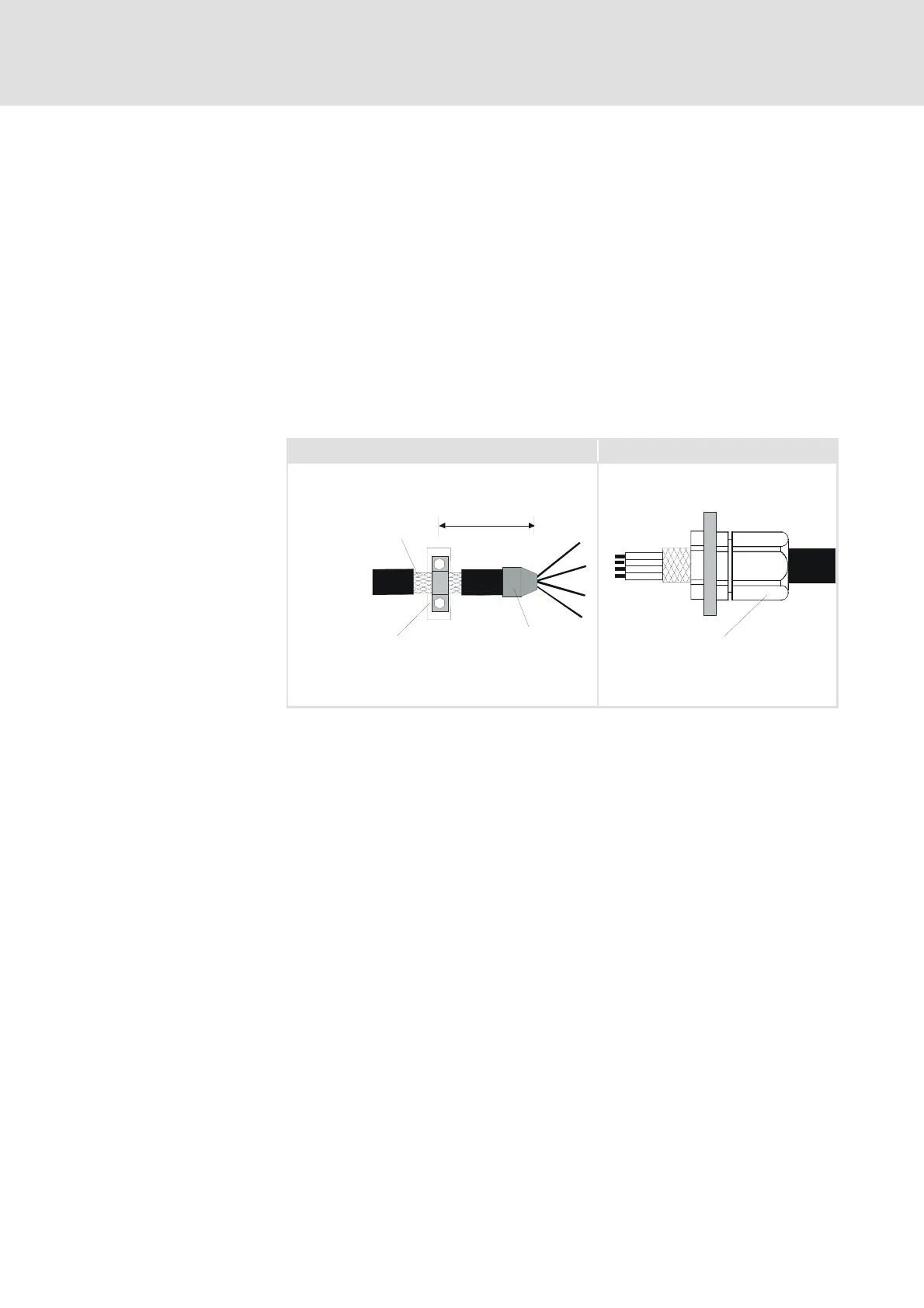

Motor supply cable Cable gland
Motor supply cable
max. 500mm
Extensive
contact of the
cable shield
Braid
Heat-
shrinkable tube
Cable connector according to EMC
for cable glands with high
degree of protection.
Cable gland
Fig. 5.2-1 Shielding of the motor cable
