Lifasa MASTER control Var User Manual

3�5�4�- 3 VOLTAGES + NEUTRAL AND 1 CURRENT, CONTROLLER MASTER CONTROL
VAR FAST 12 MODEL�
Connection type: 3U.1C
VLN
IL2
S1
L1
L2
L3
N
VL1 VL2 VL3
S1 S2
P1
P2
S1 S1S2 S2 S2
IL3
IL1
A1 A2
Power Supply
COM 1 2 3 4 5 6 7 8 9 10 11 12
COM
ACT C1...C12
Power Supply

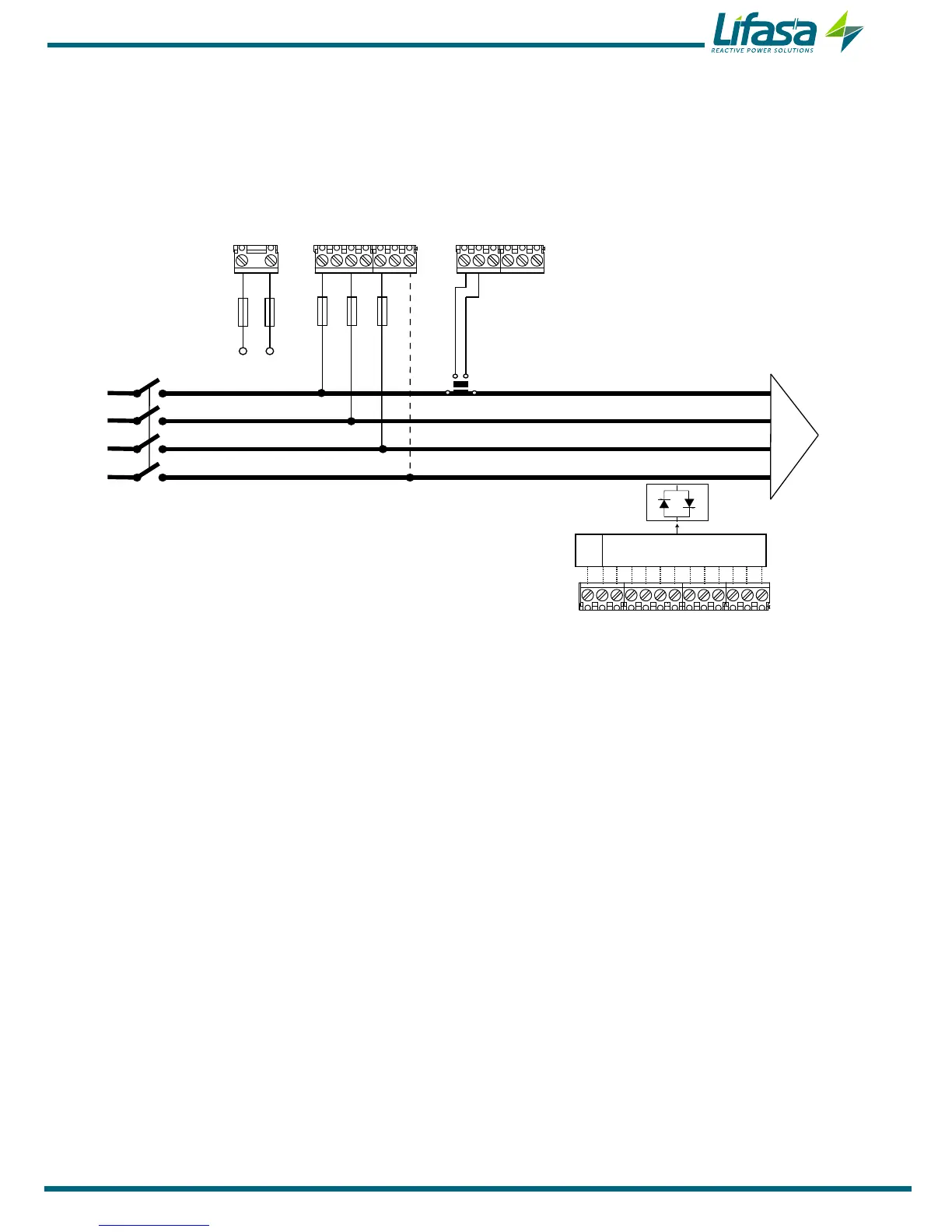

Figure 6: 3 voltages + Neutral and 1 current, Controller MASTER control VAR FAST 12 model�
Note: If the connection layout mentioned above is not respected, you must adjust the phase
following the procedure described in section "5�6�- PHASE CONNECTION”
Note: In this type of connection, the connection from Neutral to V
LN
is not mandatory.
Note: In this type of connection, the current transformer must be connected to the IL1 termi-
nals.
17
Instruction Manual
Controller MASTER control VAR FAST
