The key decreases the digit value.
The key skips to the previous digit.
The key skips to the next digit.
Press to validate the data; the symbol disappears from the display.
Lo Value and HI Value:
Maximum value: 9999.
Minimum value: 1
If the value entered is lower than the minimum value or higher than the maximum value,
the backlight of the display ashes and the value entered is replaced with the minimum or
maximum value, or with the last value validated.
Press the key to access the next programming step.
If no keys are pressed for 5 minutes, the unit switches to the simulation screen, “5.27.-
SIMULATION SCREEN”.

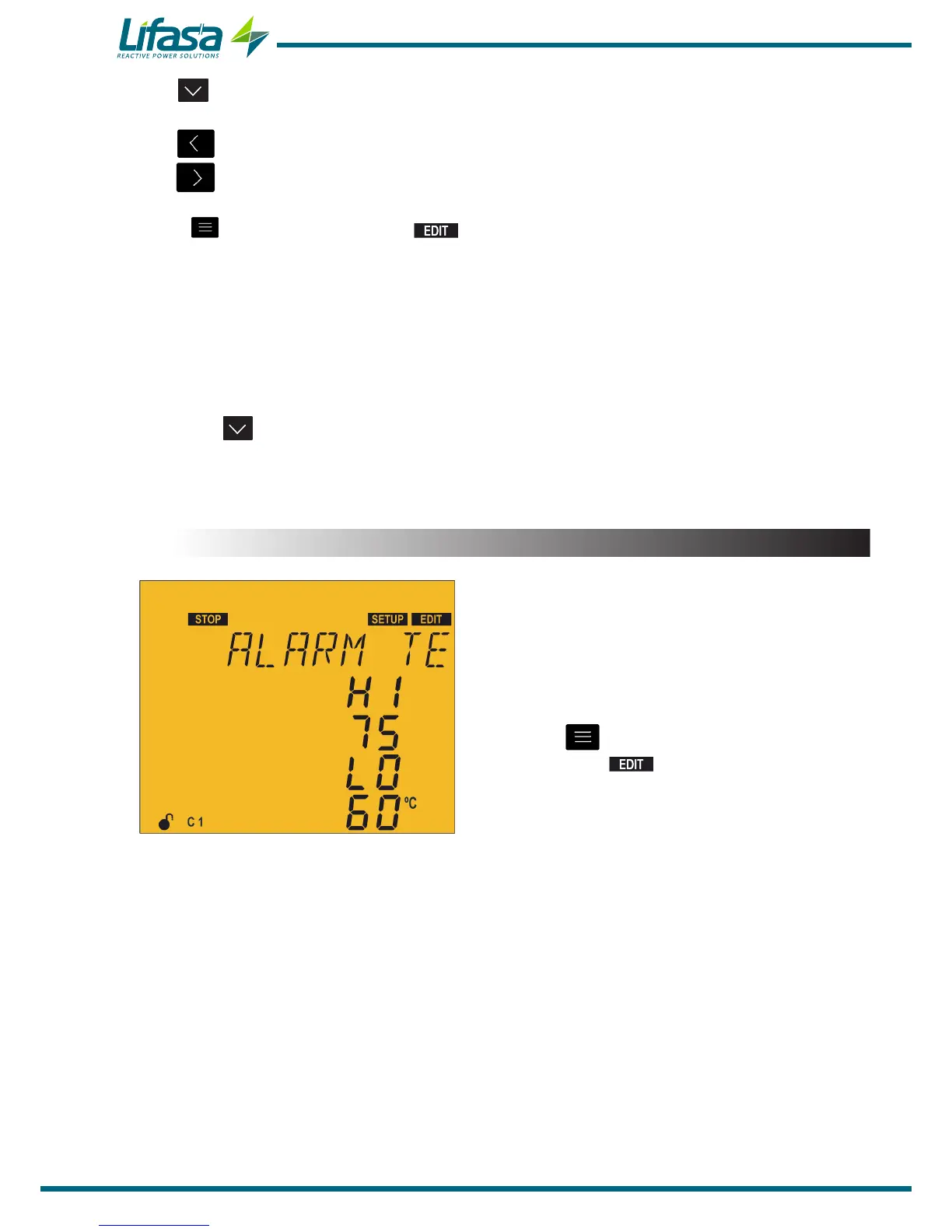

5.24.- TEMPERATURE ALARM
In this point the thresholds above which the
temperature alarm (E10) is activated can be
configured.
The alarm must be enabled ( “5.19.- ENABLING
ALARMS”)
Press the key to enter editing mode. It is
identified by the symbol and the blinking of
the digits to be modified.
The parameters to be configured are:
The Lo value : when the unit exceeds this value for 30 minutes, alarm E09 is
triggered, and if alarm E11 is enabled, the Controller MASTER control VAR FAST unit
enters No Connection status and activates alarm E11.
The HI value: if the unit exceeds this value for 30 seconds, alarm E09 is triggered,
and if alarm E12 is enabled, the Controller MASTER control VAR FAST unit enters
Disconnection status and activates alarm E12.
If the unit falls back under the Lo value for 10 minutes, it deactivates the alarms and returns
to the normal operating status.
98
