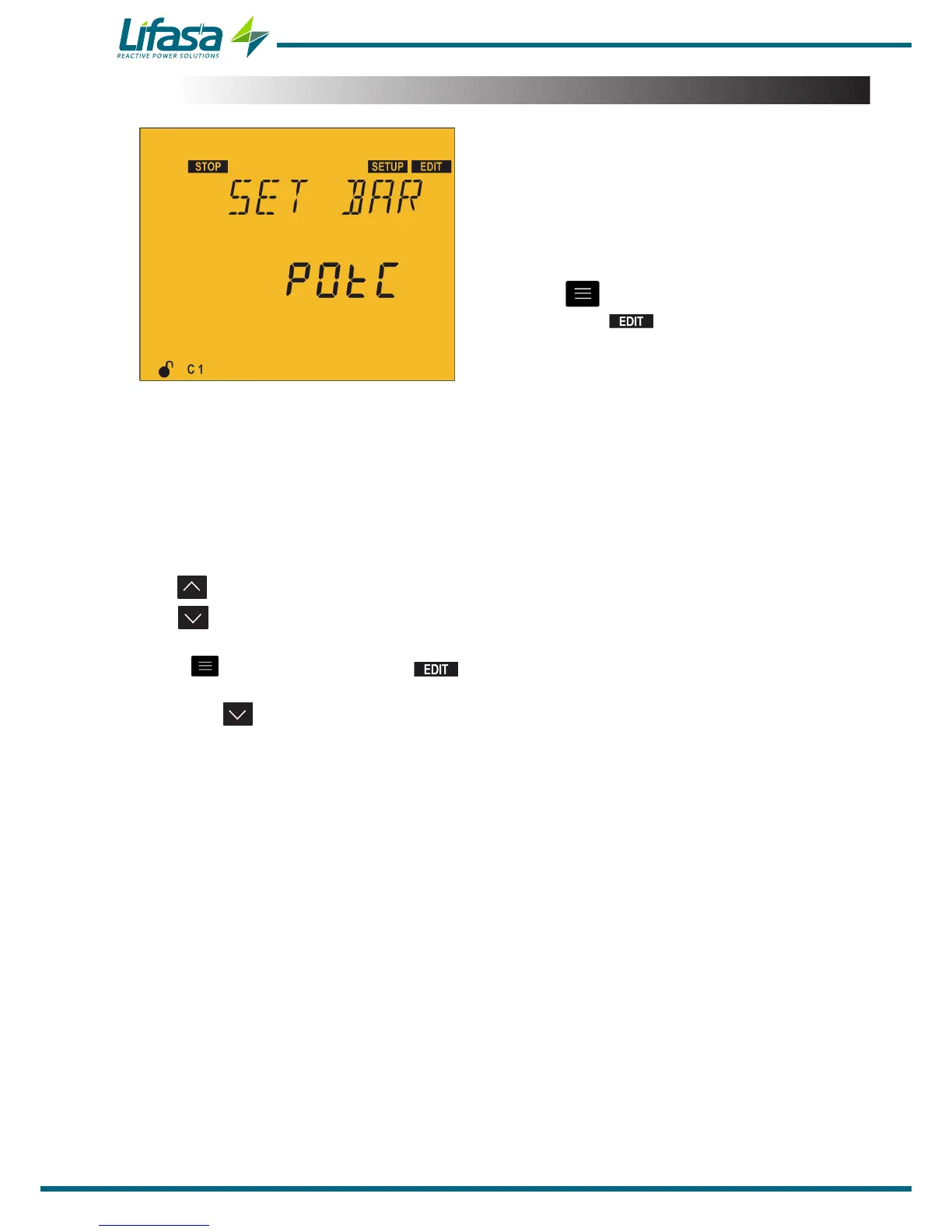

5.14.- ANALOGUE BAR
At this point the parameter to be displayed in the
analogue bar is configured ("4.4.3. ANALOGUE
BAR”)
Press the key to enter editing mode. It is
identified by the symbol and the blinking of
the digits to be modified.
The following display options are available for the analogue bar:
POTC: the percentage of power connected to the capacitor bank relative to the total
power.
THdI: the Current THD of each phase.
I: the current % of each one of the phases.
nO: no parameters are displayed.
The key shows the next option.
The key shows the previous option.
Press to validate the data; the symbol disappears from the display.
Press the key to access the next programming step.
If no keys are pressed for 5 minutes, the unit switches to the simulation screen, “5.27.-
SIMULATION SCREEN”.
88
