5.1.- PLUG&PLAY
Press the key to switch from OFF to START
Press the key to start the Plug&Play function. Once started, the unit undertakes a process
of connecting and disconnecting capacitors, measurement and calculation in order to obtain
the following parameters of the capacitor bank:
Connection type,
Phase,
Number of steps.
Program
C/K factor,
These parameters can also be congured manually from their respective screens.

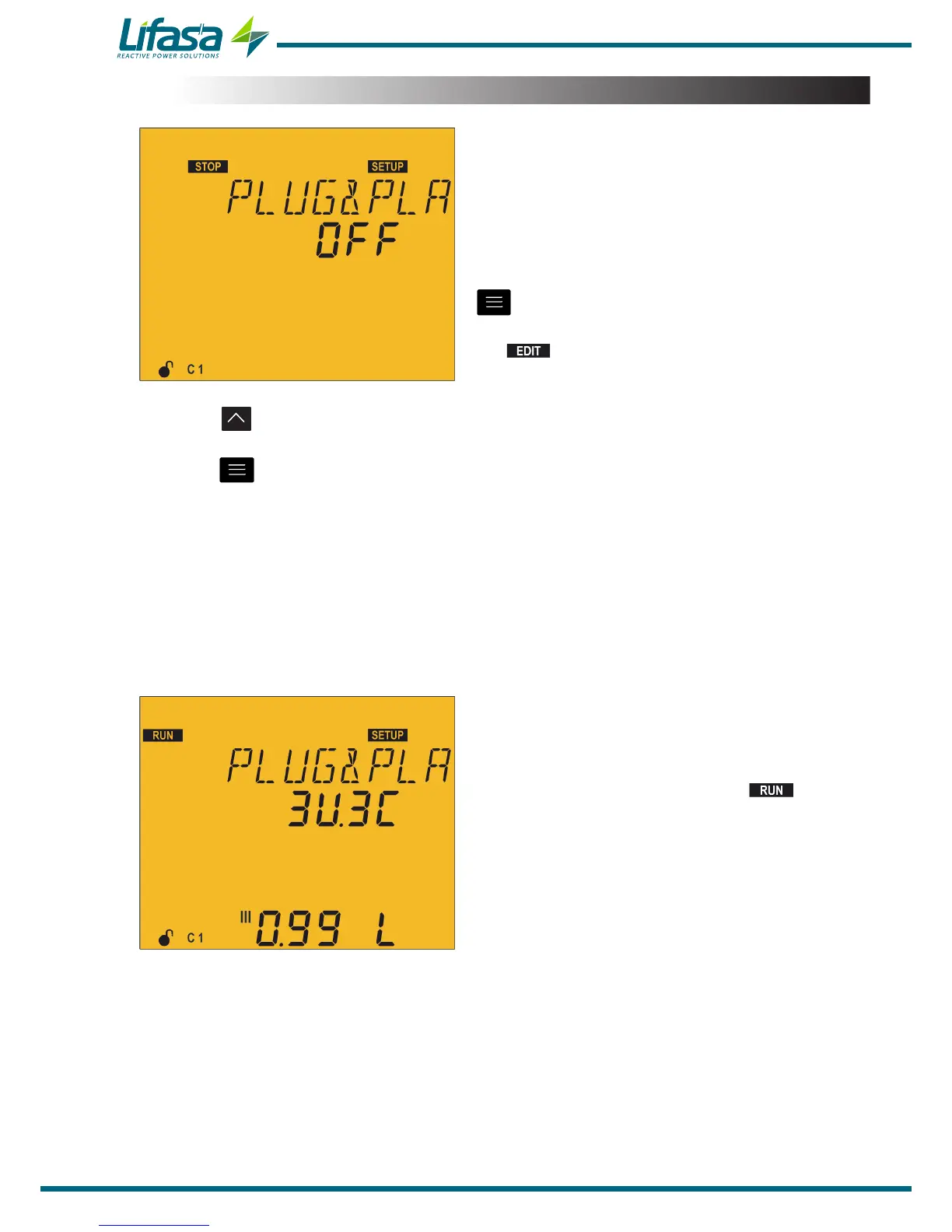

When the Plug&Play process of the unit is active,
this screen is displayed with the symbol
blinking (it may take several minutes).
The capacitors are connected and disconnected
during the process and this will be displayed on
the screen.
Once the Plug&Play function of the unit ends, if no errors occurred during the process, the
results are shown by the display on two screens, as follows:
The Plug&Play function assists the user during
the configuration of the unit, since it automatically
configures the basic parameters that are required
for the unit to perform its regulation functions
correctly.
To start the Plug&Play process, press the
.
The process enters editing mode. It is identified by
the symbol and the blinking of the digits of
the display.
72
