3�5�7�- LEAKAGE CURRENT CONNECTION, IΔ
To measure the leakage current, an earth leakage transformer must be used, such as WGS.
The leakage current transformer must be connected such as to measure the current of the
capacitor bank. This will detect any leakage in the capacitors of the capacitor bank.
~
TC
LOAD
CAPACITORS
S1
S2
P1
P2
I∆
S1
S1
S2
S2
IL1, IL2, IL3

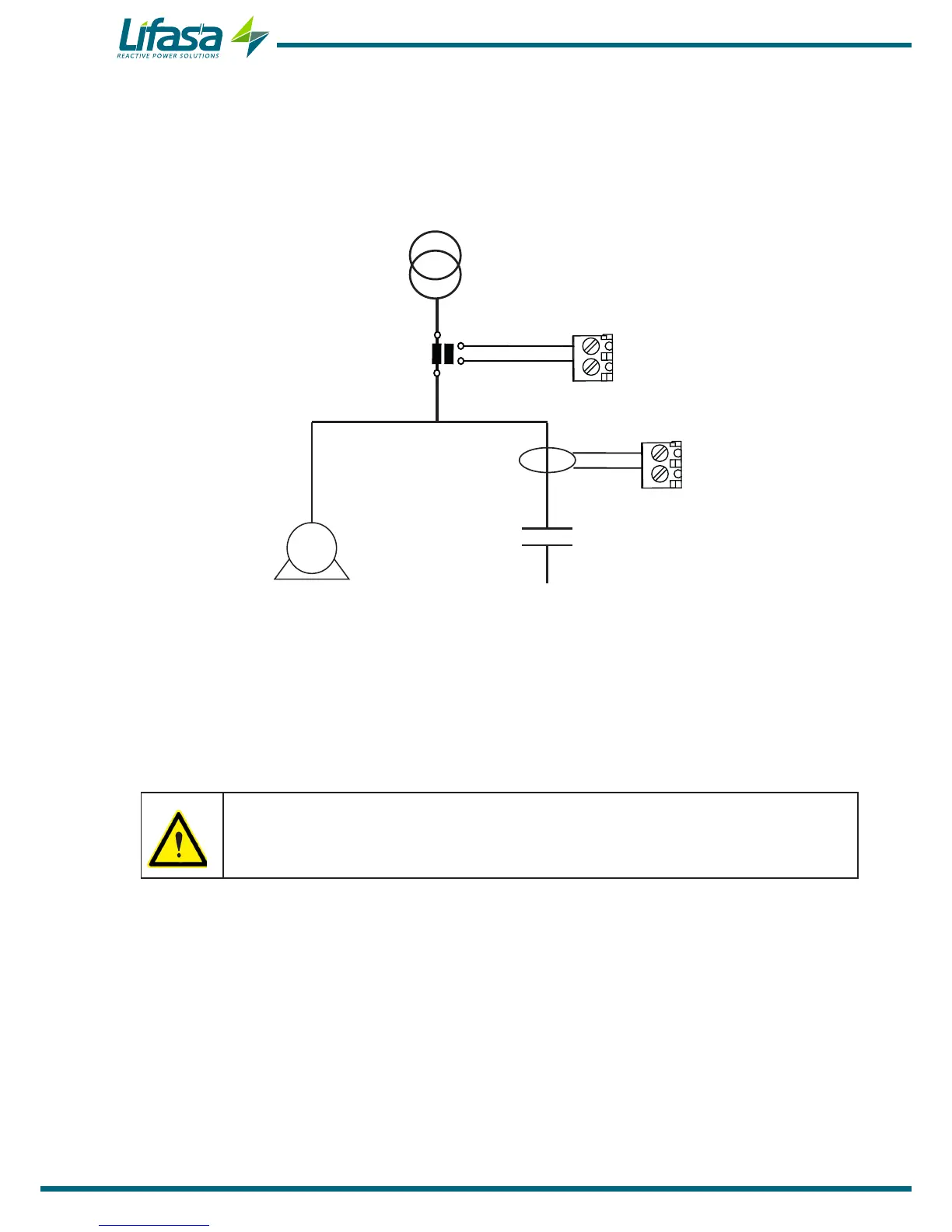

Figure 9: Connection of the leakage current transformer (IΔ)�
Note: The earth leakage transformer must have a ratio of 500 turns. The maximum leakage
current that the unit can measure correctly is 1.5A AC, even though the maximum input is 5A
AC via the earth leakage transformer.
Do not operate the leakage current transformer with the Controller MASTER
control VAR FAST powered on.
20
Controller MASTER control VAR FAST
Instruction Manual
