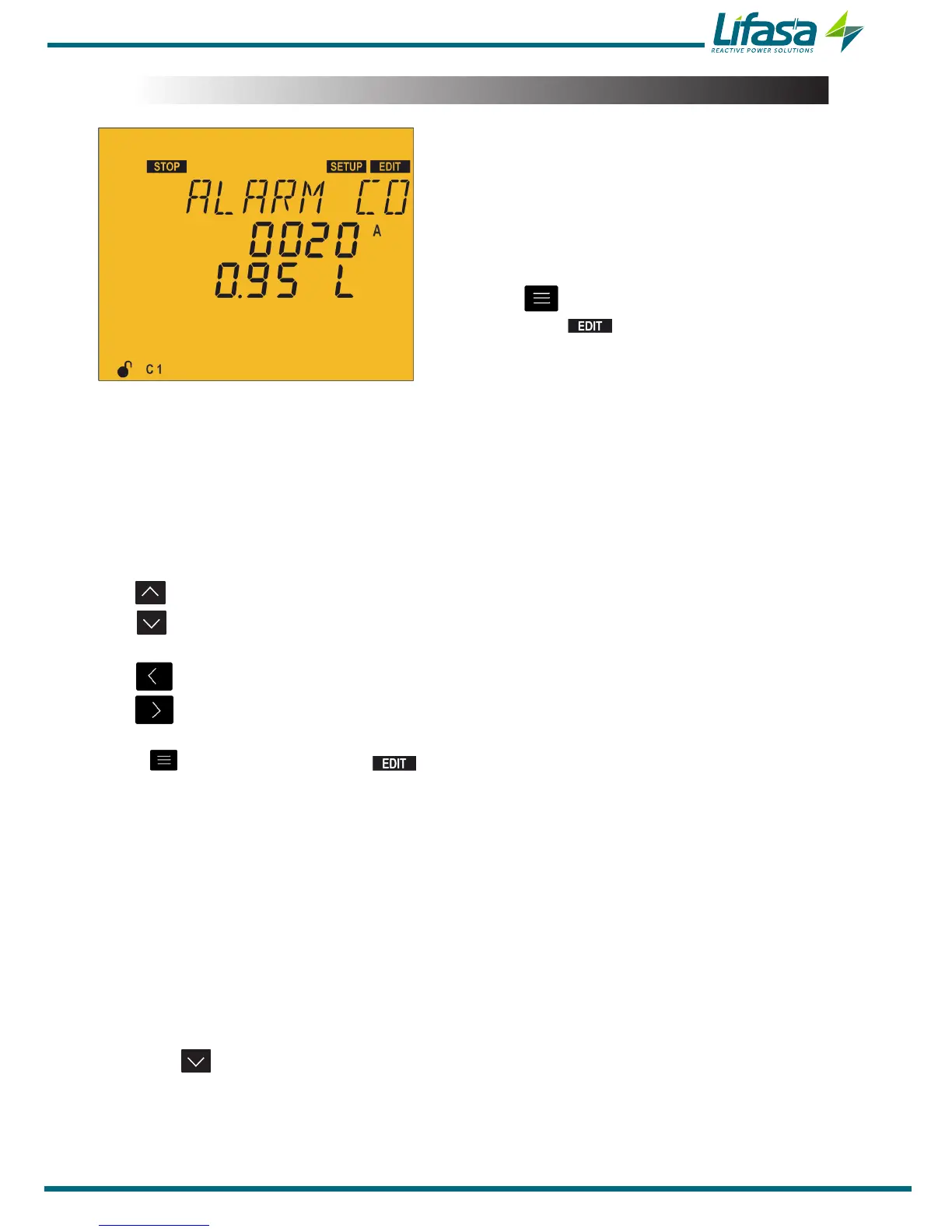

5.21.- COS φ ALARM
In this point the limit for action of the cos φ alarm
can be configured.
It is activated every time the value of the cos φ
drops below the configured value and the current
is higher than programmed.
The alarm must be enabled ( “5.19.- ENABLING
ALARMS”)
Press the key to enter editing mode. It is
identified by the symbol and the blinking of
the digits to be modified.
In order to avoid possible false activations of said alarms, they have a predefined delay of 15
seconds.
The parameters to be configured are:
The current value�
The cos φ value and whether it is inductive L or capacitive C.
The key increases the digit value or shows the next option.
The key decreases the digit value or shows the next option.
The key skips to the previous digit.
The key skips to the next digit.
Press to validate the data; the symbol disappears from the display.
Current:
Maximum value: 9999 A
Minimum value: 0 A
cos φ:
Maximum value: 1.00
Minimum value: 0.80
If the value entered is lower than the minimum value or higher than the maximum value,
the backlight of the display ashes and the value entered is replaced with the minimum or
maximum value, or with the last value validated.
Press the key to access the next programming step.
If no keys are pressed for 5 minutes, the unit switches to the simulation screen, “5.27.-
SIMULATION SCREEN”.
95
