Faults

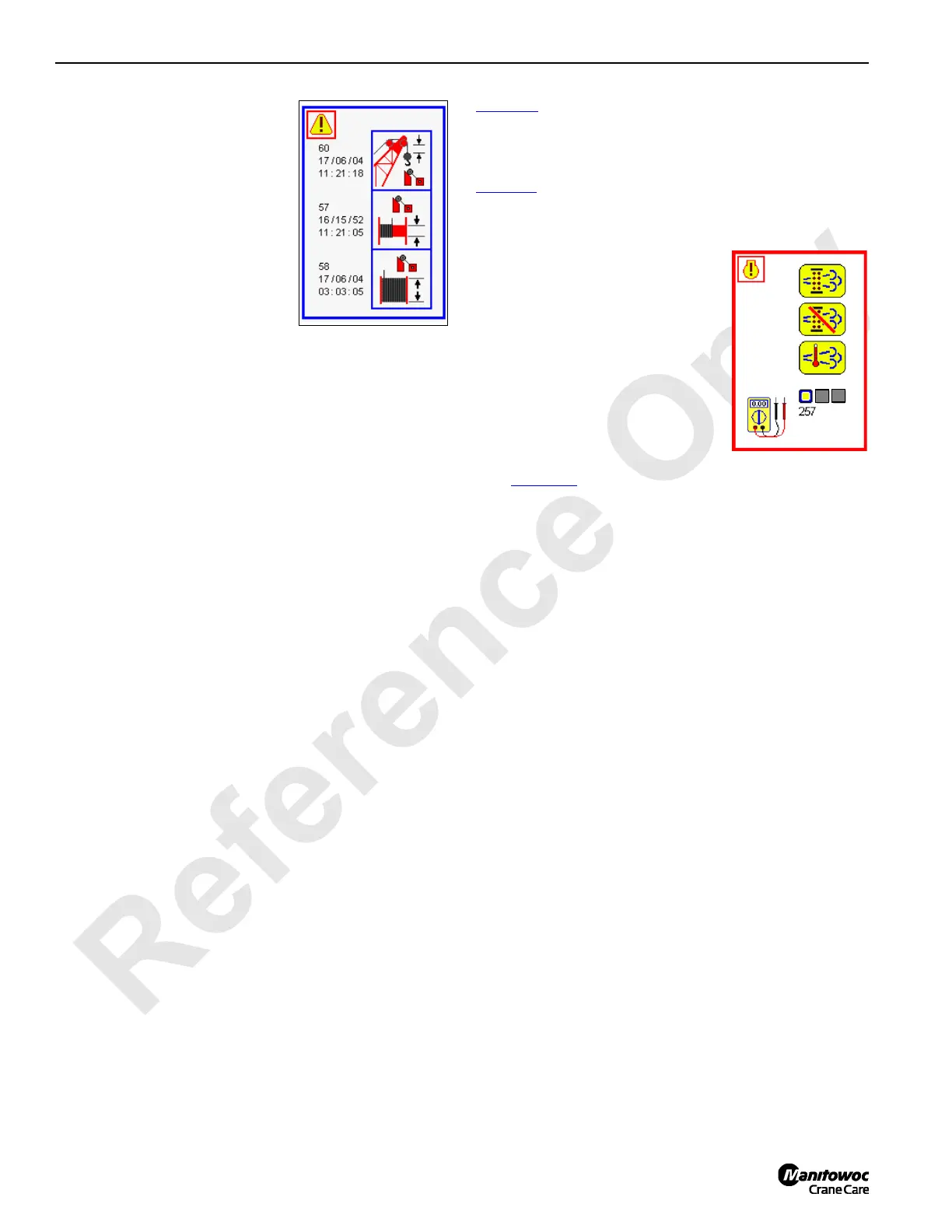

The fault data box displays the fault
icon with the fault number, date, and
time of day listed in the order they
occurred.
When one or more faults are
enabled, an alarm turns on to warn
the operator. The yellow alert
symbol is displayed on active
screen if a fault occurs. In order to
identify the fault, operator shall
access Information screen. When
the fault data box is selected, the
screen scrolls through the current faults one icon at a time.
The fault history goes back in time to review past faults.
Press the Enter button to access level 2 and use Select
buttons to view past fault history. Press the Exit button to exit
the fault screen. The alarm turns off when the cause of fault
is corrected. Depending on crane configuration, not all listed
faults are active or some of the faults listed may not be on
your crane.
Table 3-5
lists the Operating Limit faults that can appear in
the fault screen. Operating limits faults will stop crane
operation in the direction of the fault. Corrective action
must be take before continuing crane operation.
Table 3-6
lists the System Faults that can appear in the fault
screen. System faults will not stop crane operation. Correct
all faults as soon as possible.
Engine Prompt — Diesel
Particulate Filter
The Engine Prompt detail screen
displays the three Diesel Particulate
Filter (DPF) conditions (see Engine
Operation and Maintenance Manual):
• DPF Regeneration In Progress
• DPF Regeneration Inhibited
• High Exhaust System
Temperature
(See page 3-34
for details on engine prompts).
