POWER TRAIN 14000 SERVICE MANUAL
7-4
Published 09-10-14, Control # 065-24
Battery Assembly Identification
See Figure 7-3 for the following procedure.
Current production Tier 3/4 battery box assembly is located
and mounted directly above the fuel tank, right side of the
crane. Reference for correct orientation and mounting
location of batteries and battery cables.

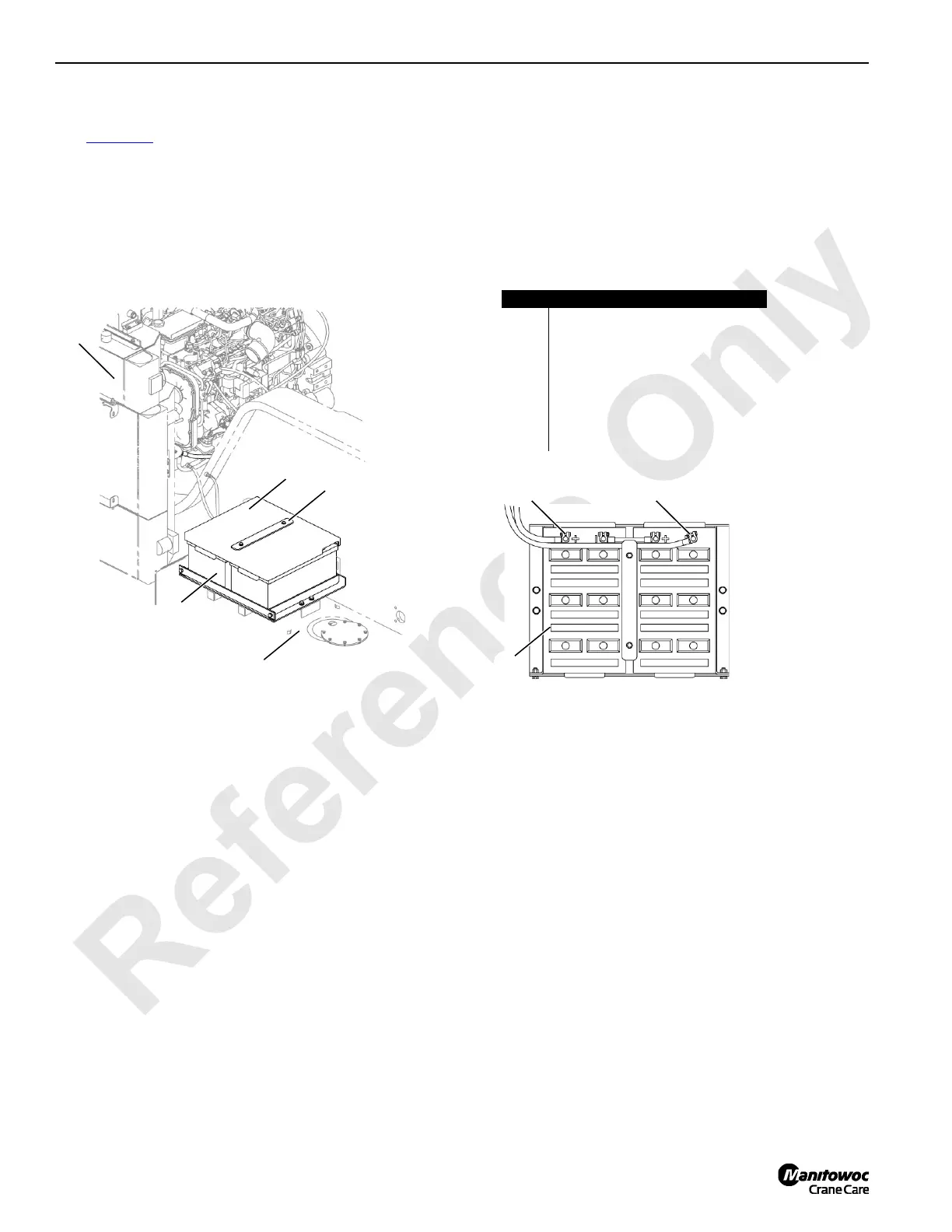

FIGURE 7-3
6
1
2
5
Item Description
1 Radiator
2Battery Box Cover
3 Battery Mount Clamp
4Battery
5 Fuel Tank
6 Positive Terminal (Red Boot)
7 Negative Terminal (Black Boot)
8 Rubber Insulating Strip
3
4
8
7
