14000 SERVICE MANUAL ELECTRIC SYSTEM
3
On (I) and off (0) icons in some data boxes
indicate and enable the electrical status of
item.
Drum Functions

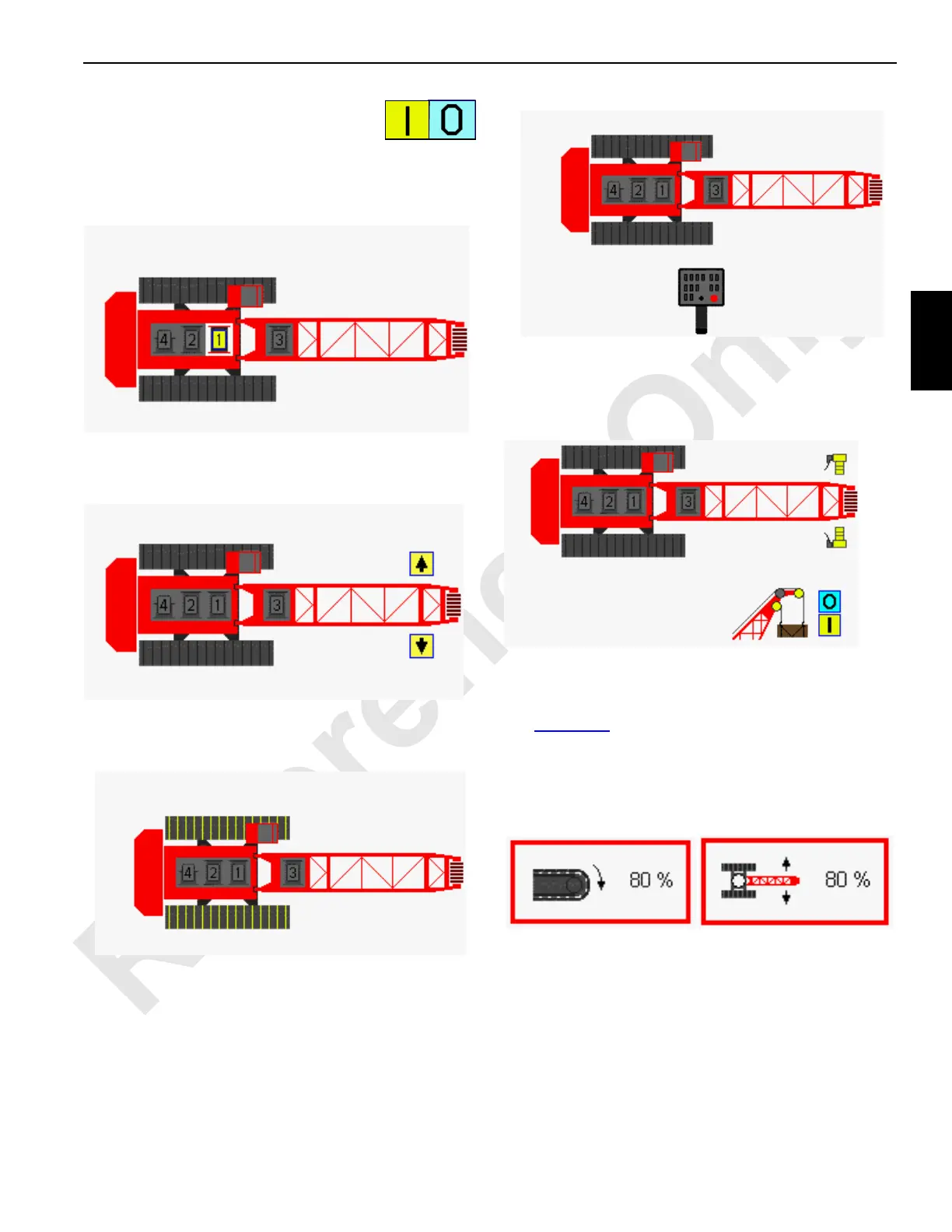

Select drum functions 1 through 4 from screen shown below.
Swing Functions
Select swing functions from screen shown below.
Travel Functions
Select travel functions from screen shown below.
Remote Control Functions
Select remote control functions from screen below
Multiple Points or Load Pin
Disable Functions
Select multiple points or load pin disable functions from
screen below.
Swing or Track Speed Limits
See Figure 3-25 in the following procedure.
Swing and crawler speeds can be selected. In level 3, the
value shown in these data boxes can be adjusted with Select
buttons to limit the function speed between 25% and 100%
of maximum capability.
FIGURE 3-20
14COM3-31
Drums
FIGURE 3-21
Swing
14COM3-35
FIGURE 3-22
Travel
14COM3-37
Remote Control
FIGURE 3-23
14COM3-45
Multiple Points
Load Pin Disable
FIGURE 3-24
14COM3-90
FIGURE 3-25
Swing Speed Limits
14COM3-46b
Crawler Speed Limits
