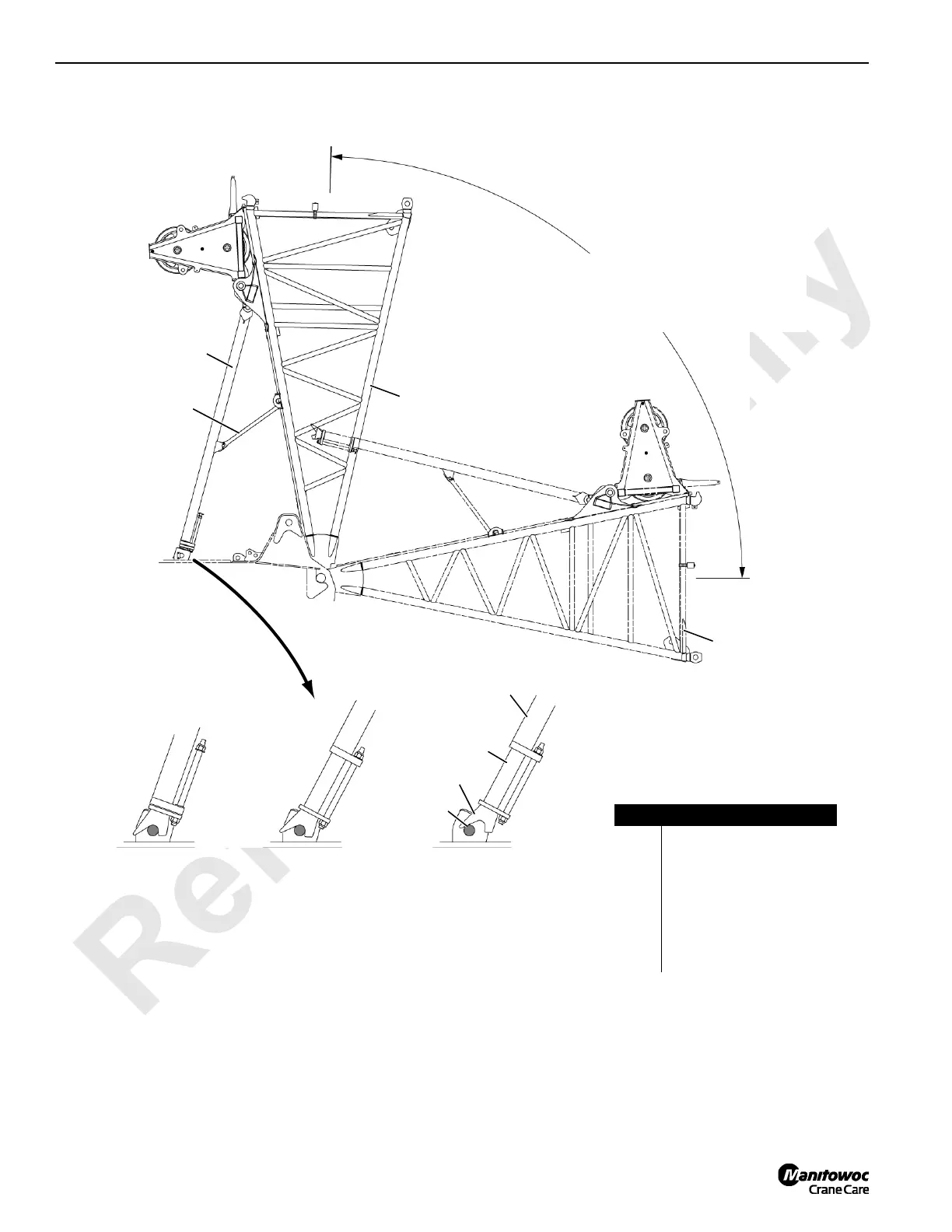

FIGURE 4-3

• 77.6° - Initial Contact — see View B

• 79.2° - Start of Spring Cushioning — see View C

• 89.5° - Physical Stop (springs solid) — see View D

View D

Boom at 89.5°

Physical Stop

(springs solid)

Item Description

1Boom Butt

2 Physical Boom Stop

3Strut

4 Outer Tube

5 Inner Tube

6Rod End

7Boom Stop Pin

View B

Boom at 77.6°

Initial Contact

View C

Boom at 79.2°

Start of Cushioning

14CSM4-3

Manitowoc 14000 Service And Maintenance Manual
