Display & Cine Review 6-5
Roll the trackball to the left, the review progress slider moves to the left, the images moves to
the right, and the earlier stored images are invoked. Whereas, roll the trackball to the right,
the review progress slider moves to the right, and the images move to the left, the recently
stored images are invoked. When you review the images until the earliest or the latest frame,
further rolling the trackball will display the last or first frame.

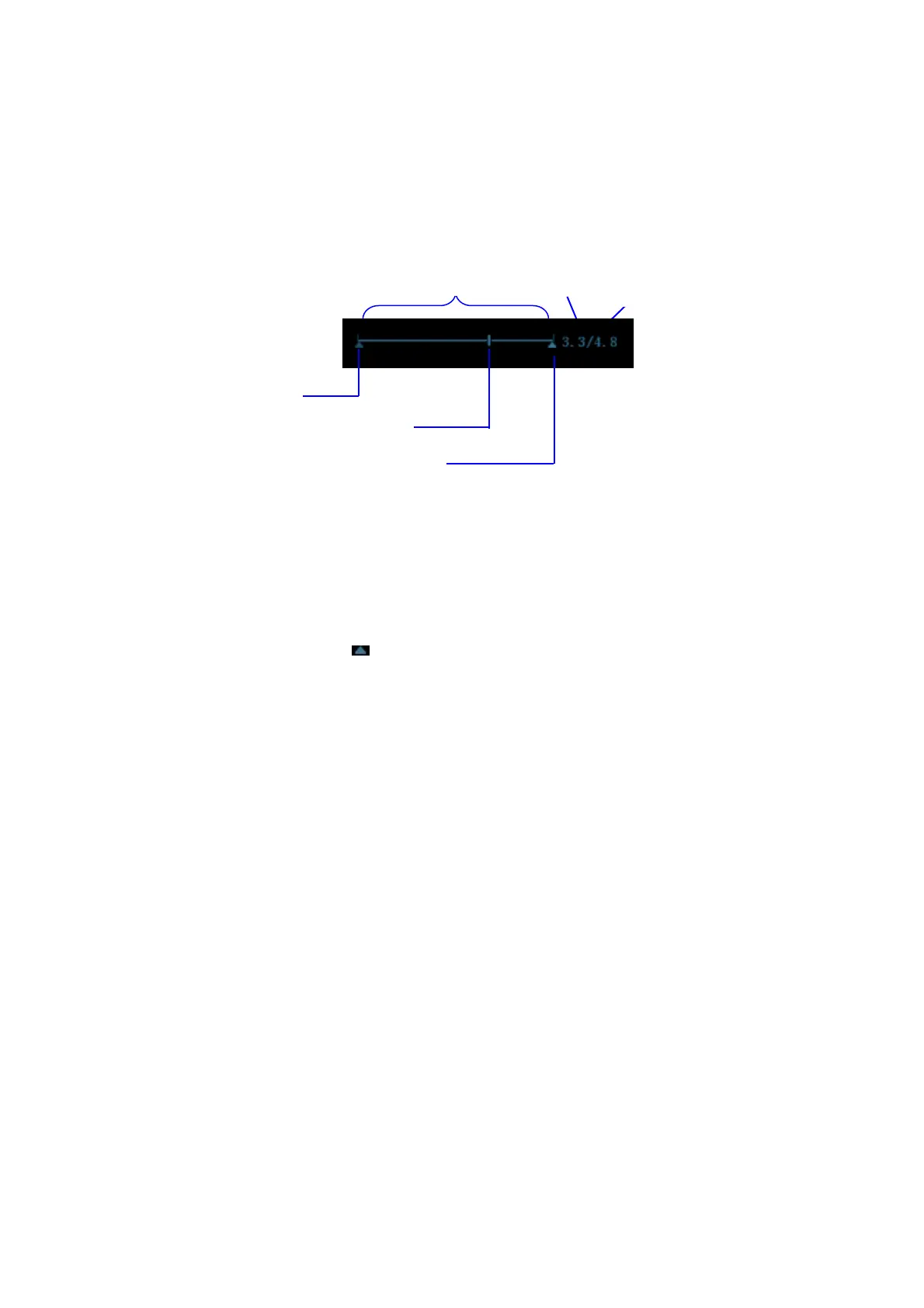

The cine progress bar at the bottom of the screen (as shown in the figure below):
Cine review operations are the same as those of 2D mode.
Tips: There is no audio when the spectrum is reviewed in manual status but audio
synchronization can be realized in auto review status with speed of ×1.
6.2.4 Linked Cine Review
The linked cine review refers to review of the images captured at the same moment.
There displays the frame mark
on the time mark of M/ PW image indicating the current 2D
image.
In dual or quad split display mode, you can only review images of the current active window,
use <Dual> or <Quad> to switch the window.
6.3 Image Compare
6.3.1 Image Compare in Review Mode
1. Press <Review> to enter Review screen, press <Ctrl>+<Set> to select files to be
compared.
Tip: for B/ B+Color/ B+Power mode image, you can select at most 4 images; for M/ PW
mode image, you can select at most 2 images.
2. Click [Compare] to enter image compare mode.
3. Review the images of different image windows (cine replaying can’t be performed for
single-frame image file), press <Dual> or <Quad> key to switch the active image window.
The window with the highlighted “M” mark is the current activated window.
Press <Cursor> and double click the image in the thumbnail area at the bottom of the
screen to change the current active window
4. Save the image if it is necessary.
5. Click [Return] on the screen or press <Freeze> to exit image compare.
Image compare of different exams for the same patient:
a) Select different exams in iStation screen, select [Review] in the popped up menu
to enter Review screen.
