B-2 iWorks (Auto Workflow Protocol)
B.3 Screen Display
Normal iWorks

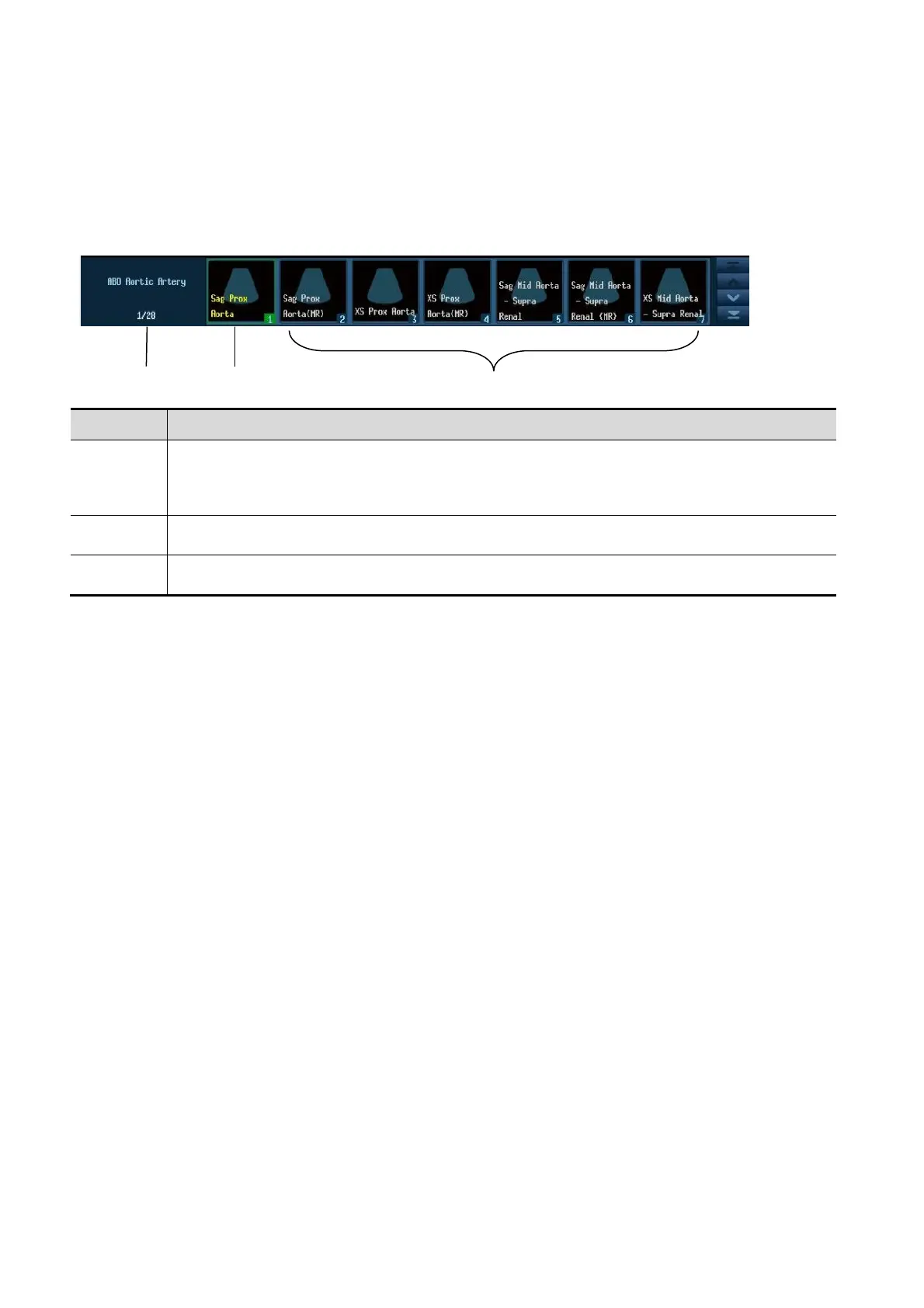

For automated protocols of vascular, small parts, cardiac, abdomen and gynecology application regions,
the monitor displays the following screen:
Name Description
1
Displays the protocol name, and the number of views contained;
There may be prompt information here to indicate the following operation.
2
The current active view, with green solid frame around the image.
3
Displays the view steps in the protocol.
B.4 View Operation
In iWorks status, you can perform view selection on the screen.
For some views, the system switches to the relevant imaging modes if necessary.
The comment for the current view has been automatically added to the lower left corner of the image,
ready for you to scan the specified anatomy.
B.4.1 View Selection
Click [Previous]/[Next] to select the view to be scanned, the current view is around by a green solid
frame.
B.4.2 View Operation
In the current active view, you can perform image scanning, measurements, adding comments and
body mark and etc. Operations are the same as those in manual operation; please refer to relevant
chapters for details.
B.4.3 View Saving
After the view measurement is completed, press the save key to save the information to the current
patient. Check the detailed measurement information in [Review] page or in iStation.
