Chapter 5 Maintenance and Inspection
Compound 2-stage Screw Compressor 3225**C 5.4 Disassembly and Inspection
5-27
5.4.8 Removing Oil Injection Pipe
The oil injection pipe [85] is located at the bottom of the low-stage suction cover [5-1].
5.4.8.1 Disassembly
Remove the oil injection pipe gland [164], and then hold a M20 bolt screwed into the screw hole on the
head of the oil injection pipe to pull out the pipe.

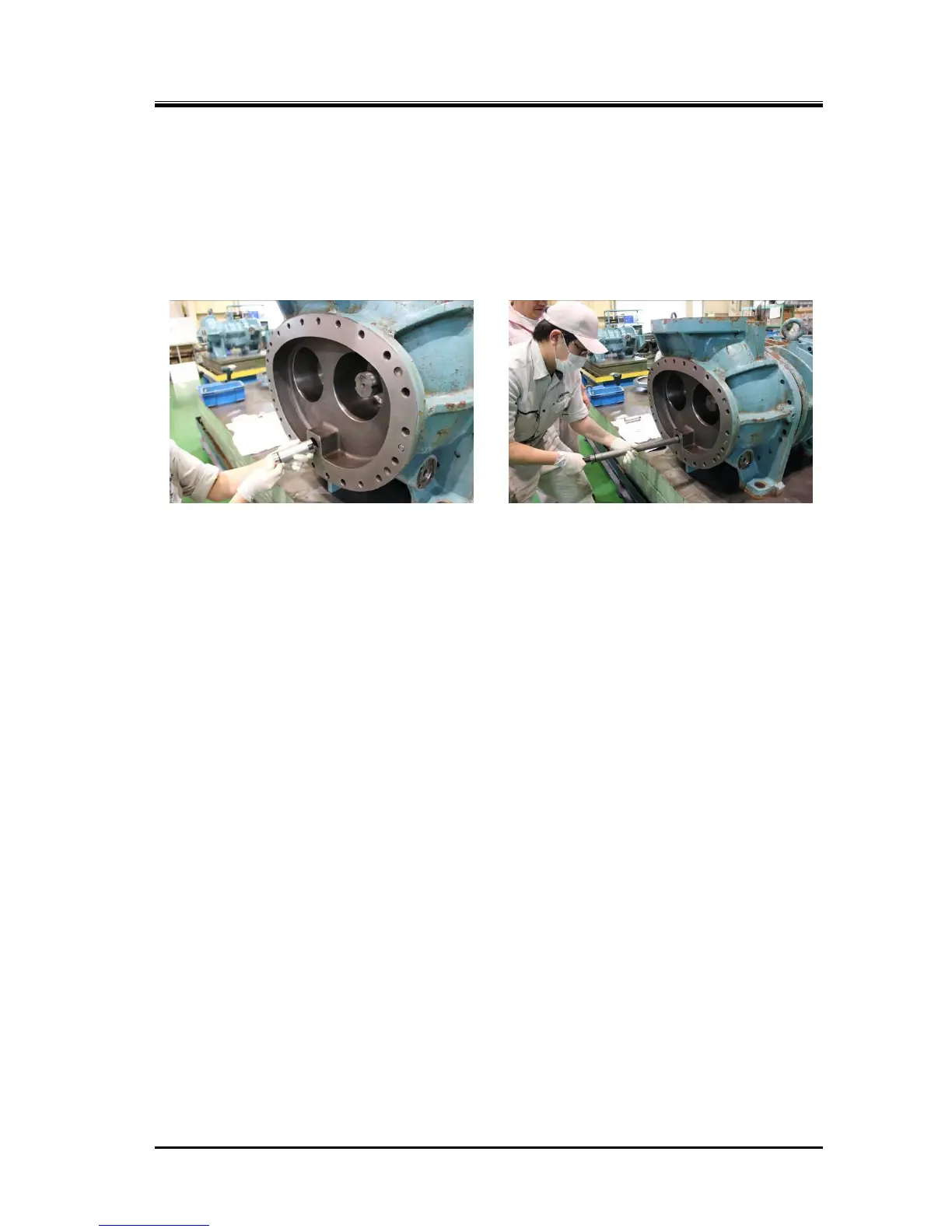

Photo 029 Removing Oil Injection Pipe
Photo 030 Removing Oil Injection Pipe
