72 NIBE F1330
Miscellaneous
Technical specifications

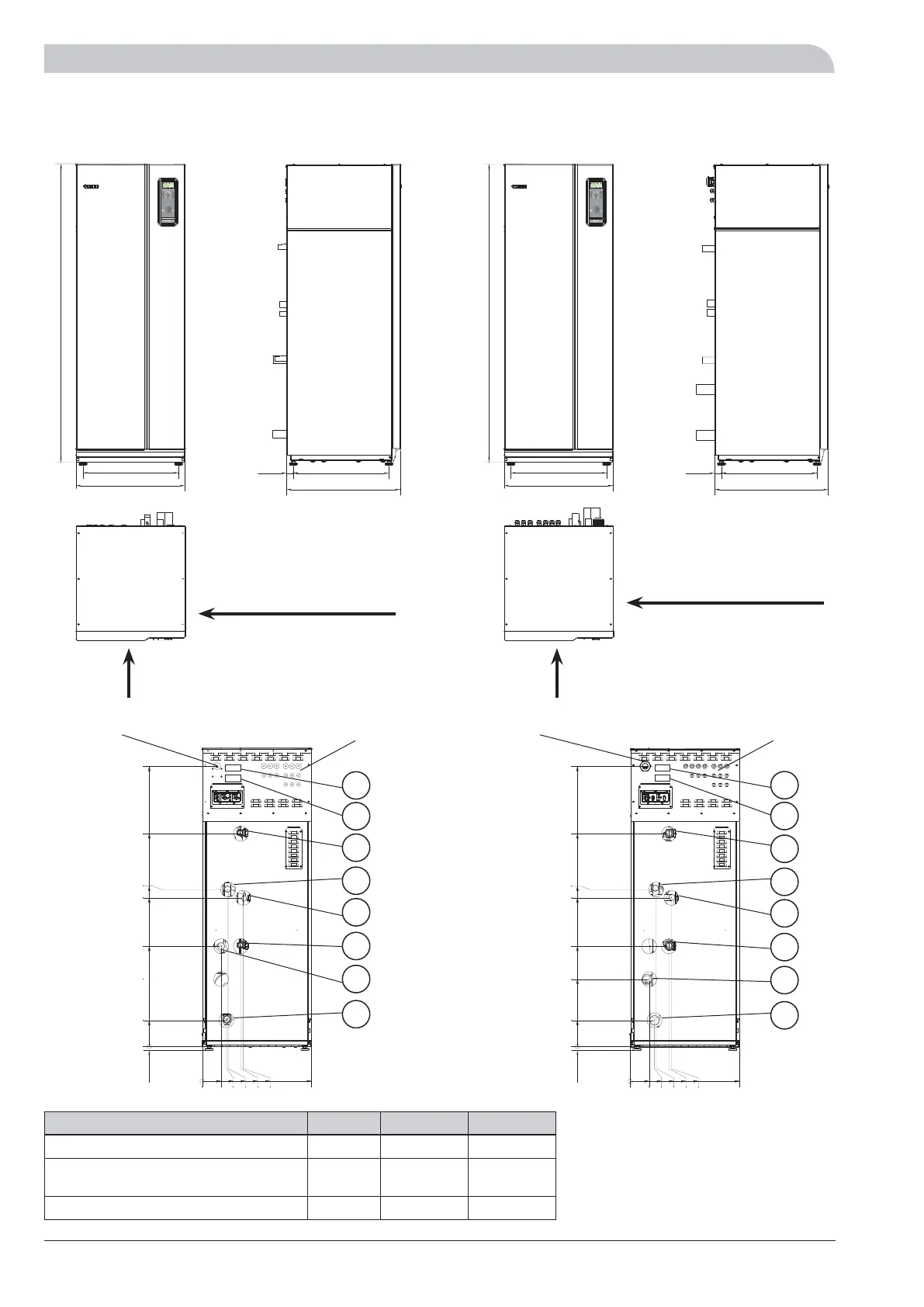

Dimensions and setting-out coordinates
22 – 40 kW 60 kW
An area of 800 mm is required
in front of the heat pump for
service work.
An area of 800 mm is required
in front of the heat pump for
service work.
Leave space free to the
right of the heat pump
for servicing.
Leave space free to the right
of the heat pump for servic-
ing. For changing the speed of
the brine pump among other
things.
Pipe connections ext ø 22 – 40 kW 60 kW
(4)/(5) Brine in/out (mm) 42 54
(70)/(72) Heating medium out/supply
(Cooling module A/B)
(mm) 28 35
(71)/(73) Heating medium return (mm) 35 35
Cable gland,
sensors
Cable gland,
sensors
A B I II
A B
13.43
1.0
P
50.0°C
Varmvattentemperatur
600
525
525
625
1625
37,5
A B I II
A B
13.43
1.0
P
50.0°C
Varmvattentemperatur
600
525
525
625
1625
37,5
Cable gland,
electrical
supply
Cable gland,
electrical
supply
30 - 50
0
140
365
545
810
855
1160
1530
0
140 225 210 135 105 600
30 - 50
0
140
545
810
855
1160
1530
0
140 225 210 135 105 600
72
72
73
73
71
71
5
5
70
70
4
4
103
95
103
95
