Nibe F1330 User Manual

73NIBE F1330
Miscellaneous

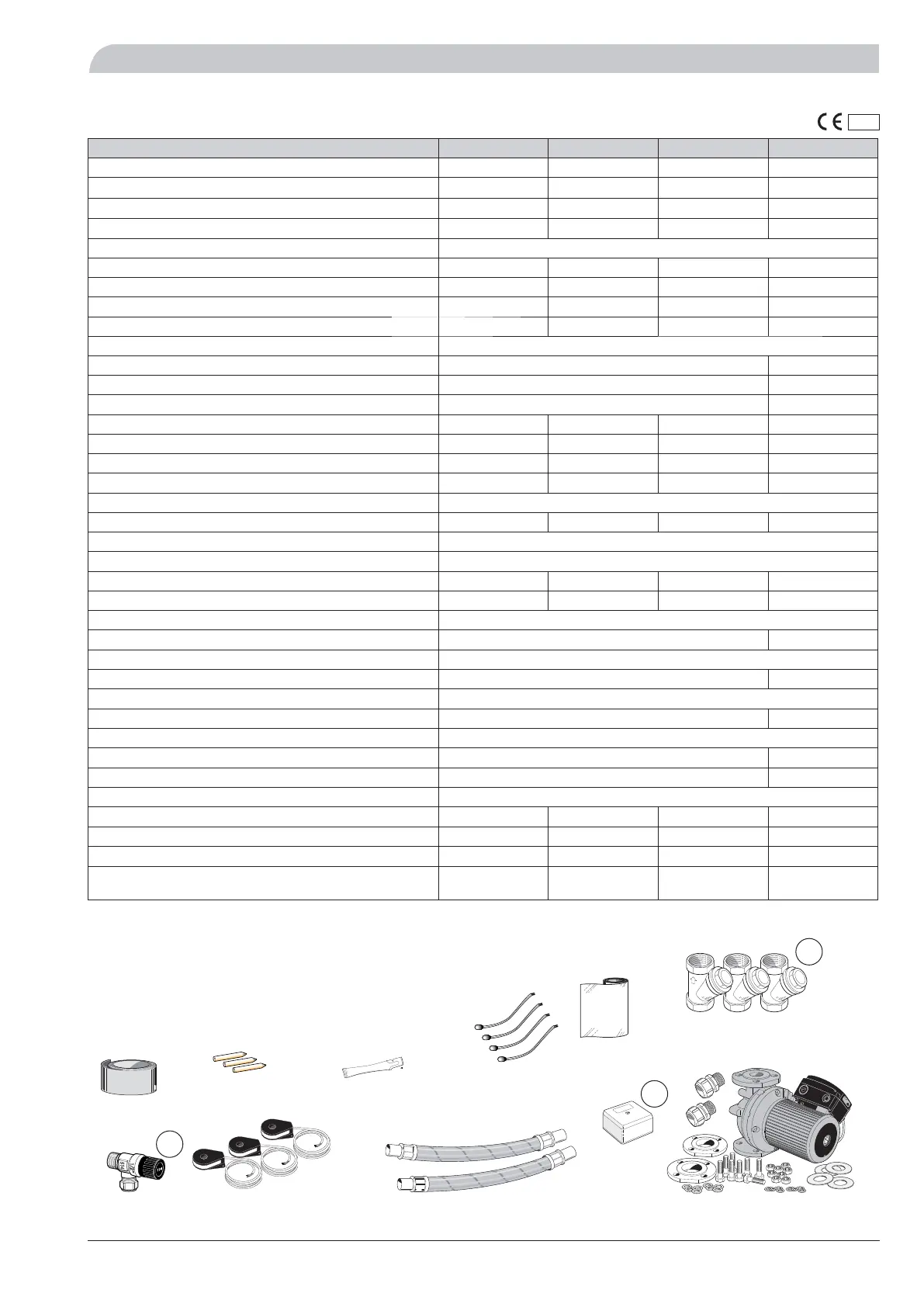

Technical data
Technical data
Type 22 30 40 60
Delivered/supplied power
1)
at 0/35 °C
2)
(kW) 23.1/4.8 30.8/6.8 39.0/9.0 60.6/13.8
Delivered/supplied power
1)
at 0/50 °C
2)
(kW) 21.6/6.3 29.5/8.9 37.2/11.1 54.8/17.0
Delivered/supplied power/COP at 0/35 °C
3)
(kW) 22.9/5.3/4.32 30.9/7.3/4.21 39.6/10.1/3.94 59.9/16.1/3.71
Delivered/supplied power/COP at 0/45 °C
3)
(kW) 21.8/6.4/3.41 29.8/8.6/3.47 37.7/11.5/3.29 56.4/17.9/3.16
Operating voltage (V) 3 x 400 + N + PE 50 Hz
Starting current withouth soft-start (A) - - - 90
Starting current with soft-start (A) 22 30 30 59
4)
Max operating current, compressor (A) 2 x 7.5 2 x 10.5 2 x 13.9 2 x 21.2
Fuse, HP only (motor characteristic/slow blow) (A) 25 35 35 50
Power, heating medium pump. single-phase (W) 2 x 170
Power, brine pump. single-phase (W) 890 1290
Connection brine ext Ø (mm) 42 54
Connection, heating medium ext Ø (mm) 2 x 28/35 2 x 35/35
Refrigerant quantity (R407C) (kg) 2 x 2.1 2 x 2.3 2 x 2.5 -
Refrigerant quantity (R410A) (kg) - - - 2 x 2.4
Brine flow (l/s) 1.30 1.48 1.94 2.78
Availabile pressure for collector system (kPa) 125 110 90 70
Max pressure brine system (bar) 3
Pressure drop, evaporator (kPa) 12 15 17 42
Operating temperature range collector system (°C) -5 – +20
Max pressure heating medium (bar) 6
Heating medium flow
in accordance with EN255 (l/s) (l/s) 2 x 0.26 2 x 0.36 2 x 0.45 2 x 0.65
Pressure drop condenser flow
in accordance with EN255 (l/s) (kPa) 2.2 2.8 4.3 6.5
Max temperature (flow line/return line) (°C) 65/58
Break value pressostat HP1 (bar) 29 42
Difference pressostat HP1 (bar) -7
Break value pressostat HP2 (bar)
32 45
Difference pressostat HP2 (bar) -7
Break value pressostat LP1 (bar) 1.5 3.5
Difference pressostat LP1 (bar) +1.5
Break value pressostat LP2 (bar)
0.3 1,5
Difference pressostat LP2 (bar) +0.7 +1,5
Enclosure class IP 21
Weight (kg) 315 338 356 350
5)
Part no. 065 100 065 101 065 102 065 103
Sound power level (L
WA
) in accordance with EN 12102 at 0/35 dB(A) 51.5 53 53 55
Sound pressure level (L
PA
) calculated values in accordance with EN
ISO 11203 at 0/35 and 1 m distance
dB(A) 36.5 37.5 37.5 40
1) Compressor power only.
2) Refers to the brine flow temperature/heat medium flow temperature in accordance with EN 255.
3) Refers to the brine flow temperature/heat medium flow temperature in accordance with EN 14511.
4) Accessories
5) External brine pump not included
IP 21
Enclosed kit
The enclosed kit is located behind the front service cover by
the upper module (for 60 kW it is located on top of the heat
pump).
Temperature sen-
sors with probes
LEK
Thermal insulating tape
LEK
Aluminium tape
2 x Hoses
heating medium flow ø35
Tubes for sensors
Heating pipe paste
Safety valve (3 bar),
collector side
LE
K
52
Particle filter
22 - 40 kW: (2 x R32, 1 x R40)
60 kW: (2 x R32, 1 x R50)
63
LEK
LEK
LEK
3 x current transformers
(not 60kW)
Brine pump with flanges,
gaskets and attachment (only 60kW)
LEK
LEK
LEK
NIB
E
A
B

Ute
te
m
p
e
ra
tu
r g
iv
a
r
e

O
u
td
oo
r
tem
p
era
tu
r
e
s
e
n
so
r

A
u
s
s
e
nte
m
p
e
ra
tu
r füh
ler

A
rtik
e
l 0
1
8
7
6
4
15
Outside sensor
