Nikon DTM-522 User Manual

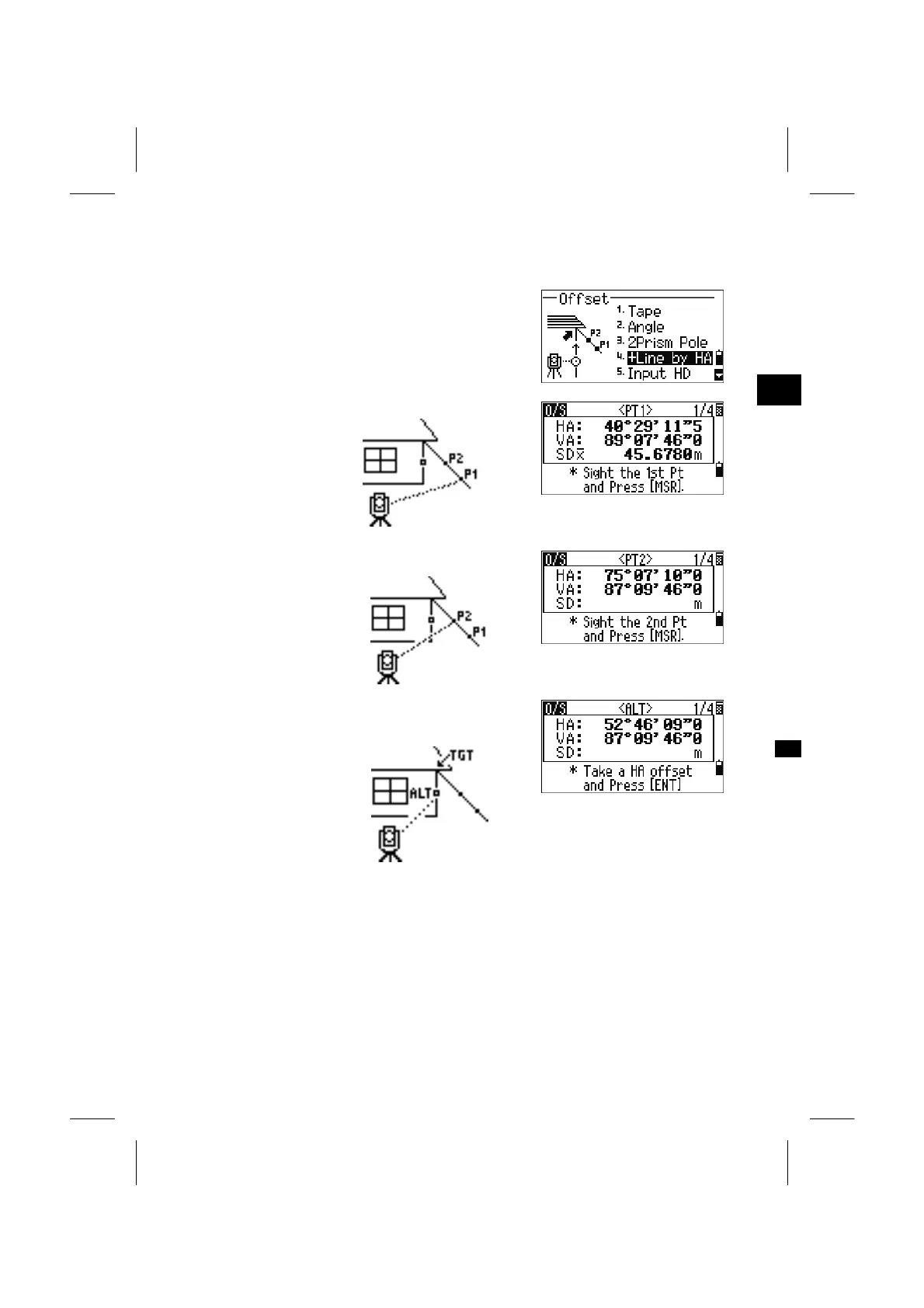

4. Line Extension by Horizontal Angle Offset
Press the [O/S] key on the BMS and select [4] to get
to the Line Extension (by HA) function.
3
O/S: 4. +Lin
e
Sight the first prism (or target) and press [MSR1] or
[MSR2].
It automatically goes
to the next screen.
Sight the second prism (or target) and press [MSR1]
or [MSR2].
It automatically goes
to the next screen.
Sight the alternative place which lays on the same
vertical line as the desired target point.
Pressing [ENT] calculates the coordinate and the
raw data of the TGT point.
3-74

Nikon DTM-522 Specifications

General

Model	DTM-522
Category	Total Station
Angle accuracy	5"
Display	Dual LCD
Telescope Magnification	30x
Operating Temperature	-20°C to +50°C
Angle measurement method	Absolute
Distance measurement range (with reflector)	3, 000 m (Single prism)
Maximum Range (without prism)	200m
