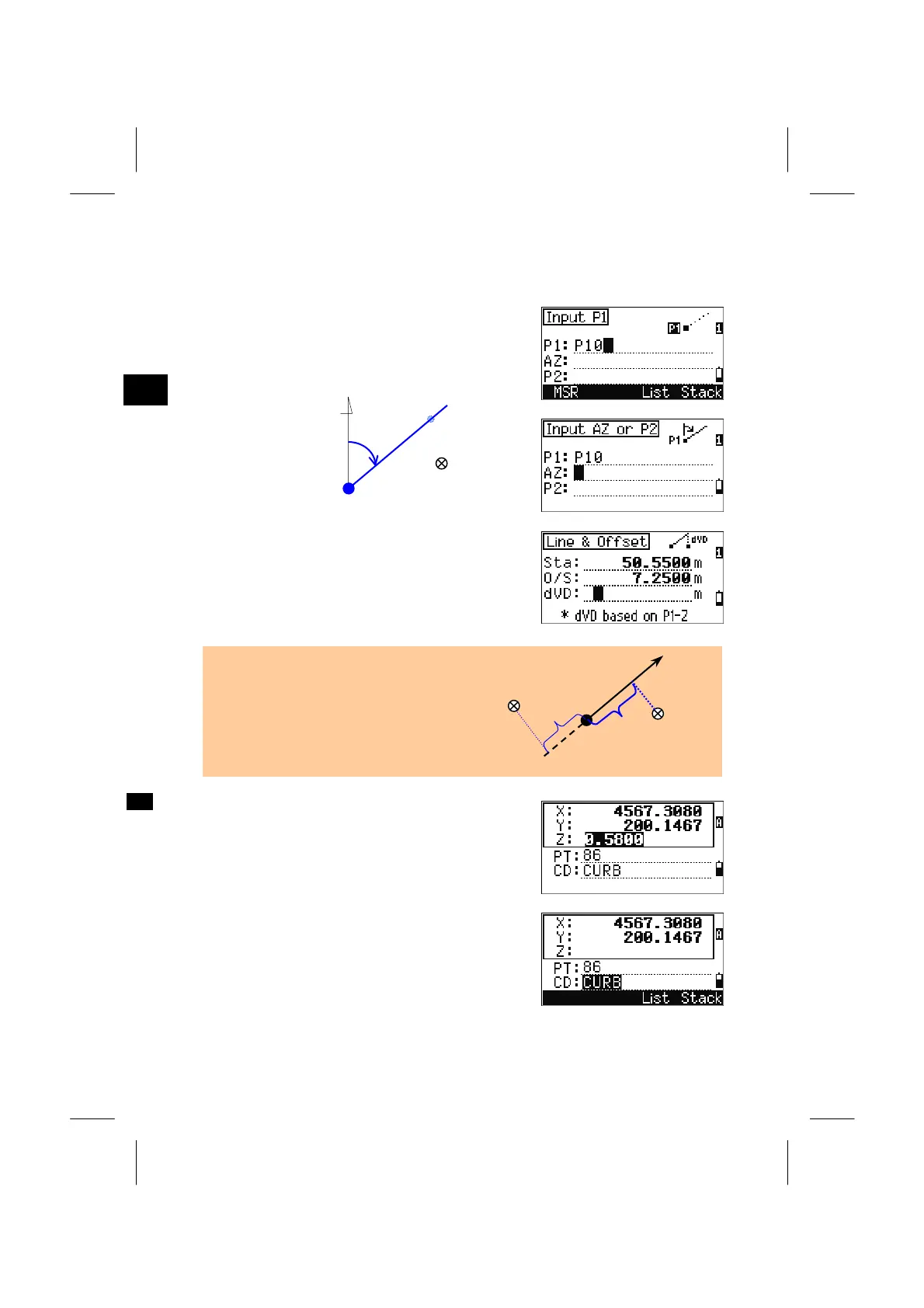

2-4. Line and Offset
Calculating Coordinates from Line and Offset
Press the [4] key in the COGO menu to enter the
Line & offset function.
Type in the base point (P1) and specify the azimuth
bearing by AZ or P2 (a second point on the line).
3
MENU: 2. Cogo
P1
A
Z
P
M
P2
Once the base point and bearing are established,
input the horizontal distance along the baseline (Sta),
the horizontal distance perpendicular to the line
(O/S) and the vertical distance (dVD).
P1
O/S
(
+
)
Sta
(
+
)
P
M’
O/S
(
-
)
Sta
(
-
)
P
M
• Negative value in “Sta” means the
opposite direction along the defined
bearing line.
• Negative “O/S” value is for the left-hand
side of the bearing line.
By pressing the [ENT] key at “dVD” field, the
coordinate of the desired point (P
M
) is calculated.
The Z-coordinate can be changed here.
Press the [ENT] key on the last line (CD field) to
record the point.
3-95
