3
S-O
HD= 50m 100m 150m 200
<4/2>
<3/2>
<2/2>
<1/2>
• For instance, in case you measure to the End-PT at 100m from the instrument and
input “Span total =2”, the following four points are calculated and can be staked.

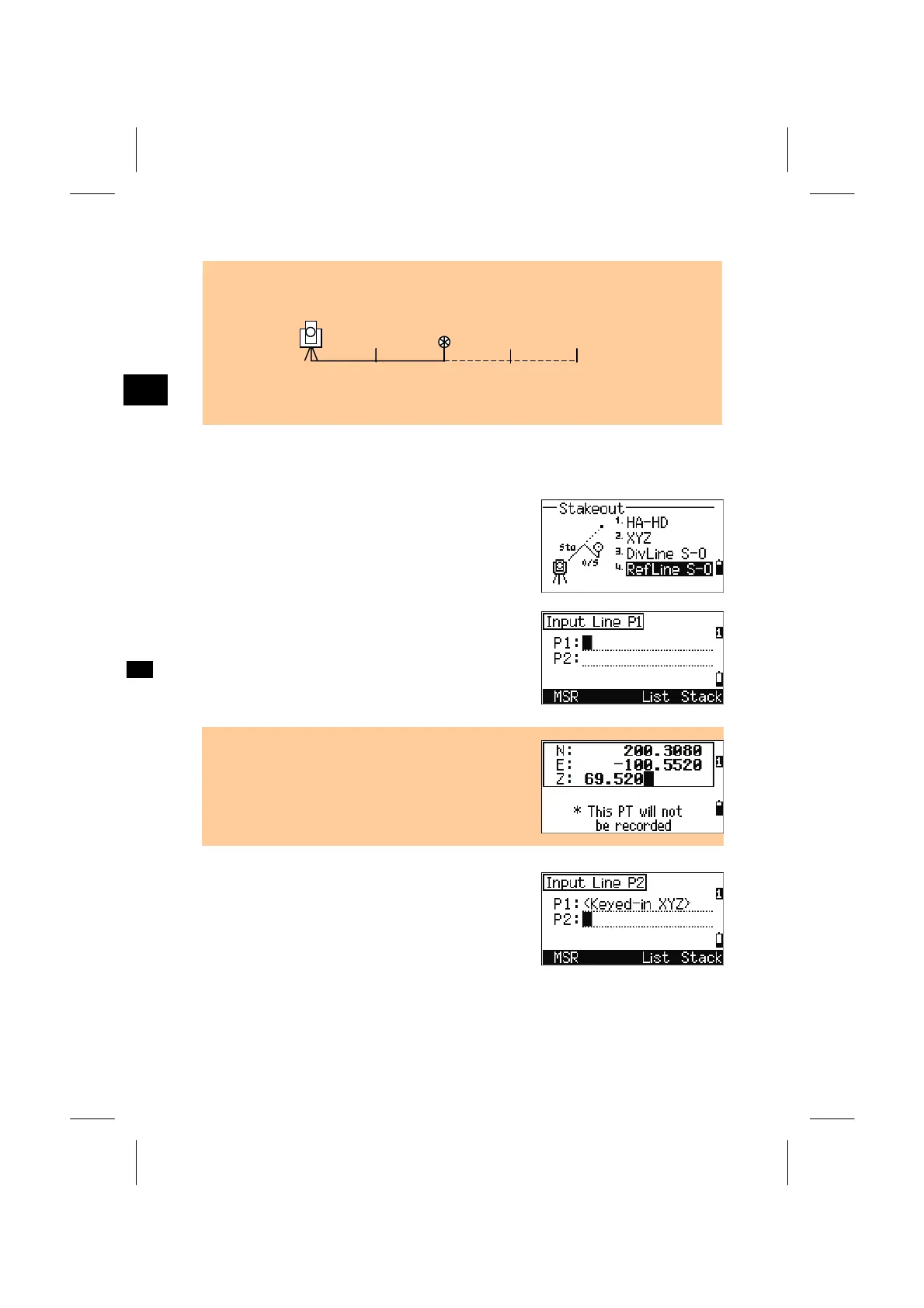

4. RefLine S-O
This function allows you to stakeout a point based
on the Sta, O/S and dZ to a specified line.
Input the first point (P1) of the Line.
• When the [ENT] key is pressed without inputting a
PT name, you can input a temporary coordinate
which isn’t recorded to the Job.
• Alternatively, a point can be measured by pressing
the [MSR] softkey to access a measuring display.
Input the second point (P2) of the Line.
3-53
